1T 310'177 Operating Manual Ecolino Erstellt: 01.05.2002 Rev.: C SL: 20'987 BJC
page 6
1. GENERAL

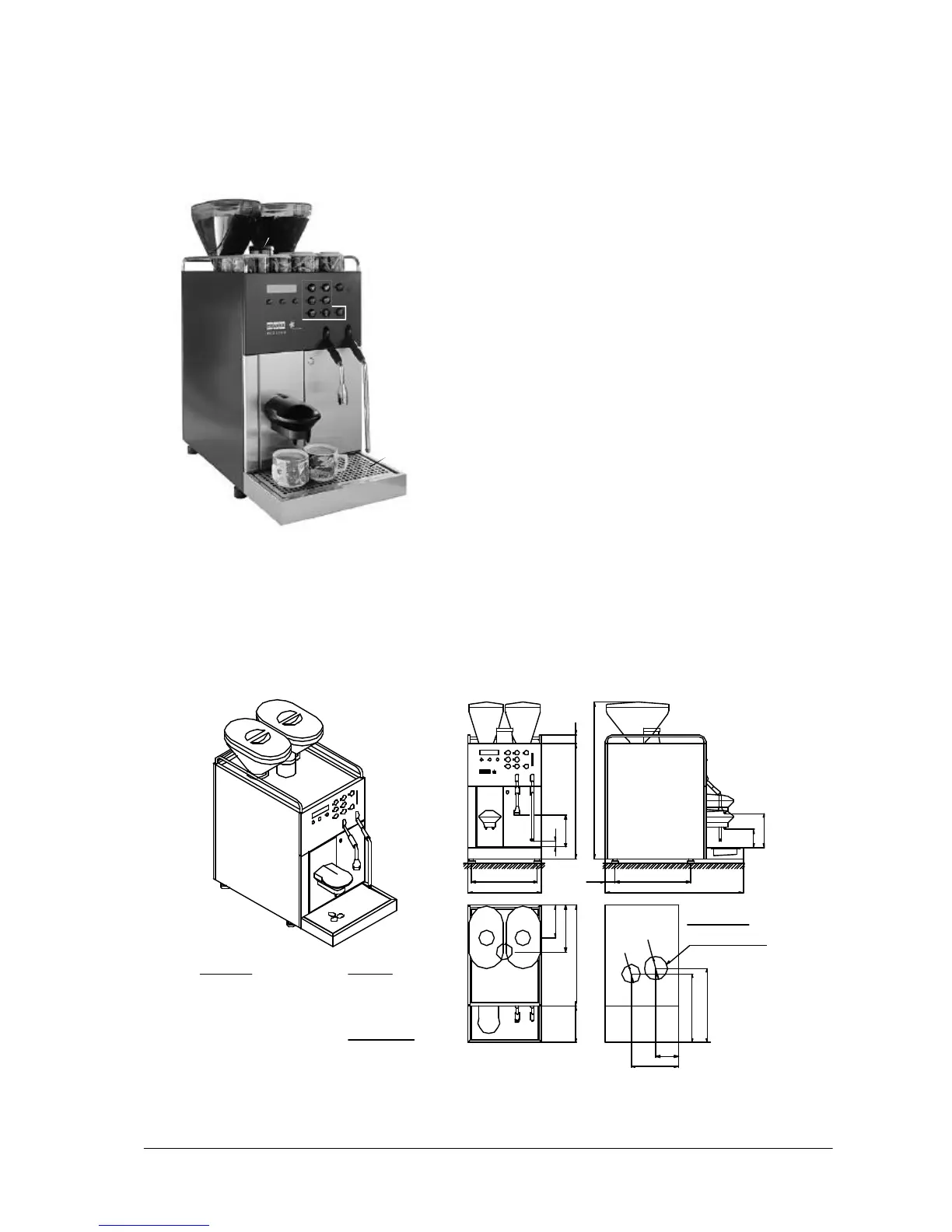

1.1.1 Installationplan
1. 1 Installation
205
440
25
140
143
43.5
???????
??????????
40
695
78
148
-Funnel Ø50 with SiphonRings G3/8", l = 1500 mm
with outlet
-Outlet tube not fixet
-Dia. of outlet line min.d = 1"
-Power P = 2200 W
Special voltage on request
50/60Hz
-230-240V~/10A
Power connection
Cable l = 2000 mm
As for the rest the local regulations are binding!
exterior screw thread
-Water pressure 80-600 kPa
-Cold water connection G3/8"
-PH ideal value 7
-Recommendet water hardness
7°German hardness,13° French hardn.
and filter
-Chlorine content max. 100mg/lt
-Stop valve with nonreturne valve
(0.8-6.0 bar)
Outlet tube Ø16 x 2000 mm
Water outletWater feeding
Flexibel metal tube with two coupling
Holes in counter
Option with chute for
coffee ground
300
315
210
96
160
320
286 330
600
Ø80
Ø120
500
1514
8
9
12
10
13
11
2
3
5 6
7
17
1
16
4
Legend
1 Control unit
2 E.S.M. key
3 Chip Card reader
4 Product keys
5 Clean and "-" key
6 Stop and "+" key
7 Shift key
8 Coffee outlet
9 Tea outlet
10 Steam outlet
11 Coffee grounds container door
12 Pushbutton
13 Drip grille
14 Bean container left
15 Bean container right (option left grinder)
16 Filling hopper
17 Display
