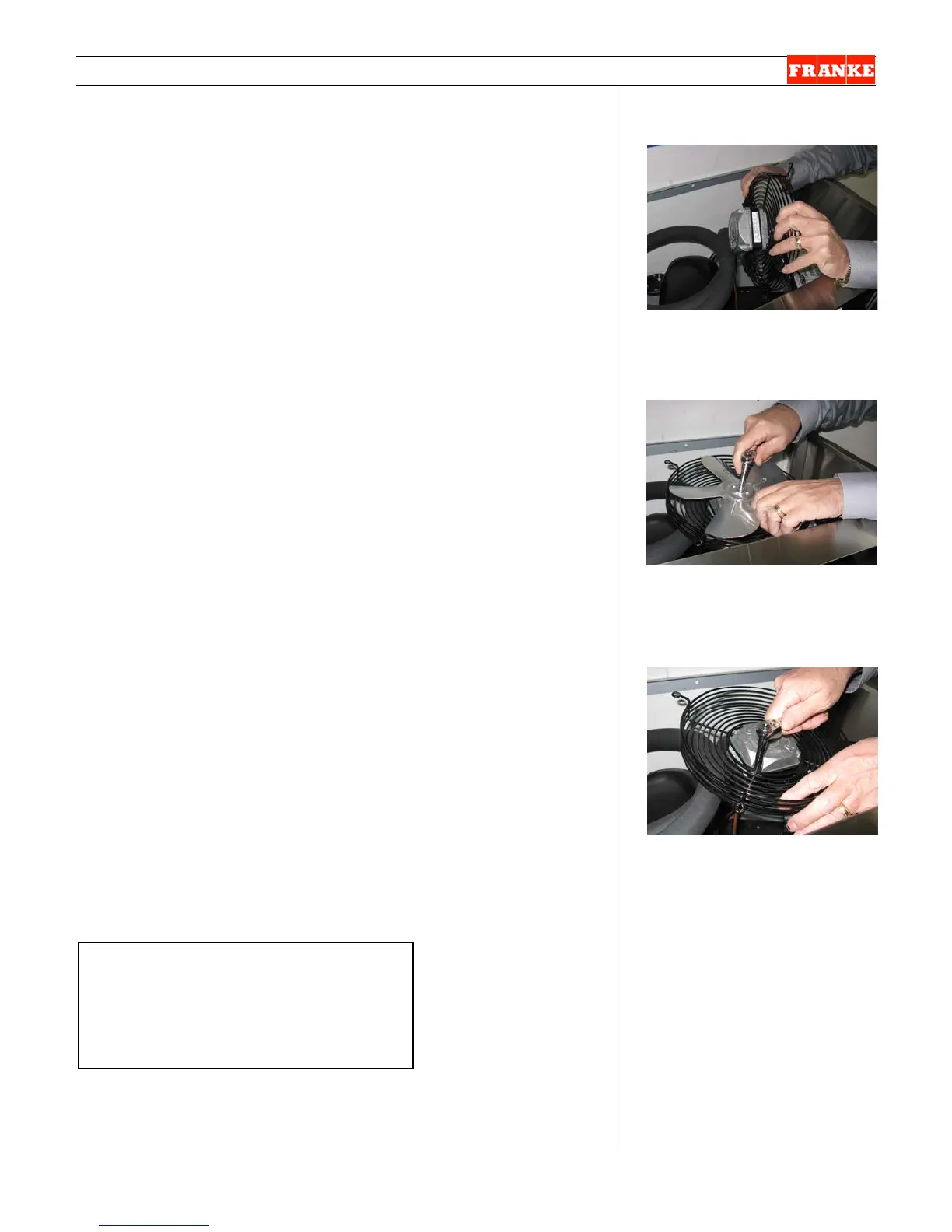

4.2 Condenser Fan Motor Replacement… Cont.
F3D3 & F3D3S Models ONLY
[Photo 5]
Remove motor/fan assembly
from condenser housing.
[Photo 6]
Remove fan blade from motor
shaft using 5/16” [8 mm] nut
driver or socket.
[Photo 7]
Remove fan guard from motor.
Rev. 1 6/2012

Tools Required:
 Medium Phillips screwdriver
 10 mm [3/8”] wrench or socket/driver
 8 mm [5/16”] wrench or socket/driver
 Needle nose pliers
