Franke F3D3 - Automation Assembly & Door Spring Sub-Assembly (All F3 D3 Versions)

F3D3 Series Service Manual Parts List & Component Diagrams / Section 1.5
Questions? Call Franke Technical Support Group For Your Area. Page 7 Copyright  2011 Franke, Inc. All rights reserved.
47
1 ea.
Terminal Block Module
3588203
3588203
48
2 ea.
End Stop Terminal Blocks
3588206
3588206

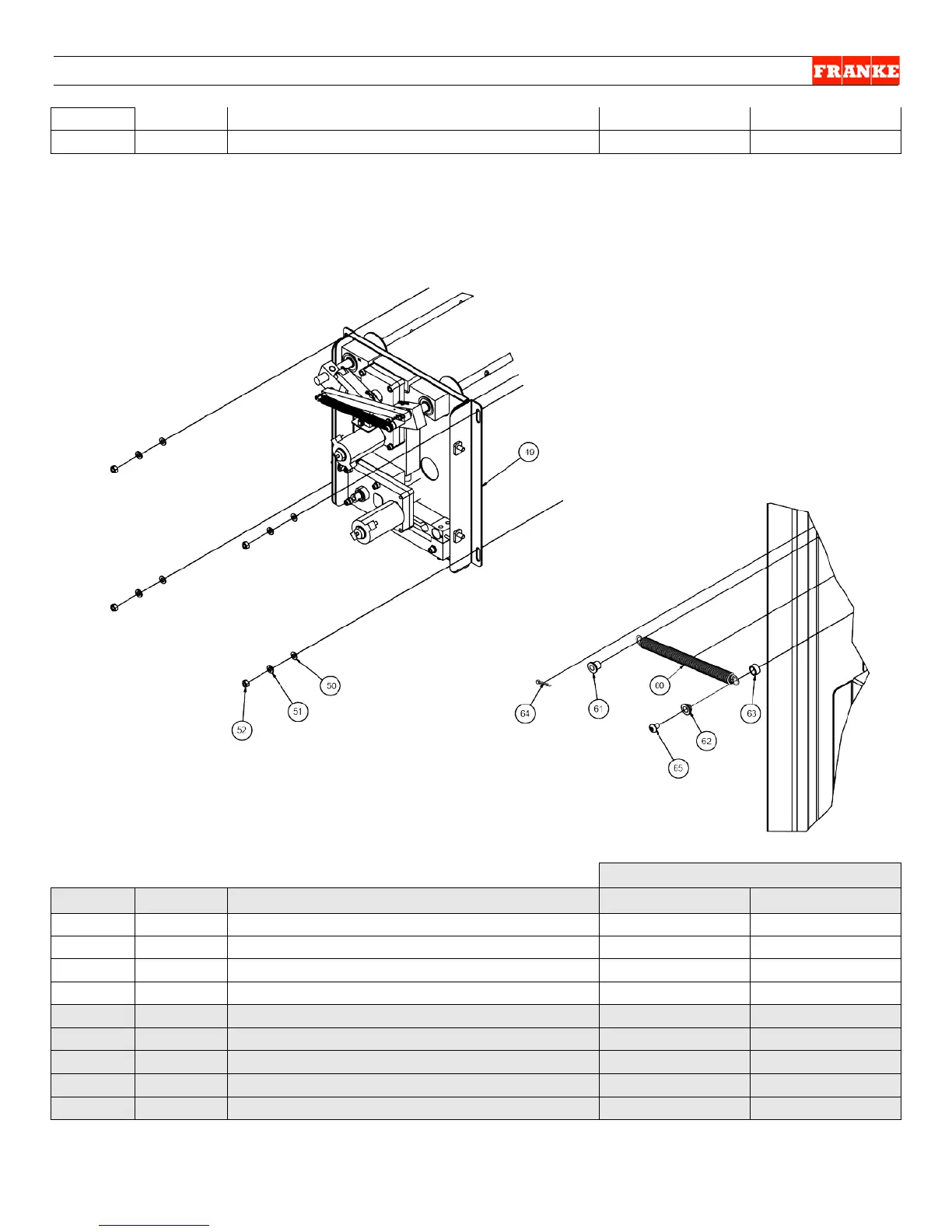

Automation Assembly & Door Spring Sub-Assembly (All F3D3 Versions)
Part Numbers
Key No.
Quantity
Description
120-Volt/60 Hz
230-Volt/50 Hz
49
1 ea.
Door Lift Assembly
18003834
18003834
50
4 ea.
Flat Washer, Stainless Steel (M6)
19001569
19001569
51
4 ea.
Lock Washer , Stainless Steel (M6)
19001570
19001570
52
4 ea.
Nut , Stainless Steel (M6)
19000492
19000492
60*
1 ea.
Spring, Extension
19000213
19000213
61
1 ea.
Bushing, Bronze (9.4 mm long)
19003681 19003681
62
1 ea.
Bushing, Bronze (6.3 mm long)
19003680
19003680
63
1 ea.
Bushing, Plastic (5.6 mm)
19003682
19003682
64
1 ea.
Cotter Pin, Brass
19002985
19002985
