F3D3 Series Service Manual Parts Replacement / Section 2.11
Questions? Call Franke Technical Support Group For Your Area. Copyright  2012 Franke, Inc. All rights reserved.

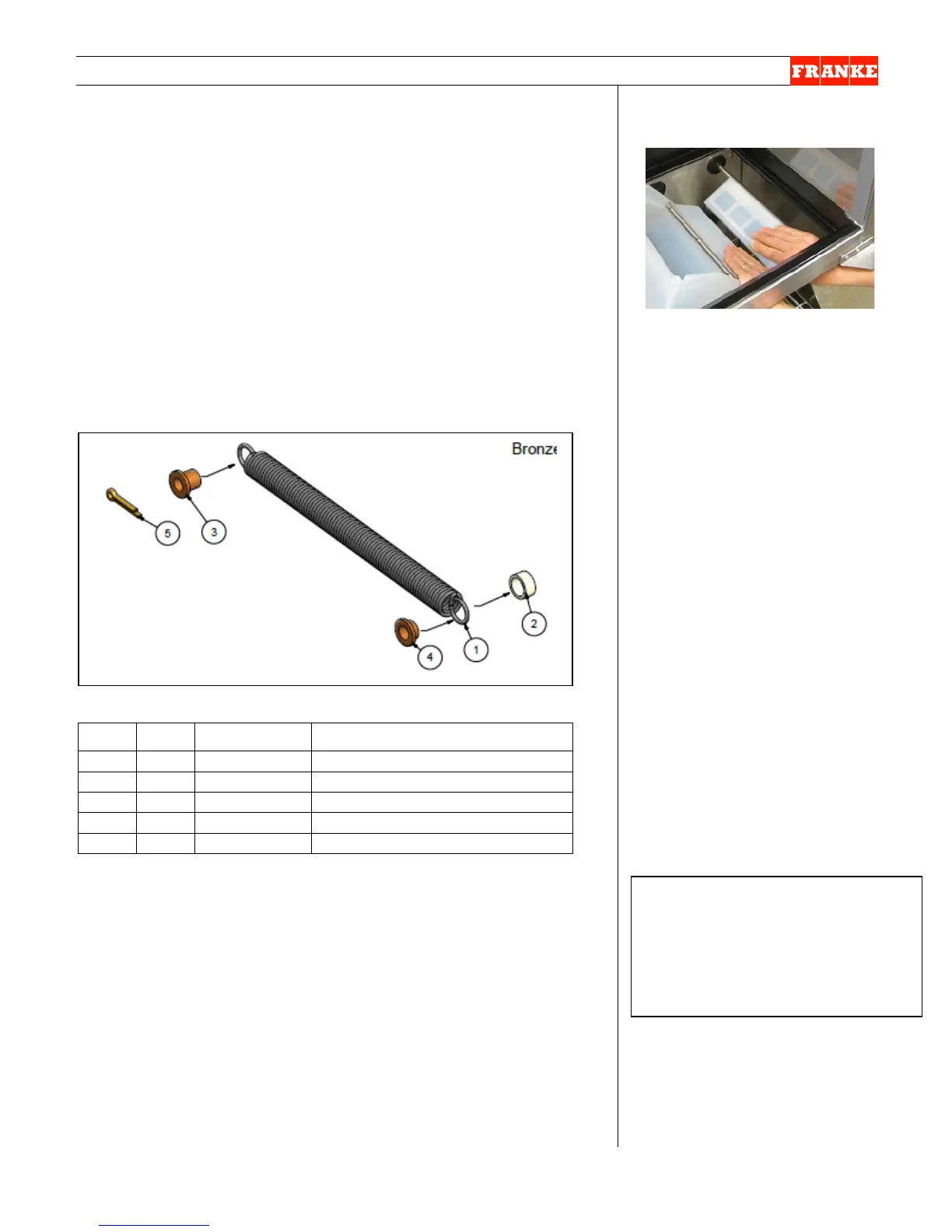

2.12 Door-Closing Spring Replacement
[Kit Part No. 19003794] Continued…
19) If unit properly dispenses fries, replacement spring is
working properly.
20) Re-hang and secure rear service access panel and
return Dispenser to normal operating position
Replacement Spring Kit
[P/N: 19003794]
Key
Qty.
Part No.
Description
1
1
19000213
Spring, Extension 13 mm OD
2
1
19003682
Bushing, Plastic
3
1
19003681
Bushing, Bronze – 9.4 mm
4
1
19003680
Bushing, Bronze – 6.3 mm
5
1
19002985
Cotter Pin, Brass
[Photo 5] - From front
Test new spring by manually
opening product doors against
spring tension.
Rev. 1 6/2012

Tools Required:
 Medium Phillips screwdriver
 8 mm [5/16”] box wrench or
socket
 3 mm [1/8”] Allen/Hex Wrench
 Needle-nose pliers
