EN
7
7

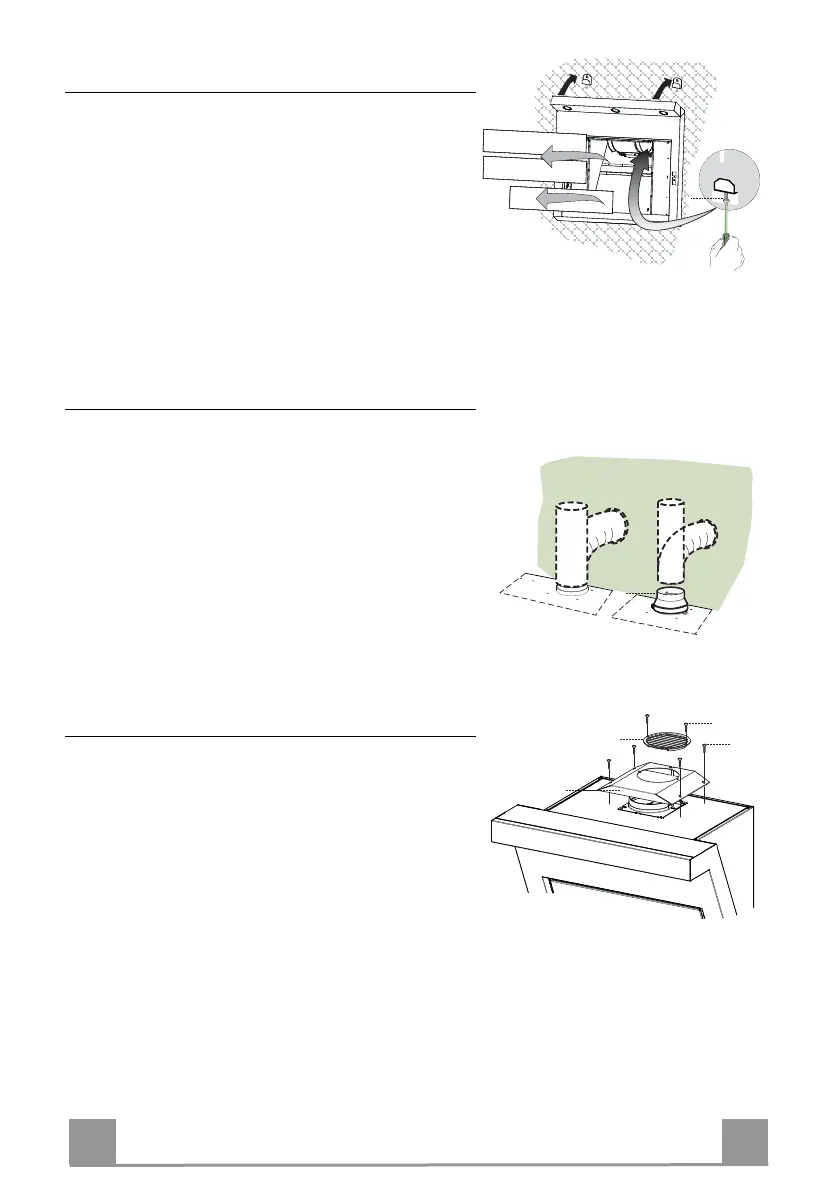

Mounting of the hood body
• Remove the comfort panels pulling them slightly
downwards.
• Remove the grease filters.
• Adjust slightly the Vr screws of the brackets 11a.
• Hang the hood body on the brackets 11a.
• It is possible to level the hood body, from inside the
hood, by adjusting the Vr screws.
• Tighten the security screws 11.
Vr
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid pipe ø 150
or 120 mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert
the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Remove any activated charcoal filters.
ø 150
9
ø 120
RECYCLING VERSION AIR OUTLET
To install the hood in recycling version, the optional
charcoal filter kit must be purchased.
• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using four
screws 12c (2.9 x 12.5).
• Fix the air outlet grid 8 on the recirculation air outlet
using the 2 screws 12d (2,9 x 9,5) provided.
16
12c
12d
8
