Franke FDPA 904 XS ECS User Manual

EN
8
8

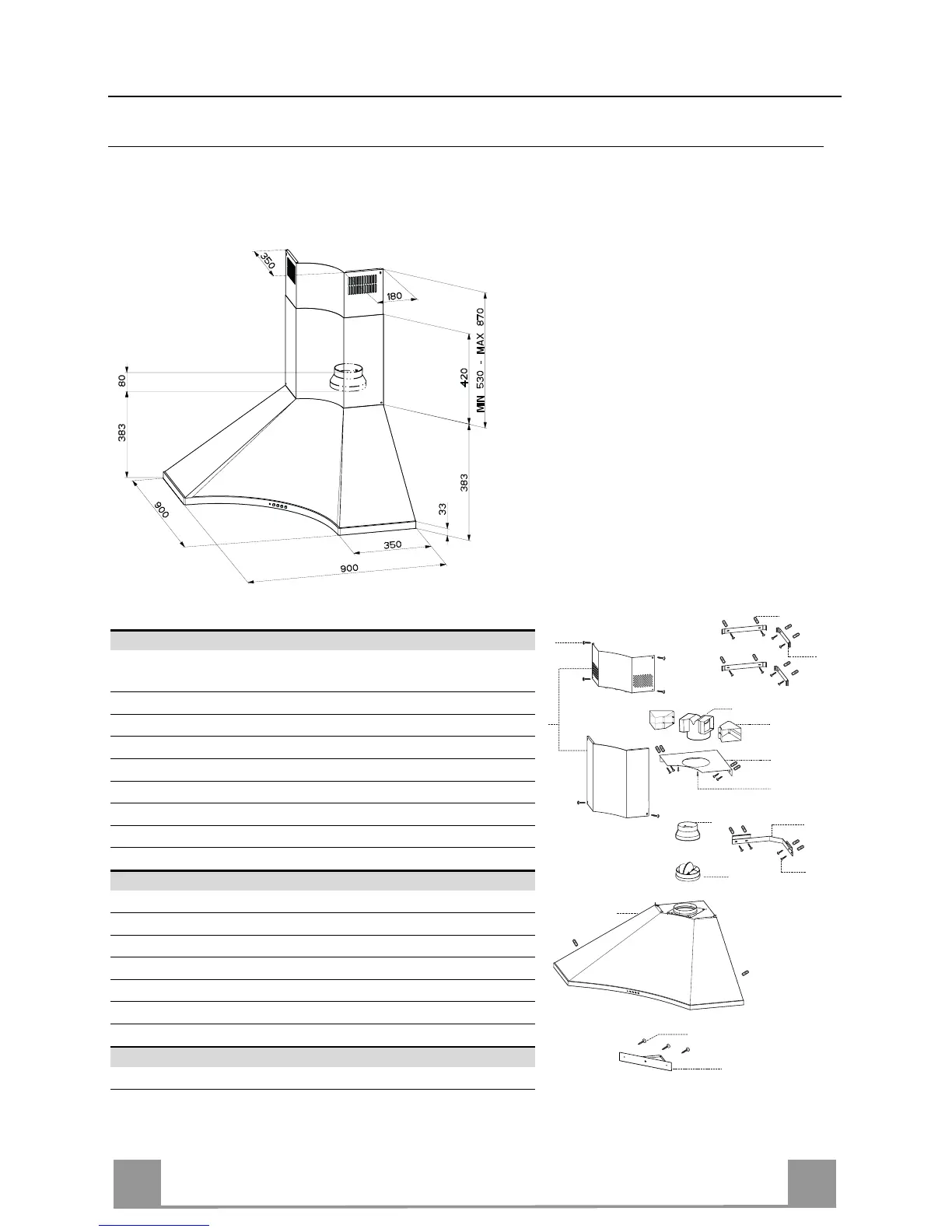

CHARACTERISTICS
Dimensions
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
2 1 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
9 1 Reducer Flange ø 150-120 mm
10 1 Damper ø 150
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
30 1 Lower corner spacer
Ref. Q.ty Installation Components
7.1 1 Hood Body Fixing Bracket
7.2.1 4 Upper Chimney Section Fixing Brackets
7.3 1 Air Outlet Connection Support
11 18 Wall Plugs
12a 18 Screws 4,2 x 44,4
12c 6 Screws 2,9 x 9,5
12e 6 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
7.2.1
2.1
2.2
12c
2
9
7.1
12a
11
7.3
12e
1
15
14.1
12e
10
30
