EASY CLEANING
TM

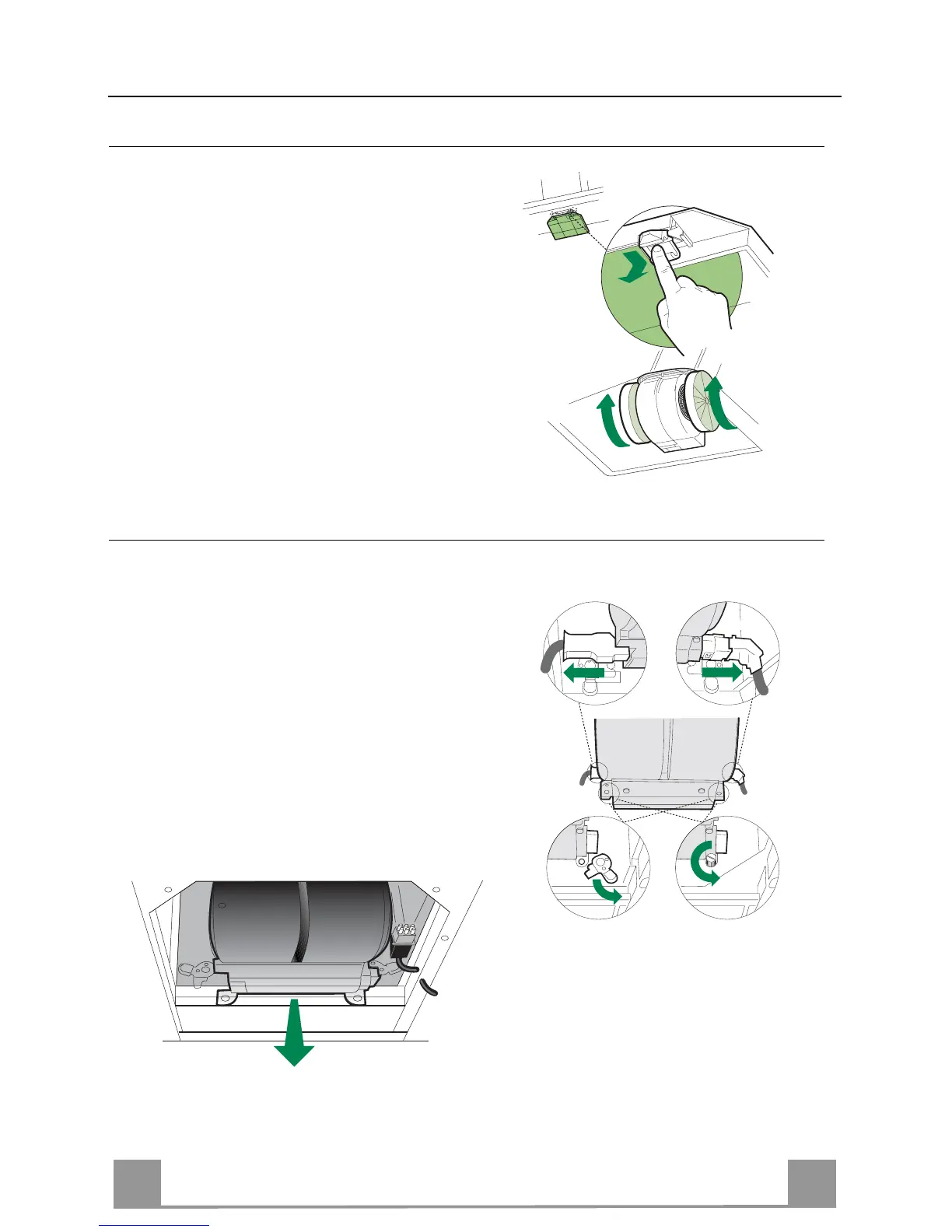

Removing the Grease Filters
Before carrying out Maintenance on the E-
ASY CLEANING Suction Unit:
• Disconnect the hood by switching off the
twopole switch on the mains power supply
line, or by switching off the main power
switch.
• Remove the grease filters from the hood.
• If the hood is of the recirculation type, re-
move the odour filters:
• For hoods with a flat cartridge (A): turn the
fastening elements provided;
• For hoods with a bayonet cartridge (B):
turn as indicated and extract.
Disconnecting the EASY CLEANING Suction Unit
• Disconnect the power connector Ca and the
control and lighting connector Cmd on the
sides of the unit.
• For wall-mounted hoods and free-standing
hoods with square chimney, turn the levers
Lb locking the suction unit, so that they
disconnect from the pins.
• For free-standing hoods with round chim-
ney, unscrew the plugs Vb locking the suc-
tion unit.
• Pull the suction unit forwards so that it un-
hooks from the support pins, and remove it
downwards through the air outlet.
CmdCa
Lb
Vb
A
