INSTALLATION
Wall drilling and bracket fixing

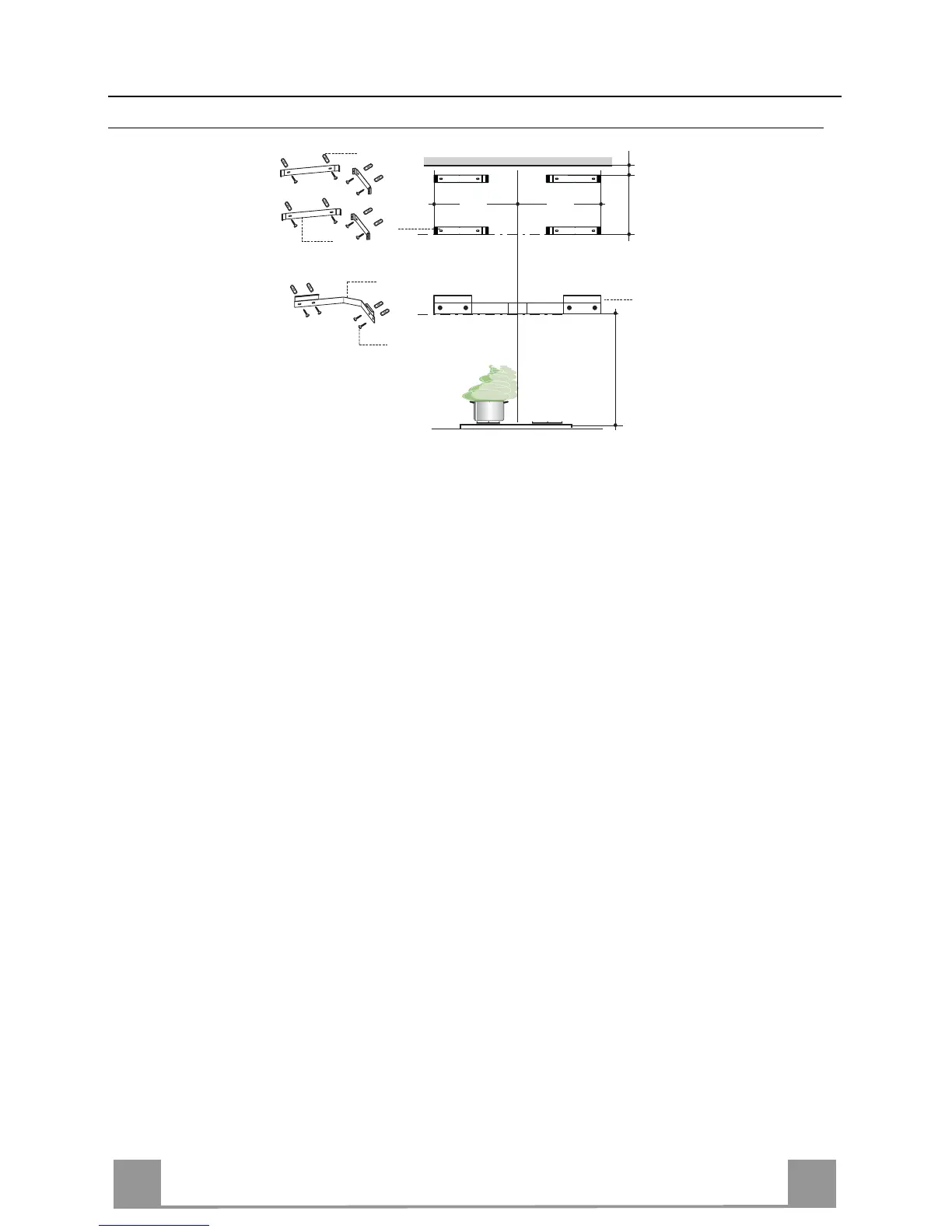

• Rest Bracket 7.1 as shown, 960 mm above the cooker top, taking care that the bracket is le-
vel.
• Mark the wall at the centres of the holes in the bracket.
• Rest a Bracket 7.2.1 as shown, 1-2 mm from the ceiling or top limit, and 347 mm from the
corner of the wall.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the
upper
chimney section supplied), and 347 mm from the corner of the wall.
• Repeat this operation on the other side, checking that it is level.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the brackets and the Support using the 12a (4,2 x 44,4) screws supplied.
To install the hood in recycling version it is necessary to follow the instructions described
in the part concerning Recirculation version Air Outlet.
960
7.1
7.2.1
X
347 347
1÷2
7.1
12a
11
7.2.1
