Franke HCMF-30P - Reversing the Front Loading Door; Door Hinge Removal

819011739 - Rev. A - November 30, 2018
INSTALLATION
Reversing the Front Loading Door
CAUTION
RISK OF PERSONAL INJURY
Use caution when removing door to avoid dropping heavy components onto feet.
The HCMF-P front loading door is field-reversible and designed for right- or left-handed swing. Use the following
procedure to reverse the door if required due to installation location.

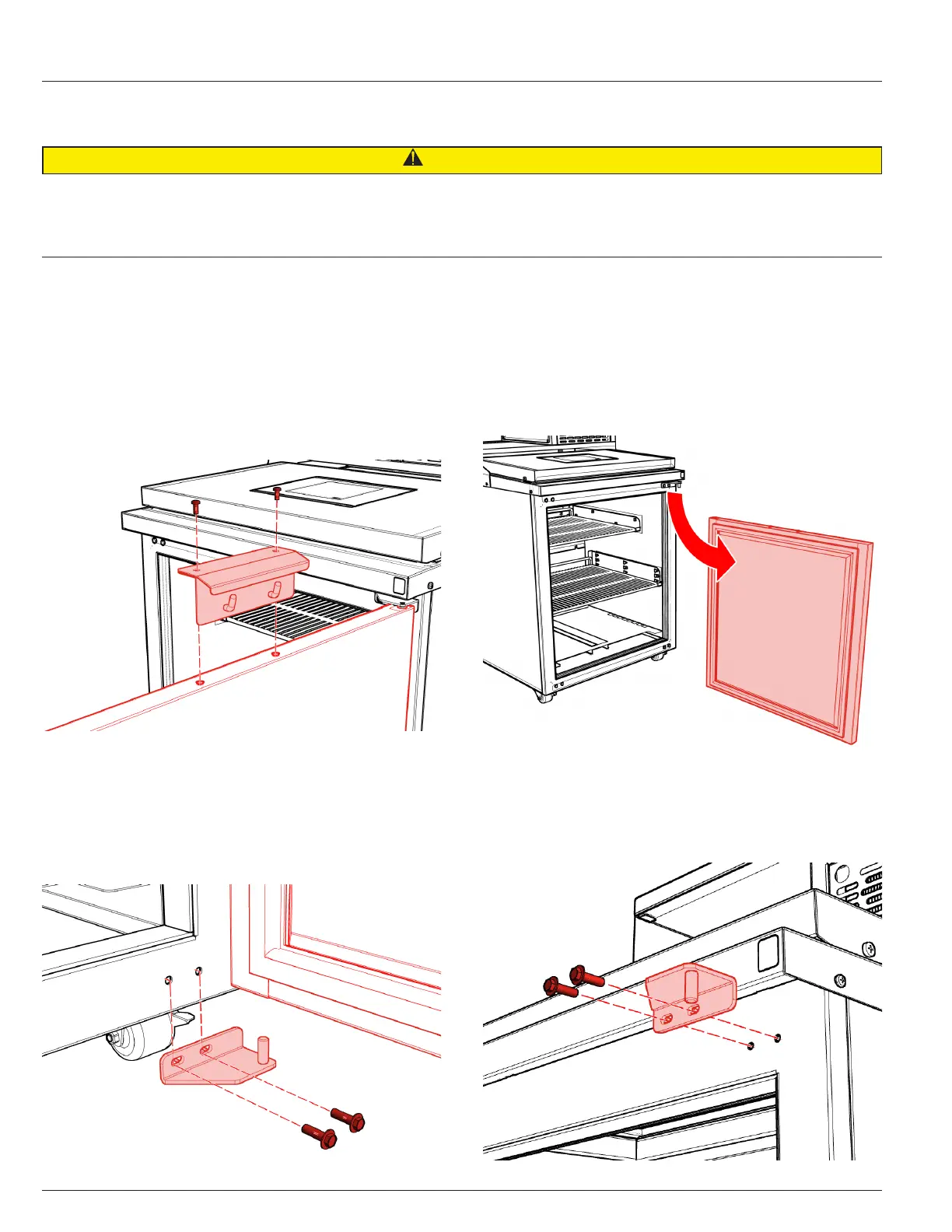

STEP 1
Remove two (2) screws fastening glove bracket to top
of door. Set bracket aside, and reinstall screws into
open holes in door (Fig. 8).
Fig. 8
STEP 2
Hold front-loading door open. Remove two (2) screws
fastening bottom-right hinge to front of unit (Fig. 9).
Reinstall screws into empty holes.
Fig. 9
STEP 3
Remove front-loading door from top-right hinge (Fig.
10). Set door aside for later re-installation.
Fig. 10
STEP 4
Remove two (2) screws fastening top-right hinge to
front of unit (Fig. 11). Reinstall screws into empty holes.
Fig. 11
