FIGURE A
FIGURE D
FIGURE B
FIGURE C

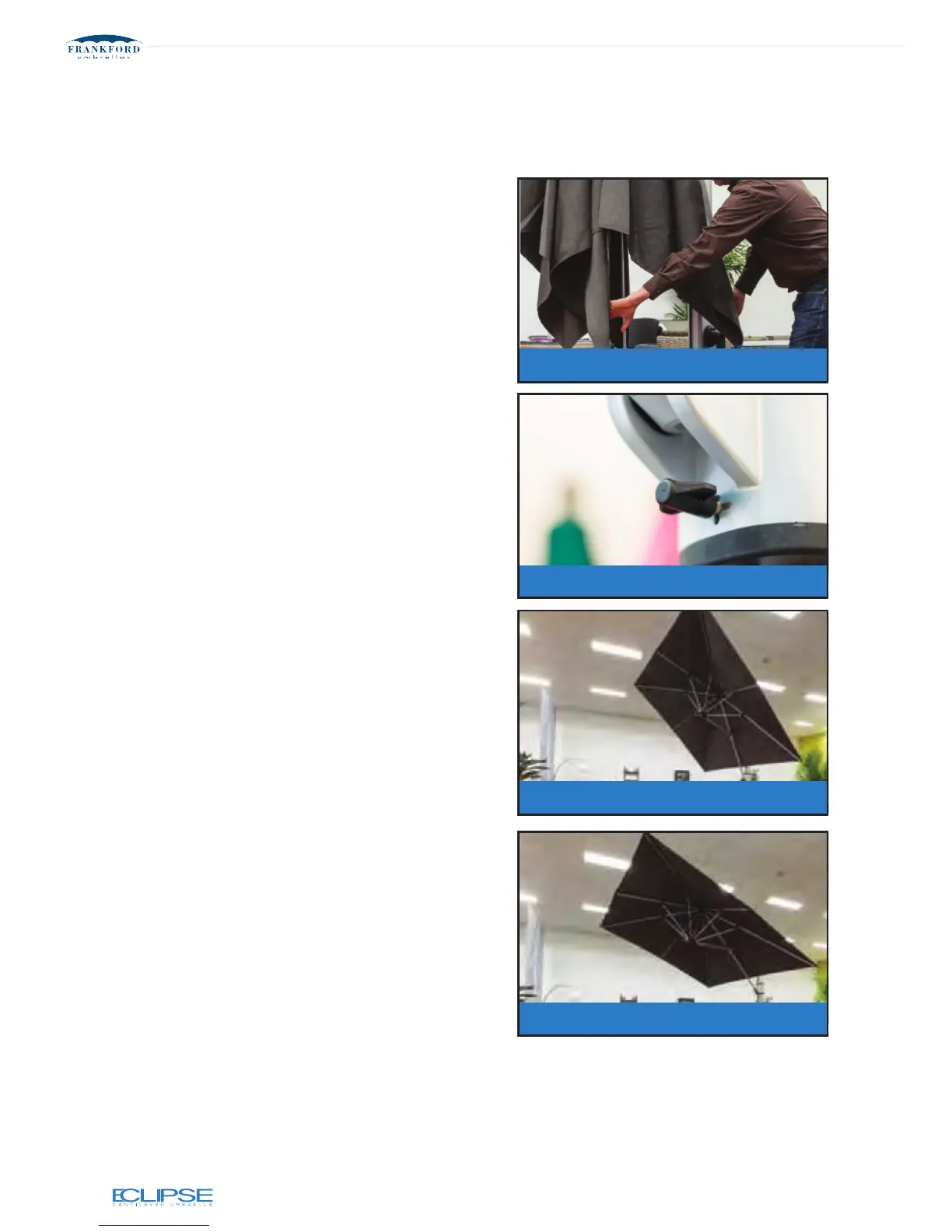

TO TILT THE CANOPY
• Start with the umbrella almost completely
closed (i.e. wind down to almost folded
position - Figure A). Engage the slider car
wing shaped inclination stop pin (20) by
turning it to the horizontal position. You will
feel it spring into the mast
• (Figure B).
• Wind the winder handle (30) in a clock-
wise direction. The slider car inclination
stop pin (20) will engage in a pre-drilled
hole in the mast.
• Continue winding and the canopy will
open fully in the desired position. (Approx.
30° of tilt - Figure C)
• To progress to the second tilt position, unwind
the winder handle several full revolutions to
release tension until the canopy starts to sag.
NOTE: There are 2 positions of tilt in
each of the Eclipse models. Additional
tilt position holes may be drilled but this
should be done with extreme caution as
there is a winder mechanism inside the
mast.
• Pull the slider car wing shaped inclination
stop pin (20) out and continue to wind
the winder handle clock-wise. As the slider
car (19) begins to ascend, release the
wing shaped inclination stop pin still in the
horizontal position.
• Continue to wind the umbrella open and
inclination stop pin will engage in the next
pre-drilled hole. This is tilt position 2 (approx.
60° of tilt - Figure D).
9 |
