INSTALLING YOUR WIND STABILIZER KIT
Your Eclipse Cantilever Umbrella comes with a
Wind Stabilizer Kit to assist its performance in a
wider range of wind conditions. This Stabilizer Kit
consists of two (joined) stabilizer bars.

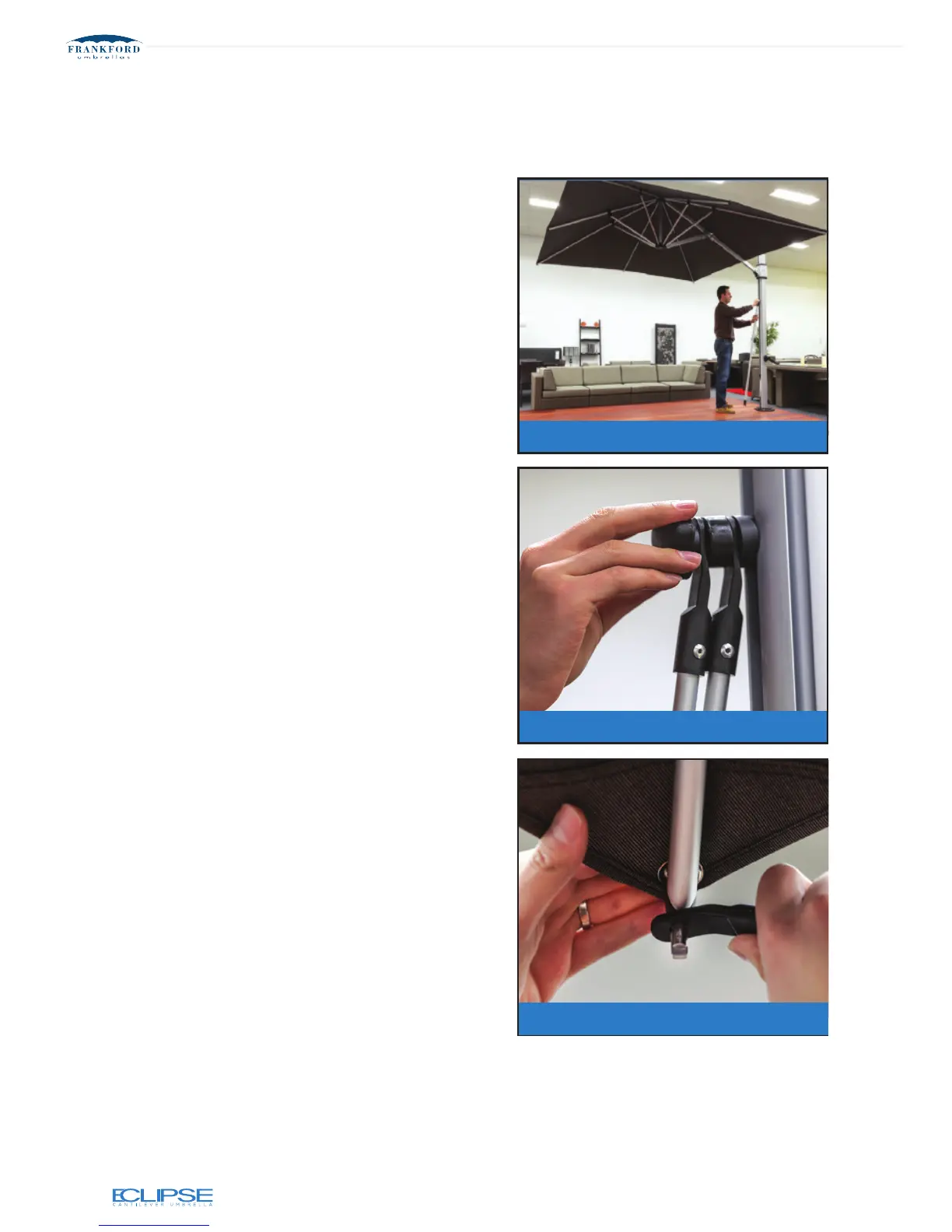

• Slide the stay block (38) up the internal
mast housing to a height roughly the
same as the height of the stabilizer bars
when standing vertical (Figure A).
• Attach the threaded stainless screw
with the two aluminum stays attached
to the stay block and tighten the screw
sufficiently for the stay block to remain
in position without sliding down the
mast (Figure B).
• Swing either aluminum stay arm off the
ground and attach to the umbrella using the
“T-Lock” or Star Screw. Position the T-Lock
vertical and slide the hole in the plastic
fitting at the end of the stabilizer bar over
(Figure C). Set the T-Lock to horizontal to
lock the bar in place (Figure C).
NOTE: The Eclipse Cantilever Umbrella
does not need to fitted with the Stabilizer
Kit for normal everyday operation in calm
to moderate wind conditions. However for
higher wind strengths or for commercial
applications it is advised to use.
To Install Stabilizer Kit:
FIGURE C
FIGURE A
FIGURE B
11 |
