Your Eclipse Cantilever Umbrella is delivered fully assembled. There are three
different ways to install your Eclipse Cantilever Umbrella:
1. Installing on a wooden deck using a Deck Plate.
2. Installing on an existing concrete slab or pavers using a Deck Plate.
3. Installing into the ground (i.e. into a lawn, garden or paved patio) using the
In-Ground fitting.
Prior to installing your installation fittings please read the important
information below.
Your Eclipse Cantilever Umbrella can rotate 360° and be locked in 16 different
locations. This means that every 22.5° of rotation there is provision to lock the
umbrella. In most situations there will be a preferred area over which you will
predominantly want shade. To ensure you have the ability to shade your
preferred location you must have one of the 22.5° rotation locking holes in line
with this position. Please have a look at the underside of your spigot to see
these 16 locking holes.
There is a locking hole in line with each of the 4 spigot bolt holes in the spigot
plate. There are also three intermediate holes between each of the spigot bolt
holes and these are marked with an indicator mark on the top of the spigot
plate.
To point your umbrella in the perfect direction or to have a symmetrical
installation (especially when installing square umbrellas) it is very important to
make sure you install the Base Plate or In-Ground fitting square to the
direction that you predominantly want the umbrella to point.
installation procedure
There are three different ways to install your Eclipse umbrella. Select the
installation method from the following pages for the relevant instructions.

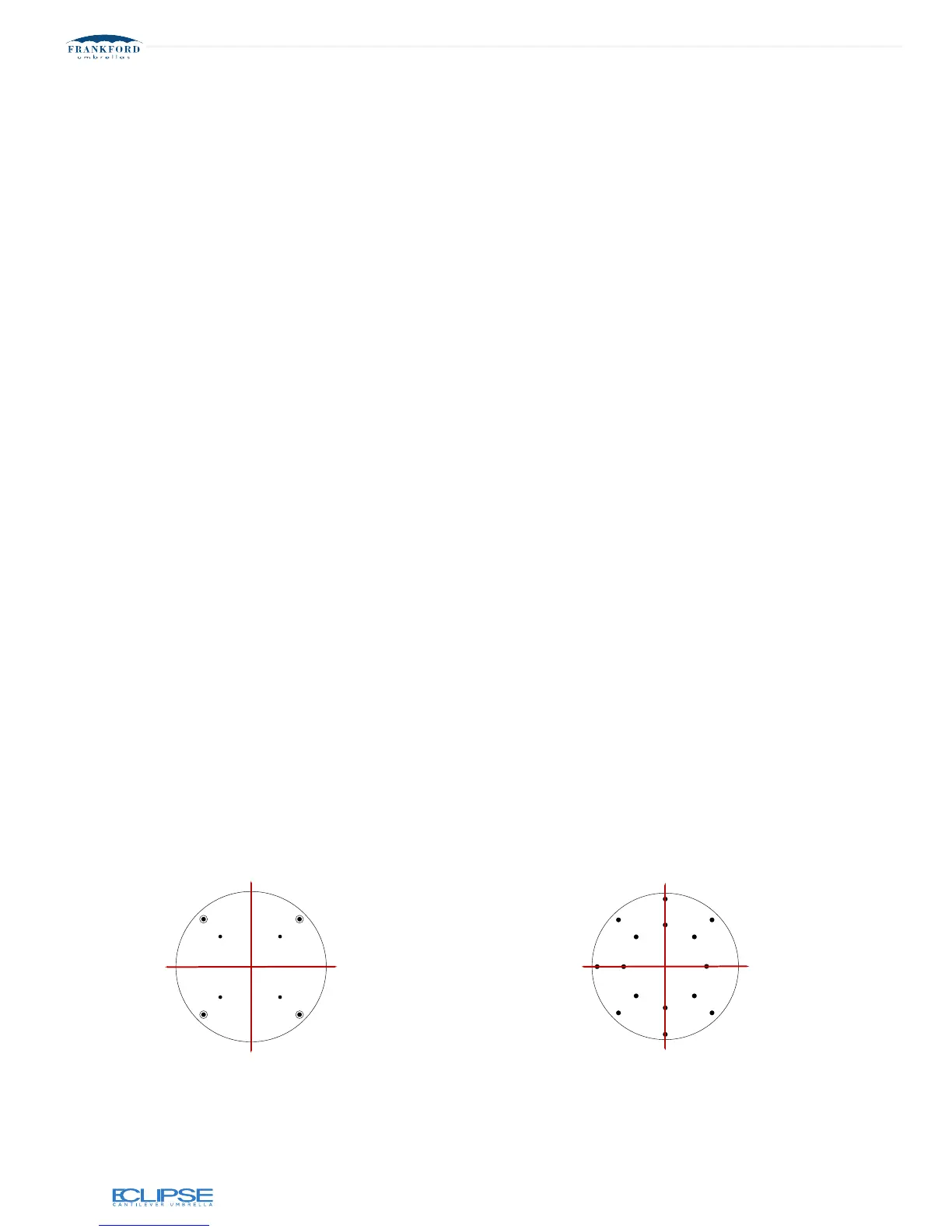

PREFERRED STARTING POSITIONS
ECLIPSE TO POINT
DECK PLATE IN-GROUND MOUNT
13 |
