FIGURE C
FIGURE A

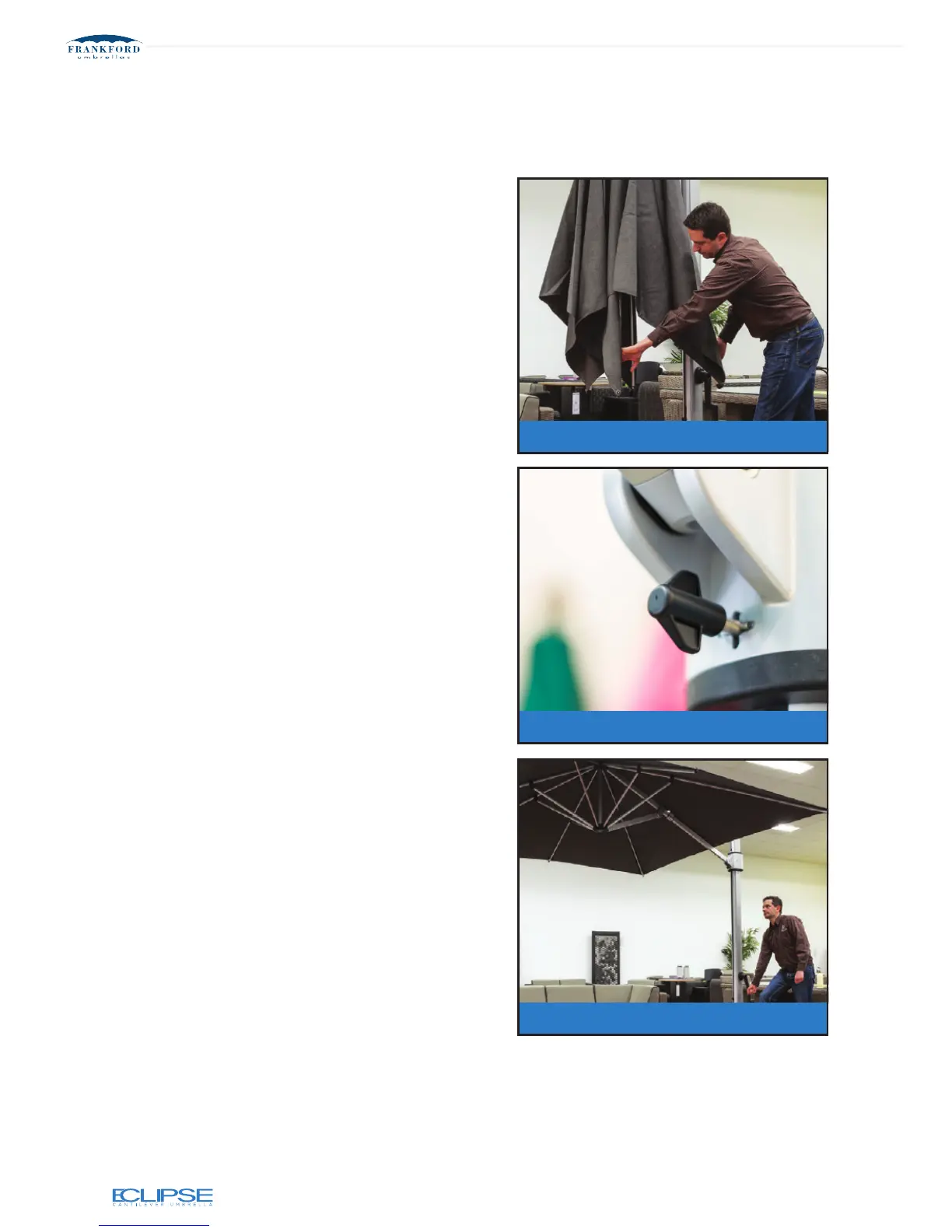

OPENING THE ECLIPSE
• Remove the strap from the canopy.
• Gently spread the canopy arms open with
your hand. (Figure A)
• Insert the Winder Handle (30) into the
winder housing (31) on the mast and rotate
in a clockwise direction. Ensure the slider
car wing shaped inclination stop pin (20)
is disengaged (pulled out) and in a vertical
position with the steel pin lying horizontal
in the slot. (Figure B)
• Continue winding until the slider car (19) has
attained the maximum height (don’t force
it, it will stop when fabric tension reaches
maximum tautness) and the canopy is fully
open. The Bottom Hub (6) will be seated
into the Hub Tube (9) and the edge of the
canopy should be taut. (Figure C)
• The Winder Handle may be removed if
desired as a safety and security feature.
NOTE: The Winder Handle will become a
little harder to wind as the umbrella nears
fully open. This is normal particularly when
the acrylic canvas is new.
FIGURE B
7 |
