Frankford Umbrellas ECLIPSE - TO ROTATE THE ECLIPSE UMBRELLA

FIGURE C
FIGURE A
FIGURE B
TO ROTATE THE ECLIPSE UMBRELLA
There are 16 pre-determined rotation positions in
the spigot. These positions are found every 22.5°
interval around the spigot base. They are located
where indicated with notches on the spigot base.
The position holes are under the nylon indexing
shield (34) which acts as a dust cover for the
holes not in use.

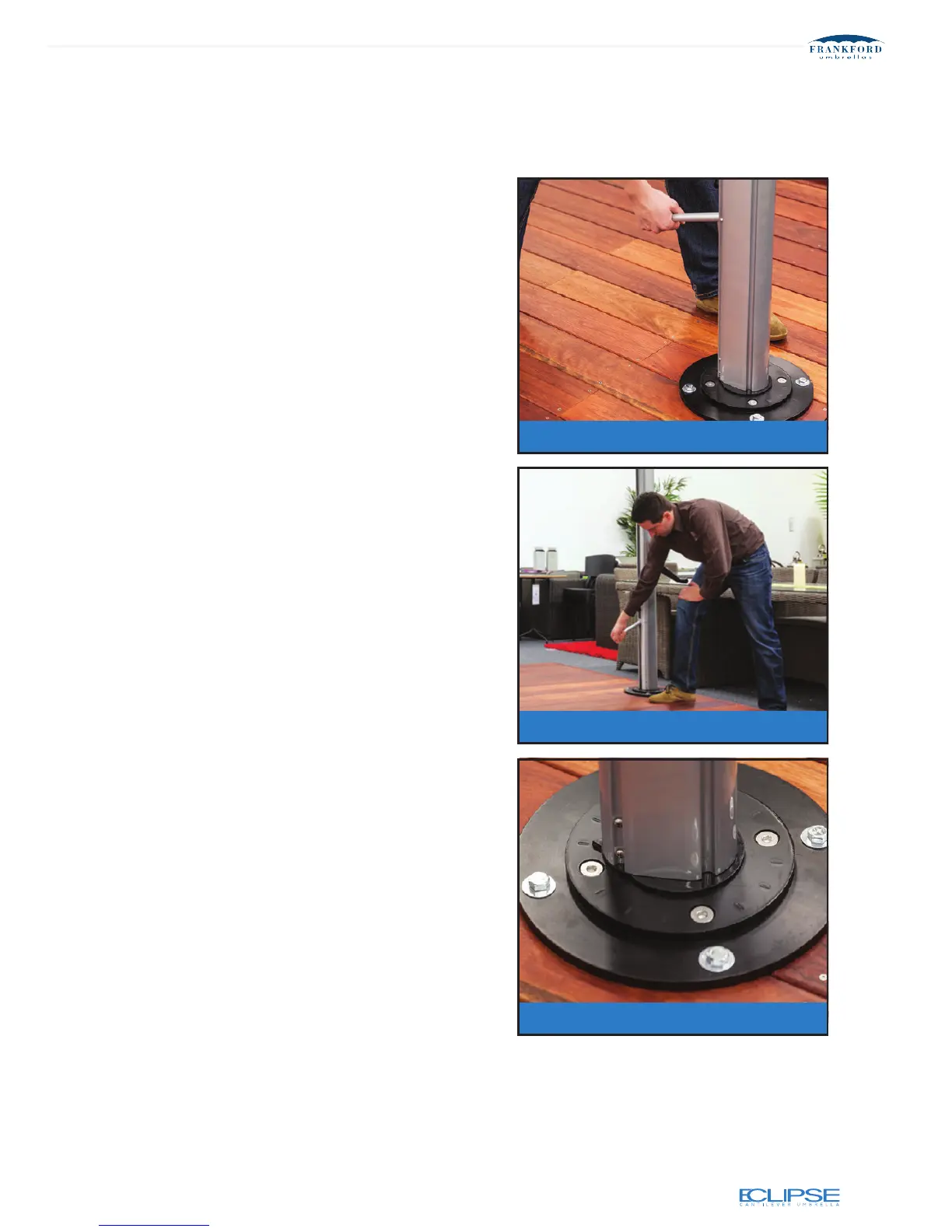

• Pull the rotation lift handle (35) out from
the mast cavity (Figure A).
• Lift up on the handle and feel the resistance
from the spring that houses the rotating lock
pin (36). (WARNING: THIS IS NOT USED
TO LIFT THE UMBRELLA).
• By using the rotating lift handle (35) as a
lever you may rotate the umbrella on the
base until you arrive at your desired position
(Figure B). Each position is marked by a
notch on the spigot. Align the indicator
arrow with a notch (Figure C). Lower the
rotating lift handle sufficiently to locate the
rotating lock pin.
NOTE: There is some resistance to
rotation as the weight and friction of the
umbrella needs to be overcome. Also, the
rotating lift handle will set back into place
if the umbrella is not in a pre-determined
position. Rotate counter or clock-wise to
find the nearest lock position.
