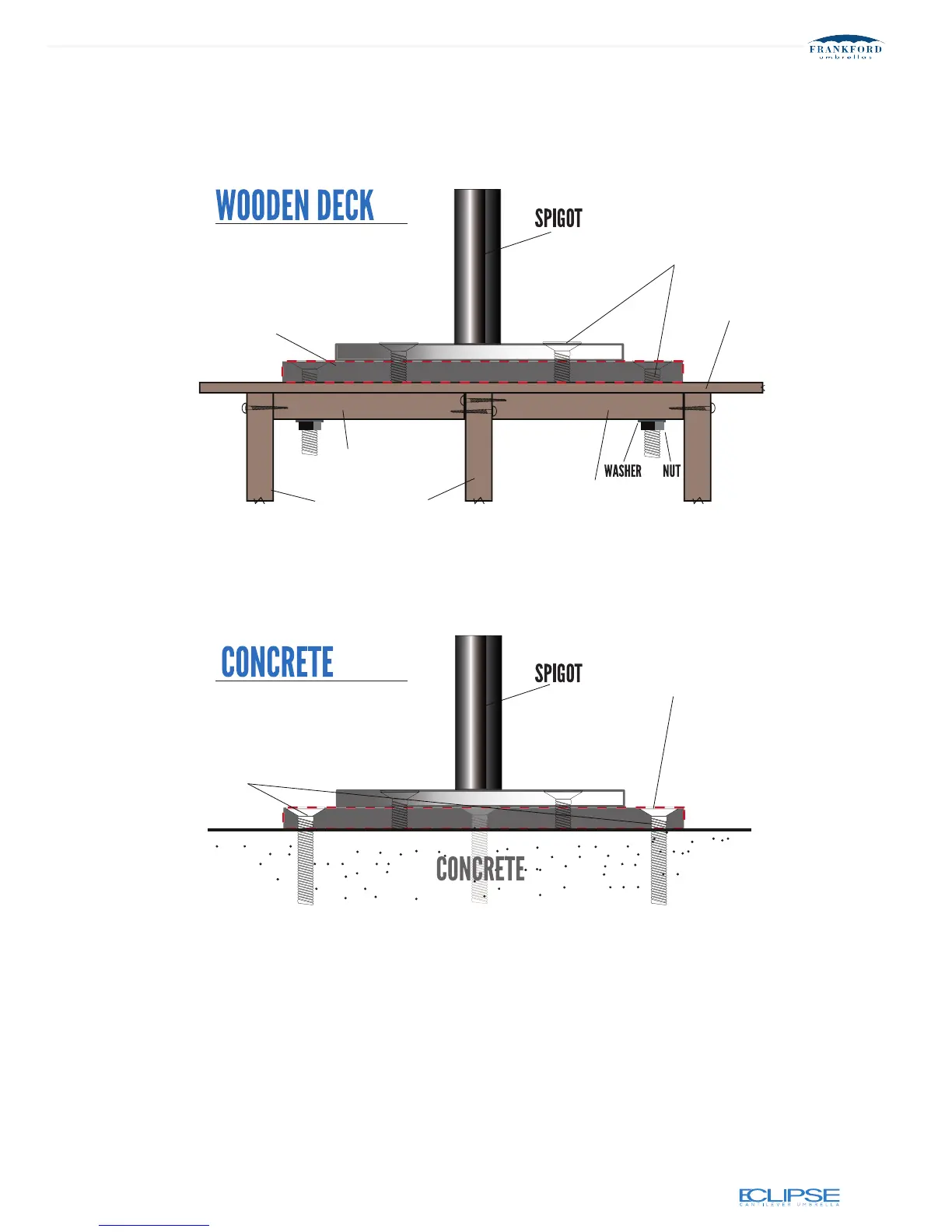

2” THICK CROSS BEAMS
DECK BEARERS
DECK PLATE
1/4” DECK PANELS
COUNTER SUNK BOLTS
M10 CONCRETE SCREW OR DYNA BOLT
MINIMUM LENGTH 3”
12.4” DIAMETER DECK PLATE
Concrete slab minimum depth 4”.
No screw or fixing to be within 6” of closest edge of concrete slab
