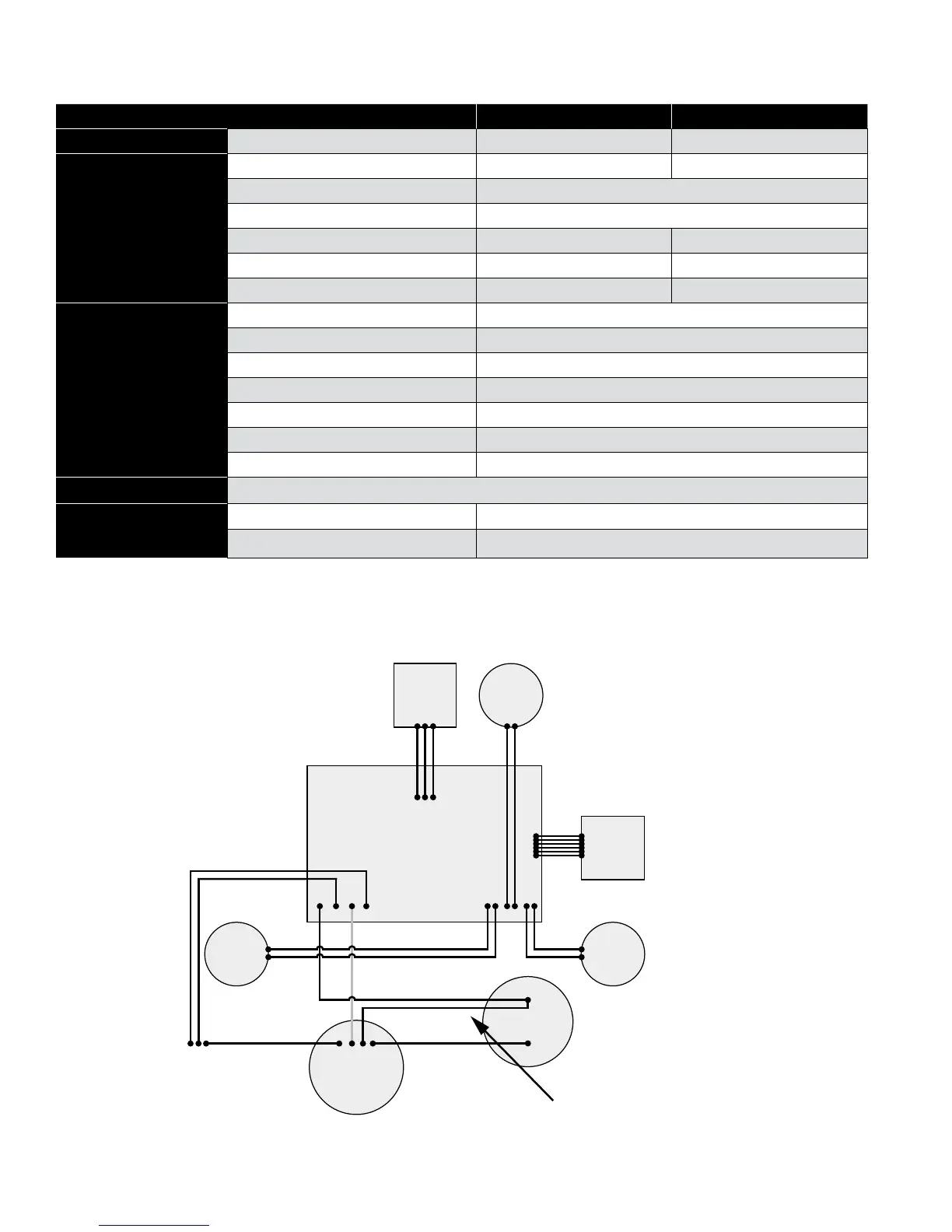

SPECIFICATIONS
Internal Wiring Diagram
Inline 400 Inline 400
Model No. 92061501 / 92061503 92061502 / 92061504
Input from Power Source
Voltage 115 V 230 V
Phase Single-Phase
Frequency 60 Hz
Current (max) 6.6 Amps (RMS) 3.3 Amps (RMS)
Power (max) 710 W 710 W
Wire Gauge Size(s) 18 Gauge Power Cord 18 Gauge Power Cord
Operating Conditions
MAX flow (gpm) 20
MAX boost pressure (psi) 55
MAX system pressure (psi) 95
Sound Pressure Level (dB-A) <55
Plumbing Connections 1-1/4" NPT
Max Suction Lift (feet) 5
Drain Plug 1/4" NPT
Enclosure Type Acceptable for indoor/outdoor use (with protective cover)/CSA Enclosure Type 3
Unit Size
External Dimensions 29.6" x 9.2" x 8.9"
Net Weight (lbs) 35
HALL PCB
MOTOR
MAIN PCB ASSEMBLY
CAPACITOR
BLACK WIRE FROM MAIN PCB AND BLACK
WIRE FROM MOTOR MUST BE CONNECTED
TO THE SAME CAPACITOR TERMINAL.
TEMP.
SENSOR
INCOMING
POWER
Black
Green
Red
Yellow
Red (230 V)
White (115 V)
UI
PCB
PRESS.
SWITCH
IN
PRESS.
SWITCH
OUT
To Next Page
