INTRODUCTION
The Inline 400 is a simple to use “plug-and-play” water pressure booster system. At the heart of this fully integrated booster system is a trusted
Franklin Electric submersible pump and motor. The unit’s control head is equipped with a Hall eect flow sensor, inlet/outlet pressure switches, thermal
overload switch, and a durable printed circuit board. Enhanced performance allows versatility in residential applications and allows for easy installation
(mounting either vertically or horizontally) while also enabling the system to work with virtually any existing plumbing configuration.
The Franklin Electric Inline System provides consistent pressure boosting using advanced electronics to drive and control a standard Franklin Electric
pump and motor according to the pressure boosting demands of the application.

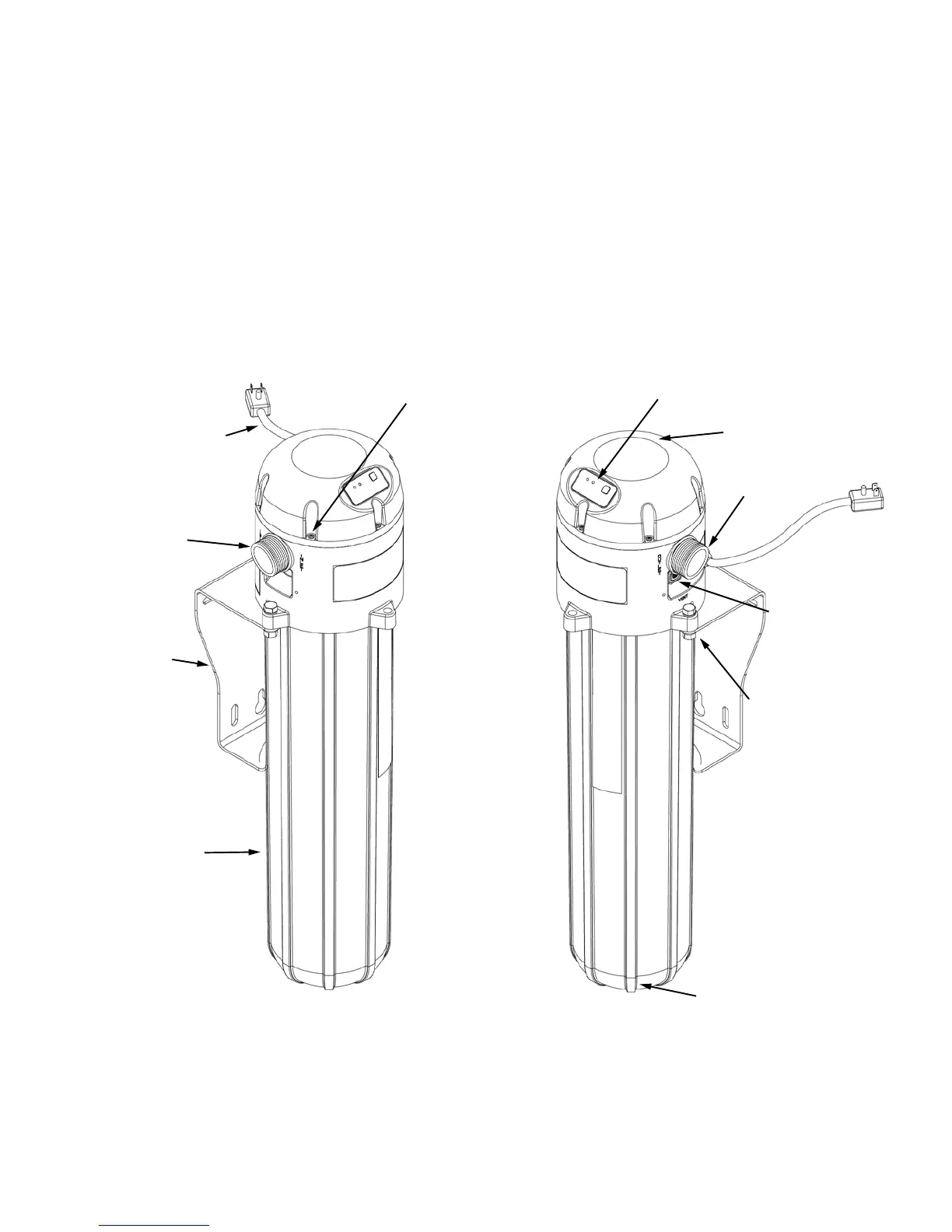

SYSTEM COMPONENTS
Mounting Bolts (2)
1/4" NPT Drain Plug
Air-Bleed Valve
Outlet
Control Cap
Power Cord
Mounting Base
Pump Housing
Status Display
Head Cover Screws (6)
Inlet
NOTE: Horizontal installations are approved for INDOOR use only.
Vertical installations are approved for OUTDOOR use when the clear protective cover is installed.
