PRODUCT INFORMATION
Description
7
PRODUCT INFORMATION
Description

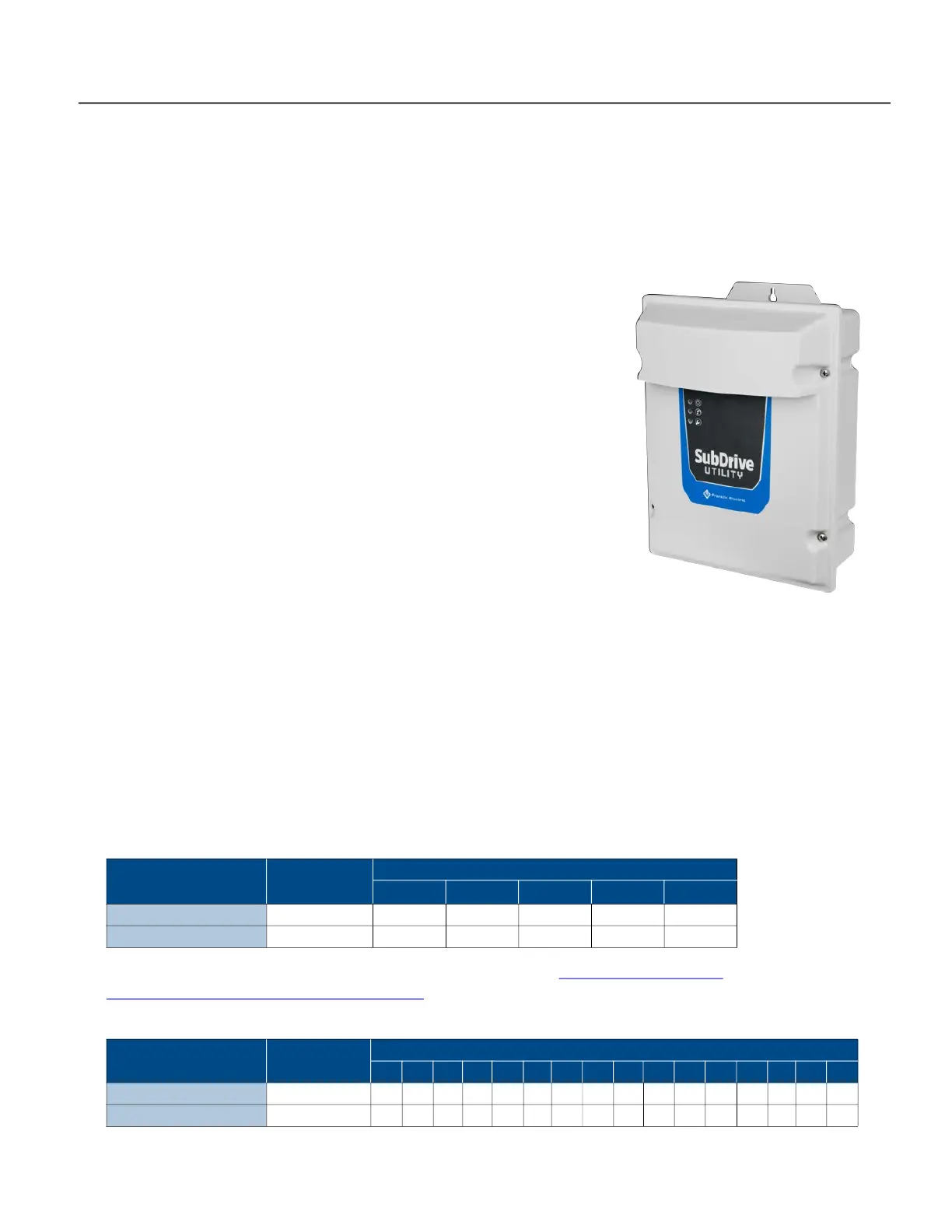

The Franklin Electric SubDrive Utility UT3P is a variable frequency drive (VFD) designed to control and pro-
tect 3-wire, single-phase 230V motors, and 3-phase 230V motors, enhancing pump performance for resi-
dential and light commercial water system applications. When used with Franklin Electric motors ranging
from ½ to 2 HP, the UT3P drives a pump - motor assembly at variable speeds to maintain constant water
pressure, even as user demands (water flow) change.
The drive is designed to convert a conventional pump system to a variable speed
constant pressure system by simply replacing the pressure switch and control box.
Features
Configuration
• Compatible with submersible and surface pumps
• No programming required with easy DIP switch setup
• Pressure sensor or transducer for water control
• Works with small pressure tanks or existing larger tanks
Operation
• Three LED indicators for system status and troubleshooting
• 30 Hz - 60 Hz for 3-Phase submersible; 15 Hz - 60 Hz for 3-Phase surface;
30 Hz - 63 Hz for 3-Wire (submersible only)
• Accessory filtering available to remove AM radio frequency interference
Protection
• Protection against short circuit, under-load, overload, overheat, under-voltage, over-voltage, surges,
open circuit, mis-wired 3-wire motor, and pressure sensor fault
• Phase imbalance for 3-phase motors
• Broken-pipe detection
• User-defined under-load sensitivity
• Soft-start feature prevents water hammer and increases motor life
Communication
• USB port allows for easy firmware updates and easy Fault Log and Event Log downloads
Models
Submersible Applications
Motor and pump HP are programmed through DIP switch settings. Refer to “Submersible Motor Horse-
power Setting (DIP SW1 – Positions 1–5)” on page 22.
Surface Applications
Model UT3P Part Number
230 V 3-Wire and 3-Phase
½ HP
¾ HP
1 HP 1 ½ HP 2 HP
w/Pressure Sensor 5870202303     
w/Pressure Transducer 5870202303XD     
Model UT3P Part Number
230 V 3-Phase Motor Overload Protection Ratings (Amps)
2.6 3.0 3.6 3.8 4.0 4.1 4.6 4.7 5.3 5.9 6.2 6.6 6.8 8.1 8.5 8.6
w/Pressure Sensor 5870202303                
w/Pressure Transducer 5870202303XD                
