Franklin Electric submonitor - Mounting Dimensions and Instructions

15

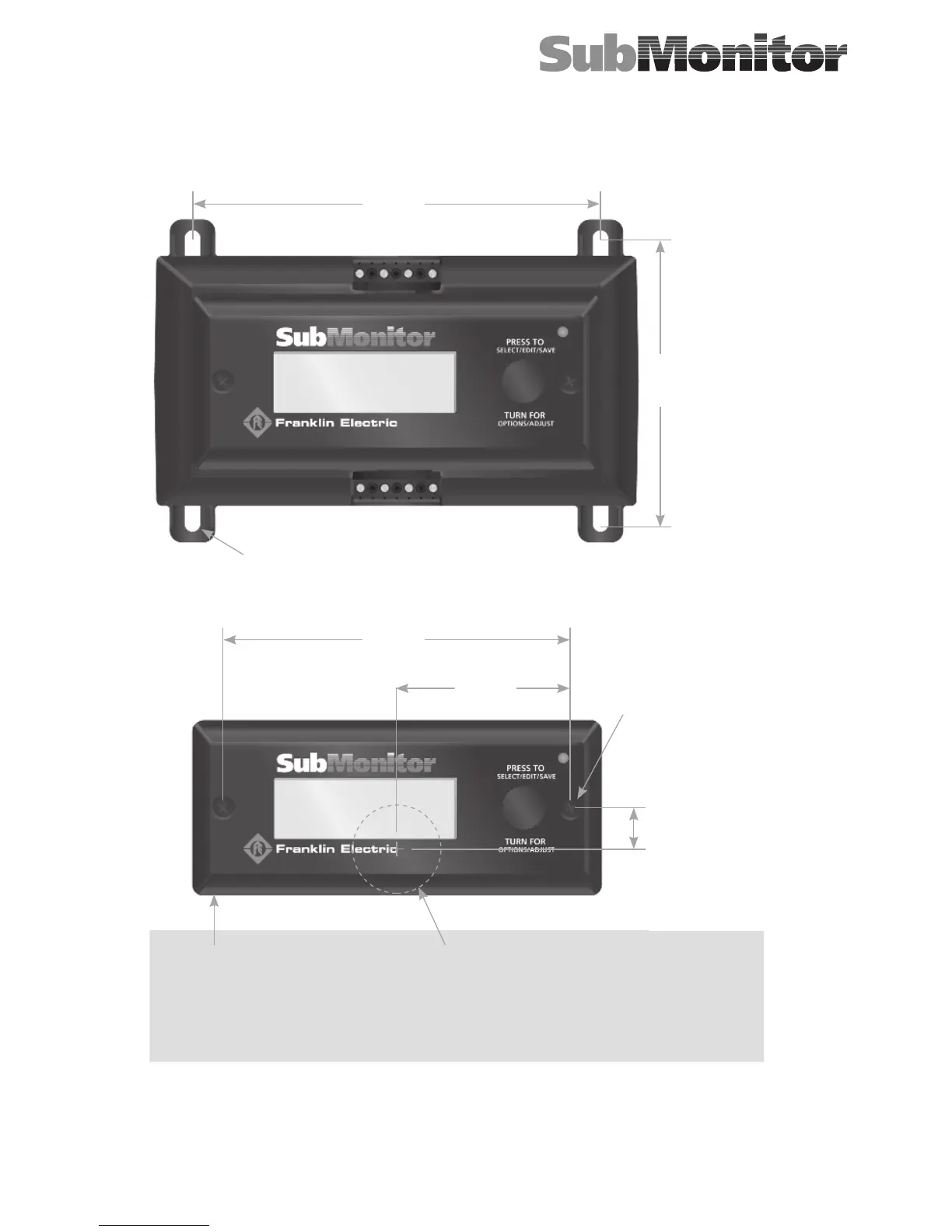

Mounting Dimensions
6 ¾”
(171.45 mm)
4.72”
(119.89 mm)
5 ¾”
(146.05 mm)
Slot ¼” (6.35 mm) Dia. Max. 4 Places
#8 Flathead Screw
1 ½”
(19.05 mm) Long
2 Places
¾”
(19.05 mm)
1 ½” (19.05 mm) Dia. Clearance Hole
in Control Panel Cover for RJ Cable
Install Gasket Between
the Panel and the Back
of the Display Unit
For Mounting Detachable Display Unit on the Cover of a Control Panel
2
7
/8”
(73.03 mm)
