Chapter 2 Assemble Smart Car

█ www.freenove.com

Install Pan Tilt on smart car board.

Step 1

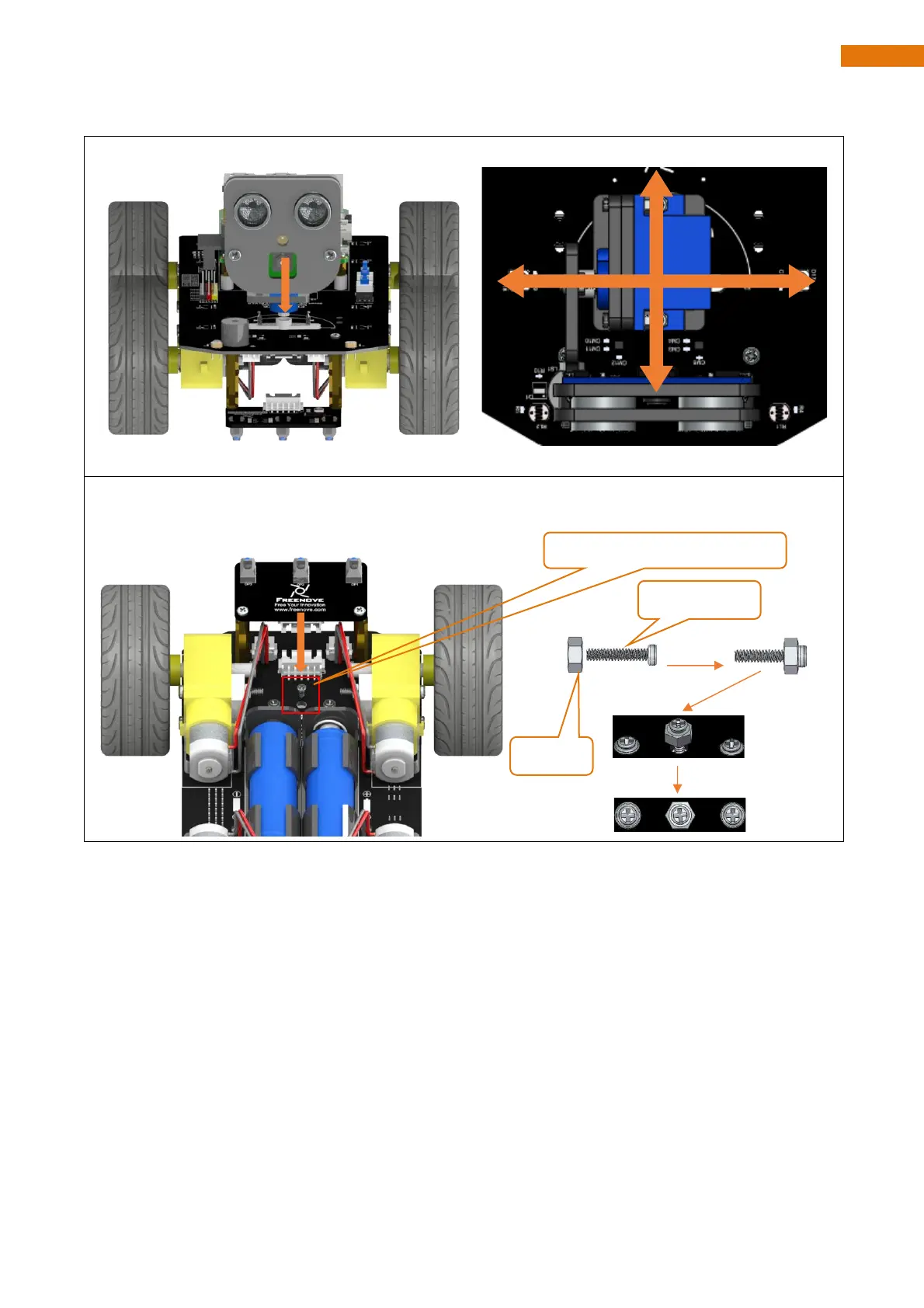

Keep the pan tilt as shown in the right picture and install servo0 with rocker arm.

Step 2

Use a Cross screwdrive to support M2 * 10 screws and M2 nuts to fix the servo 0.

Screw M2*10 and Nut M2

Screw M2*10

Nut M2

Screw
