Chapter 2 Assemble Smart Car

www.freenove.com █

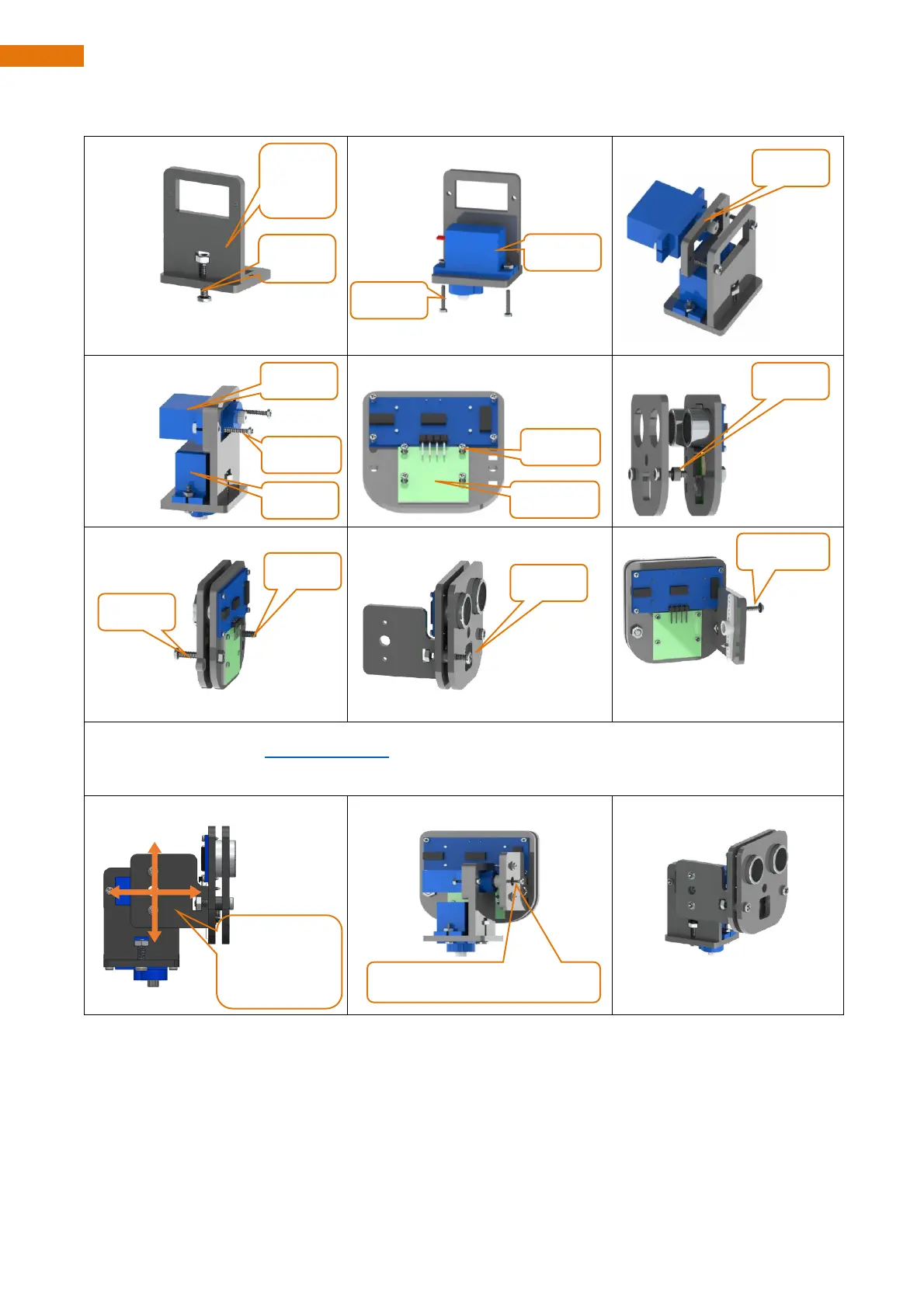

Installation steps: (Note: Do not disorder Servo0 and Servo1 during the installation.)

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Step 8:

Step 9

Now please refer to Wiring Section to wring ultrasonic sensor and camera frist.

Step 10

Step 11

After finished

Servo0

Servo1

M3*14

M2*10

M1.4*4

M3*14

M2.5*8

Keep them

vertical

M2*4 screw in servo package

Arcylic

Acrylic

part

Camera
