999075 – Rev F Page 16 of 40

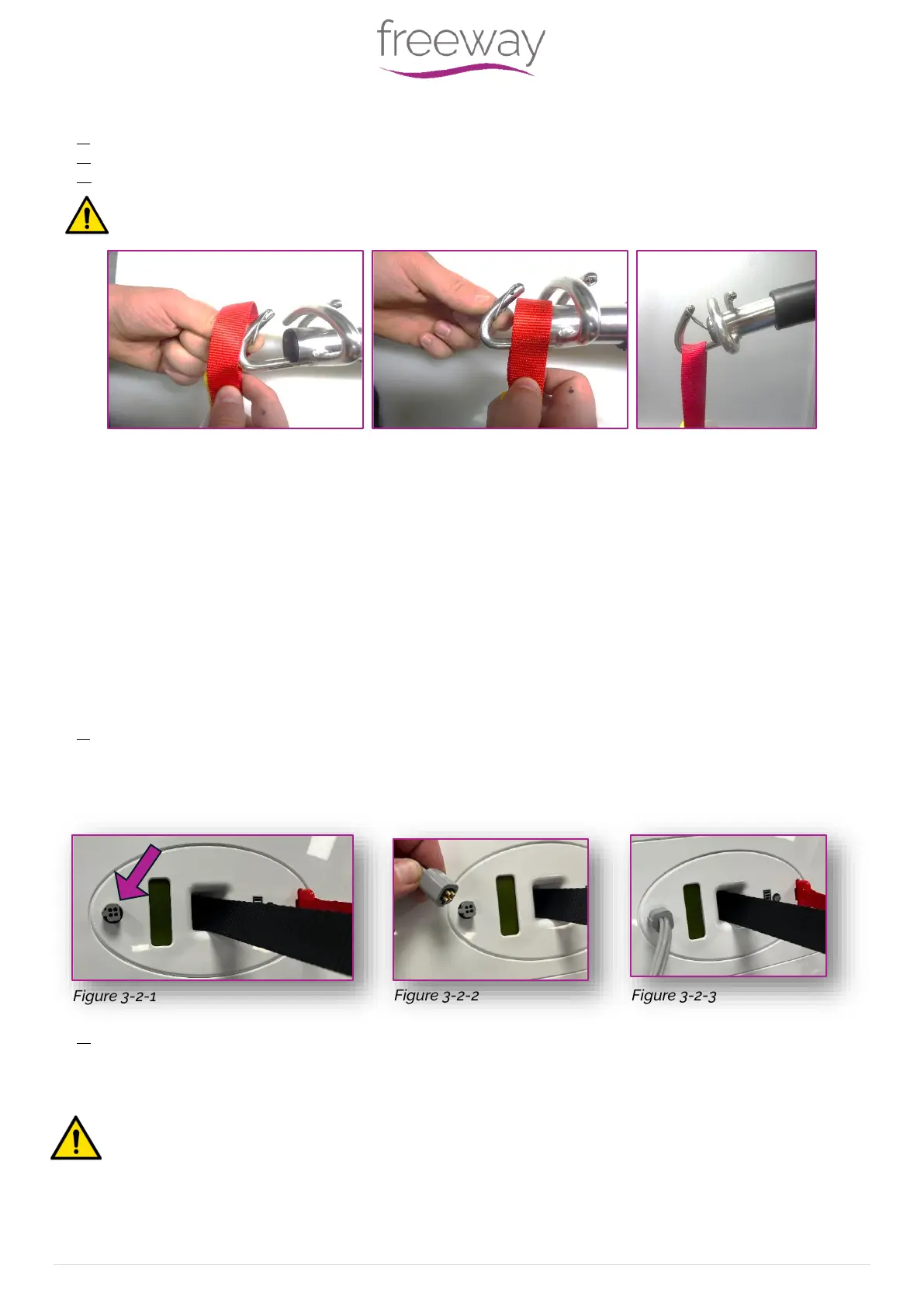

To attach the sling to the carry bar, follow the guidelines below:
1. Pull the safety retaining clip back to access the carry bar hook. (See figure 3.1.2.1)
2. Place the chosen sling loop onto the hook. (See figure 3.1.2.2)
3. Release the safety retaining clip to secure the loop onto the carry bar. (See figure 3.1.2.3)
Make sure the required loop(s) are on the correct hooks and are correctly positioned.
To remove the sling, simply reverse the process – pull back on the spring locking mechanism, lift the loop out
of the hook and release the locking mechanism.
3 . 2 Handset
The handset is an essential applied part of the ceiling hoist system. The handset has two to six buttons
depending on the chosen ceiling hoist. The handset is used to operate the ceiling hoist, including raising and
lower the carry bar, traversing the ceiling hoist along the track, and operating powered auxiliaries (such as
turntables).
We recommend that handset should never be detached from the ceiling hoist, but in an instance that the
handset becomes inadvertently detached. See guidelines below to reattach the handset.
1. The handset grommet attaches to the airline grommet on the underside of the ceiling hoist. Align the
profile of the grommets together and insert the handset brass inserts into the air grommet holes. See
images below for reference. Make sure that the handset is fully inserted onto the airline grommet.
2. Test the handset by operating each button to ensure that the command functions as intended. (See
operating instructions for further details)
A sturdy ladder or steps may be required to access the underside of the ceiling hoist to attach the hand
controller. Caution should be used when this is required.
