5 Technical Specification

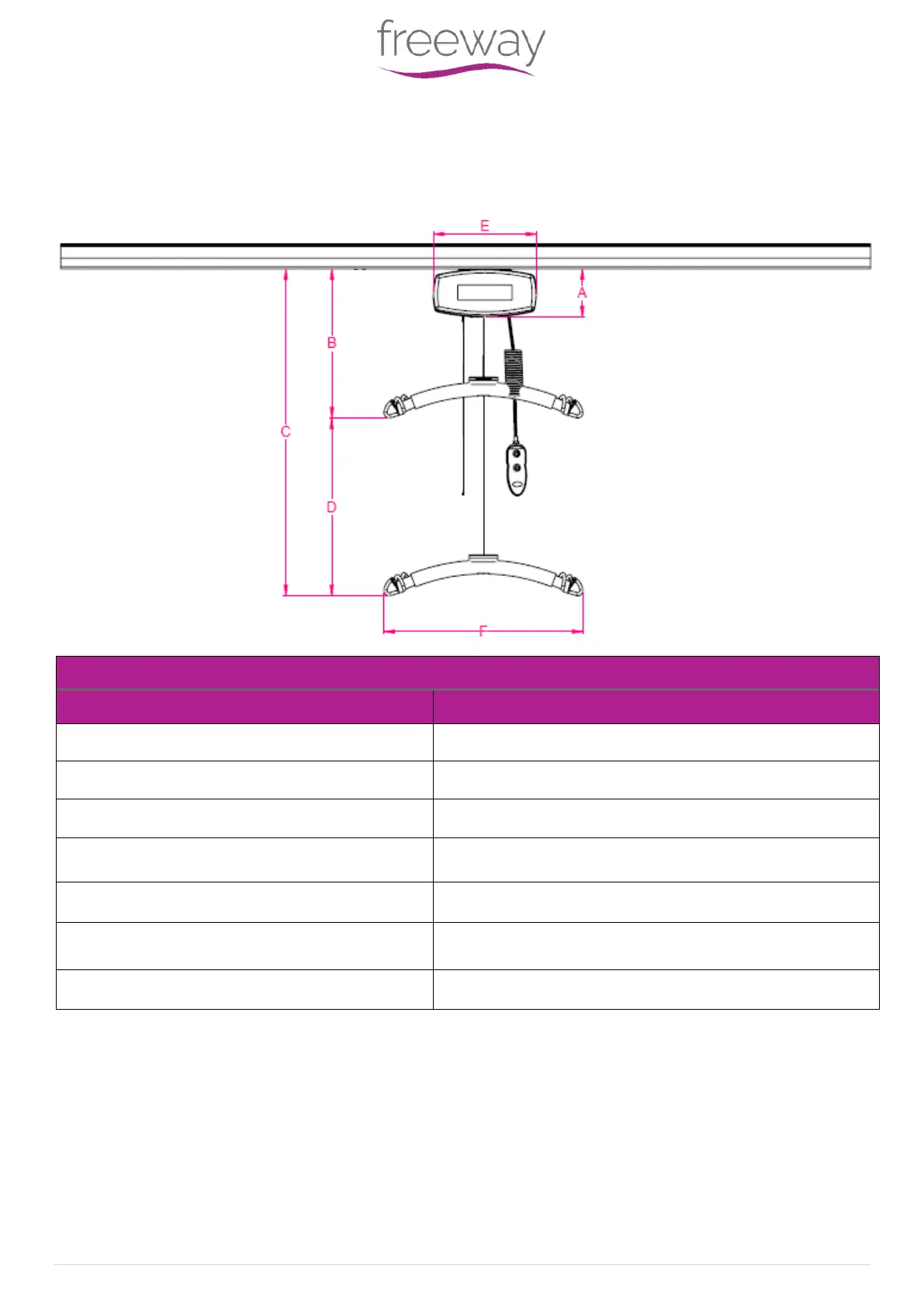

5 . 1 Ceiling Hoist Dimensions
Ceiling Hoist Dimensions - Millimetres
Dimensions (Ref to drawing)
Standard Ceiling Hoist
A – Track to Ceiling Hoist
74
B – Min Distance from Track to Carry Bar
324
C – Max Distance from Track to Carry Bar
2324
D – Lifting Range
2000
E – Ceiling Hoist Width
318
Ceiling Hoist Depth
210
F – Carry Bar Width
615
Figure 5-1-1
Table 5-1-1
