13. Install the slip clamp with the retaining ring and
graphite gasket ring onto the forward CGI pipe.
See
Fig. 12 for proper installation.
14. Slide the end of the forward CGI pipe into the
bellows, and properly align the pipe.
15. Secure the forward CGI pipe to the engine and
any CGI pipe support brackets.
16. Using the yellow marks, center the bellows be-
tween the exhaust pipes. Verify that the pipe is
inserted at least 7/16 inch (10 mm) past the face
of the flange. See
Fig. 11, Ref. A.
17. Install the slip clamps on the bellows. Tighten the
slip clamps 11 lbf·ft (15 N·m).
18. Start the engine and check for exhaust leaks.
Tighten any clamps as needed.
02/23/2011 f490458
A A
213
A. At least 7/16 inch (10 mm)
1. Forward CGI Pipe
2. CGI Bellows
3. Aft CGI Pipe

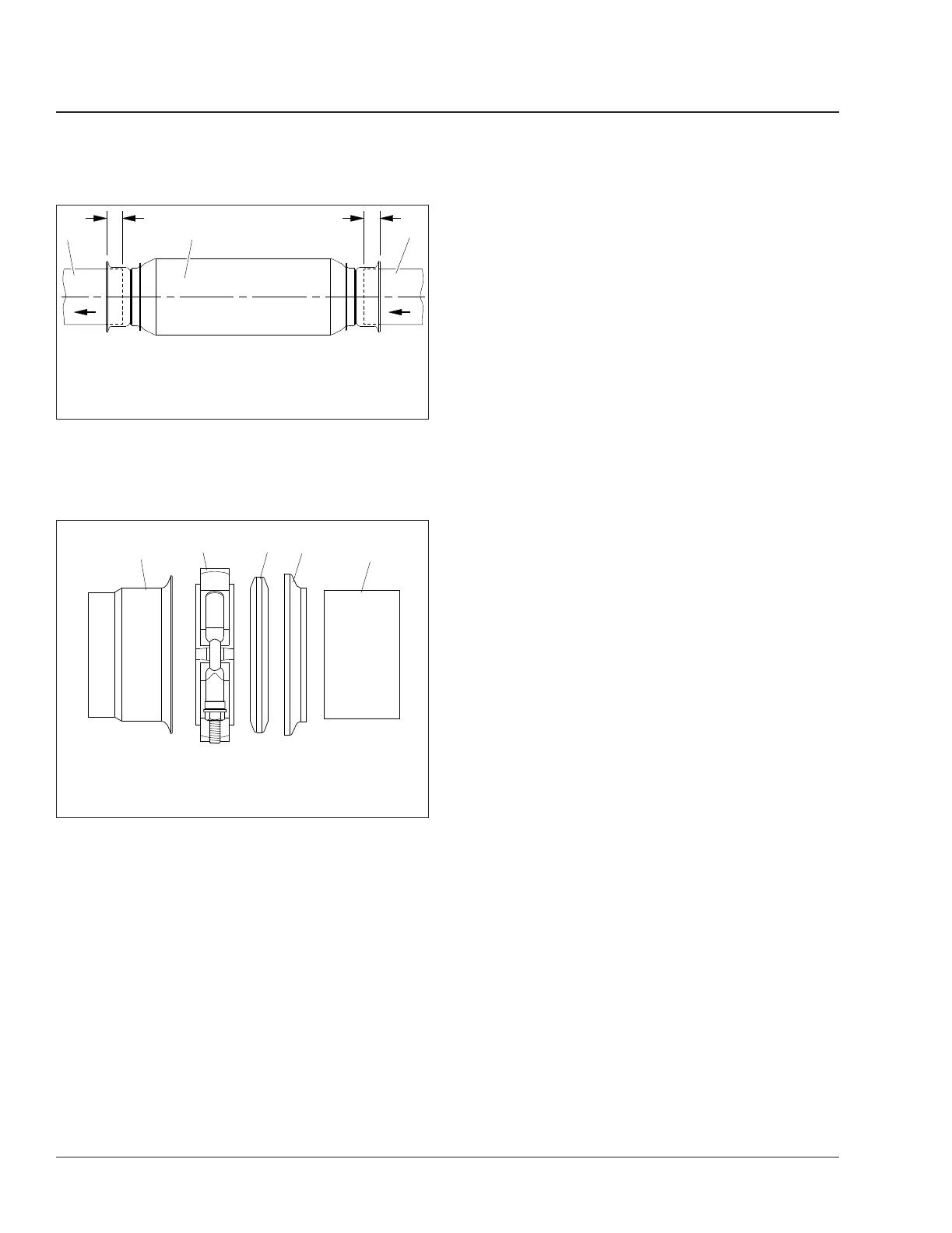

Fig. 11, CGI Bellows Installation
02/08/2010 f490417
5
4
3
2
1
1. CGI Bellows
2. Slip Clamp
3. Retaining Ring
4. Graphite Gasket
5. Forward CGI Pipe
Fig. 12, Forward Facing Slip Clamp Installation
Exhaust49
Century Class Trucks Maintenance Manual, January 201649/6
