Fault Codes
Fault Code Suspect Failure
11 Central Processing Unit (CPU)
12 CyberCard
13 Driver Display Unit (DDU)
14 Antenna Assembly
15 Right Side Sensor
16 Left Side Sensor
21 Right-Turn Signal
22 Left-Turn Signal
23 Brake
24 Speed
25 Cruise
31 J1587
32 J1939
33 VBUS
34 DDU Communications
35 Antenna Assembly Communications
41 No Fault or End of Fault Codes
Table 2.5, Fault Codes (EVT-300)
6.
The green SC indicator light will flash eight times
if the range knob is pressed to store accident
reconstruction information. It will also flash eight
times after the system is activated, after the
power-on LED test is finished, and if accident
reconstruction data was previously stored.
7.
The ambient light sensor senses lighting condi-
tions and automatically adjusts the intensity of
the indicator and alert lights.
8.
If the system’s configuration requires, insert the
driver’s identification card in the slot at the lower
front edge of the DDU. A high-pitched tone will
sound when the driver’s identification card has
been successfully read. One low tone will sound
if the driver’s card has been unsuccessfully read.
If so configured, a repeated low tone will sound if
the system is on and the requested driver’s card
has not been inserted.
9.
The yellow alert light illuminates when an object
is detected within the system’s maximum range
of 350 feet (107 meters) on a straight road.
Range is reduced in curves by the turn radius of
the curve. This light also illuminates when the
proximity alarm threshold is crossed.
10.
The orange alert light illuminates, along with the
yellow alert light, when your vehicle is within a
VOLUME ALERTS RANGE
EATON VORAD
TECHNOLOGIES
10/15/98
f610258
ON SC
1
2
3
4
5
6
7
8
12
FAIL
1011 9
1. Red System Failure Indicator Light
2. Green Power ON/Driver’s Card Status Indicator Light
3. Volume Control and Power ON/OFF Knob
4. Speaker
5. Range Knob
6. Green SC Indicator Light
7. Ambient Light Sensor
8. Driver’s Identification Card Slot
9. Red Alert Light
10. Orange Alert Light
11. Yellow Alert Light
12. Distance/Danger Alert Lights

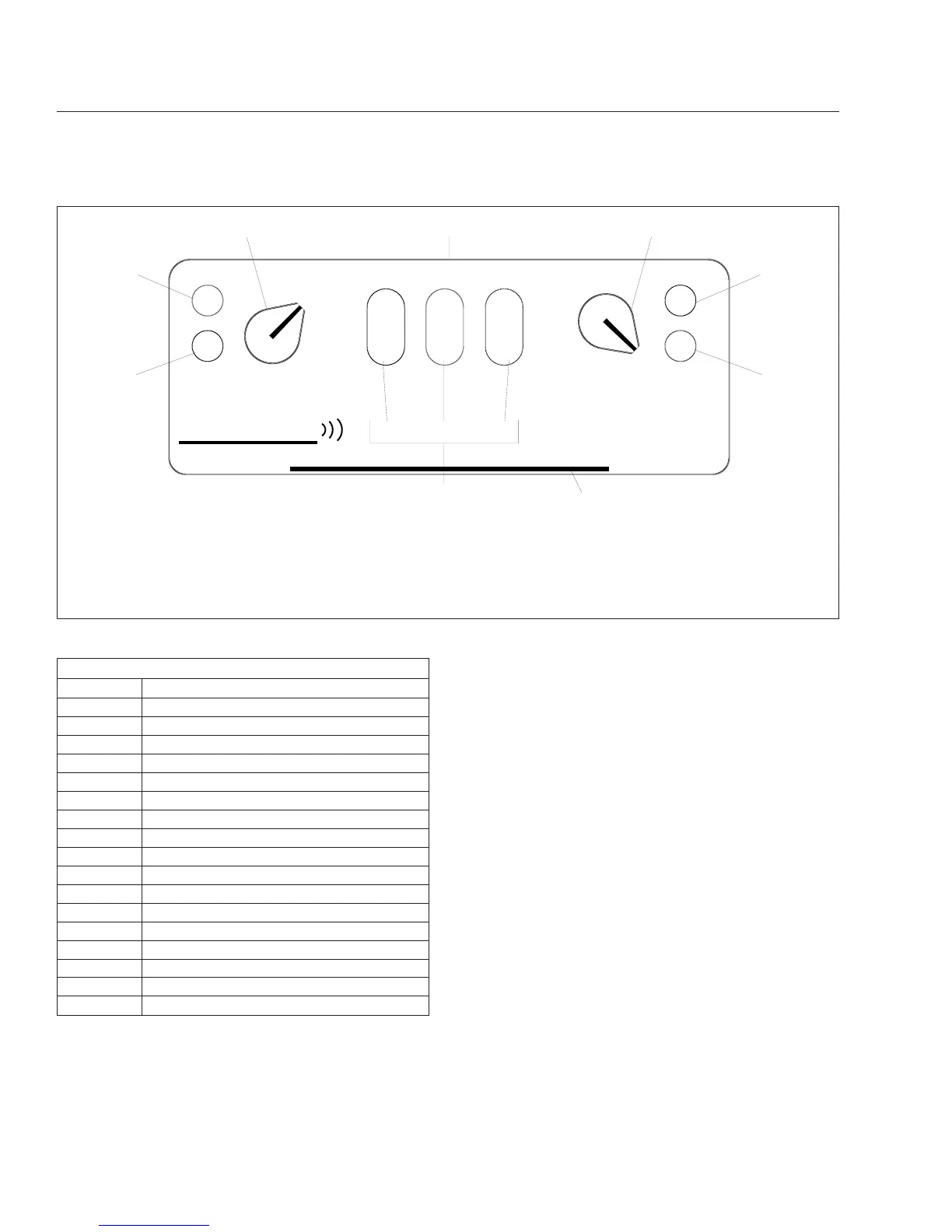

Fig. 2.45, Driver Display Unit (EVT-300)
Instruments and Controls Identification
