WARNING
Damaged seat belts or seat belts that were worn
in an accident must be replaced and their an-
choring points must be checked. Do not attempt
to modify the SPACE system. Doing so could
change the effectiveness of the system. The
SPACE system must be replaced after being acti-
vated. Failure to do so may result in personal in-
jury or death.
Infants and children must not be placed in seats
equipped with the SPACE system. The SPACE
system is designed for adults only. Failure to fol-
low these instructions may result in personal in-
jury or death.
The operational readiness of the SPACE system is
indicated by the supplemental restraint system (SRS)
indicator on the dash. The SRS indicator comes on
when the engine is started and then goes off. The
indicator will remain on if there is a problem with the
air bag or SPACE system. The vehicle should be
serviced if the SRS indicator does not come on when
the engine is started or if the SRS indicator remains
on.
Safety Guidelines for the SPACE
System
The SPACE system contains components that use
combustible chemicals. Because these chemicals are
combustible, care must be taken when replacing or
handling system components.
WARNING
Do not attempt to service the air bag/SPACE sys-
tem. Damaged or deployed air bag/SPACE sys-
tems should be examined only by qualified per-
sonnel before any attempt is made to remove,
replace, or handle the air bag/SPACE system
components. All intentional deployments and
testing of the system should be performed by
trained personnel. Unintentional or improper de-
ployment of the air bag/SPACE system could
cause severe bodily injury or death.
f910172
09/03/97
1
2
3
4
5
1. Pretensioning Cable Tether
2. SPACE Module
3. Suspension Seat
4. Gas Cylinder
5. Sensor Bracket

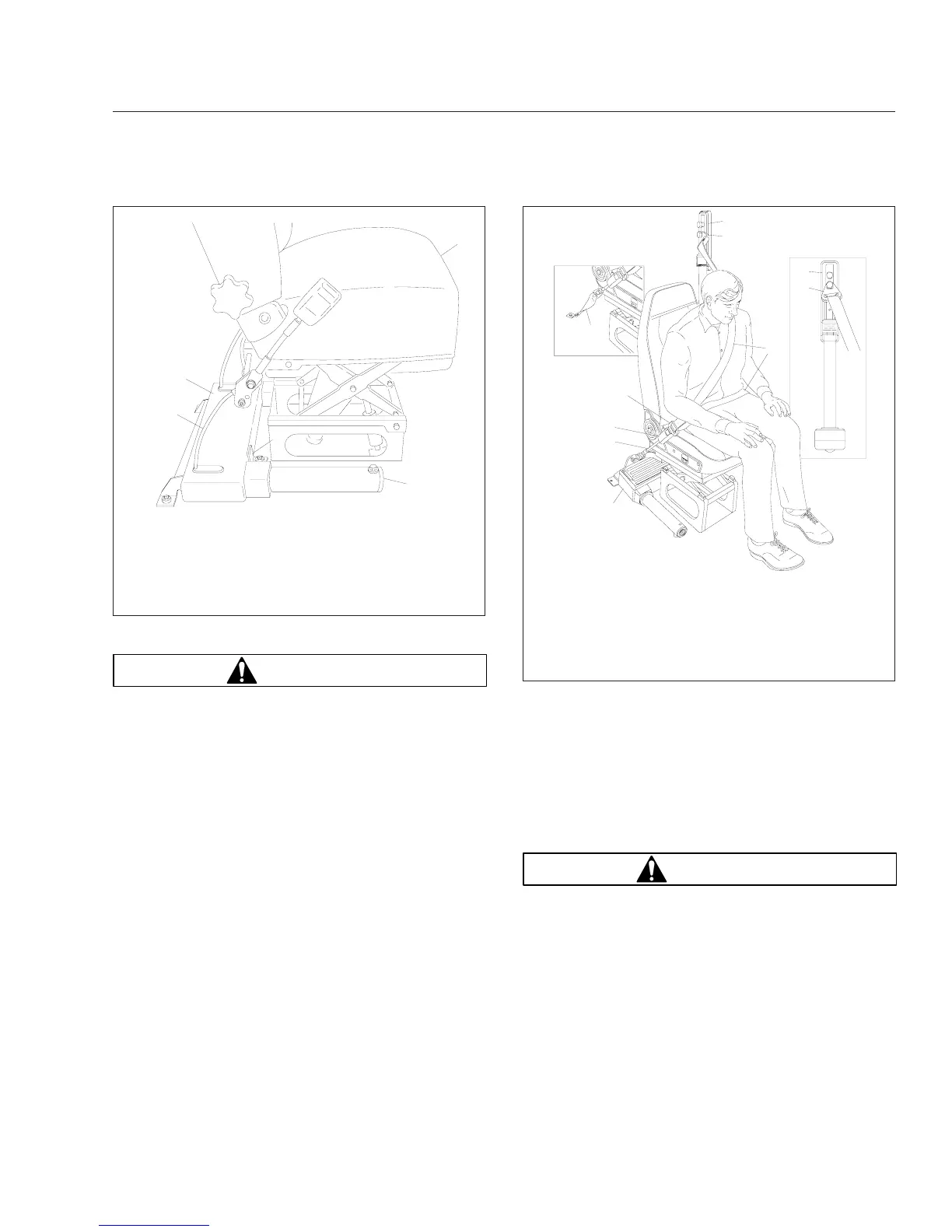

Fig. 5.13, SPACE System Components
07/29/97
f910235
3
4
5
6
7
A
B
1
2
1
2
8
A. Seat Tether Without the SPACE System
B. Seat Belt Assembly B-Pillar Components
1. Height Adjuster
2. Shoulder Loop
3. Seat Belt
4. Latch
5. Buckle
6. Buckle Cable
7. SPACE Module
8. Seat Tether
Fig. 5.14, SPACE System Seat Belt Assembly
