Fri-Jado STG - Thermostat; Main Switch

Service Manual STG5/7 STW5/7 form 9123659 rev. 03/2014
Page 22

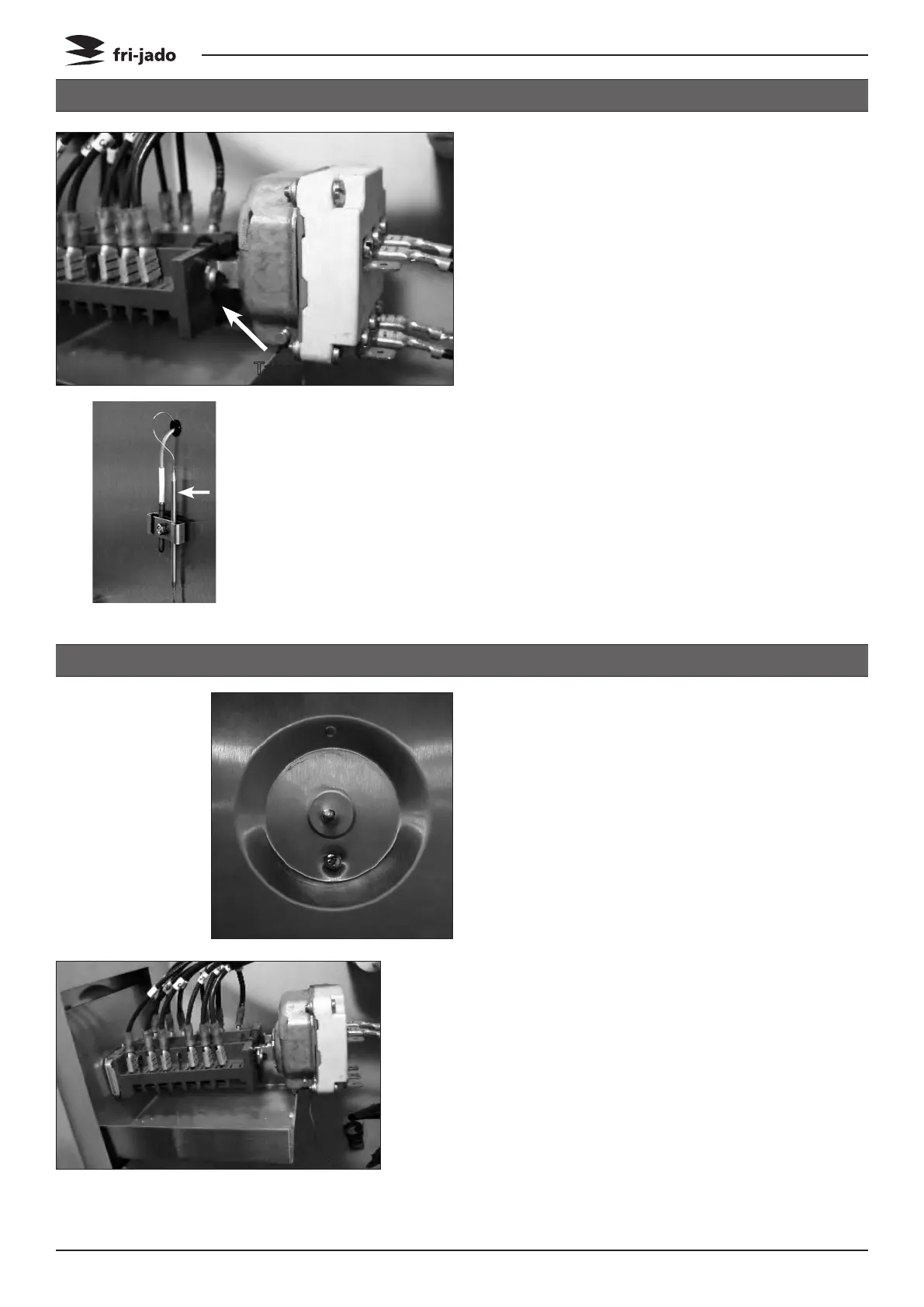

REMOVAL AND REPLACEMENT OF PARTS
1. Remove the right side panel and the fan
plate according prior procedures.
2. Remove the thermostat probe from the
clamp inside the cavity (see arrow) and
guide it outside through the opening.
3. Disconnect the wiring from the ther-
mostat.
4. Remove the thermostat from the main
switch by squeezing the tabs and pull the
thermostat away.
5. Reverse the procedure to install.
1. Remove the right side panel according
prior procedure.
2. Remove the knob according prior proce-
dure.
3. [STGW only] Remove the 2 bolts on the
backside of the instrumentpanel
4. Remove the screw that secures the instru-
mentpanel and remove this panel.
5. Remove the screws that secure the main
switch and remove the switch.
6. Disconnect the wiring from the switch.
7. Remove the thermostat from the main
switch according prior procedure.
8. Reverse the procedure to install.
MAIN SWITCH
THERMOSTAT
Tabs
