85
PB

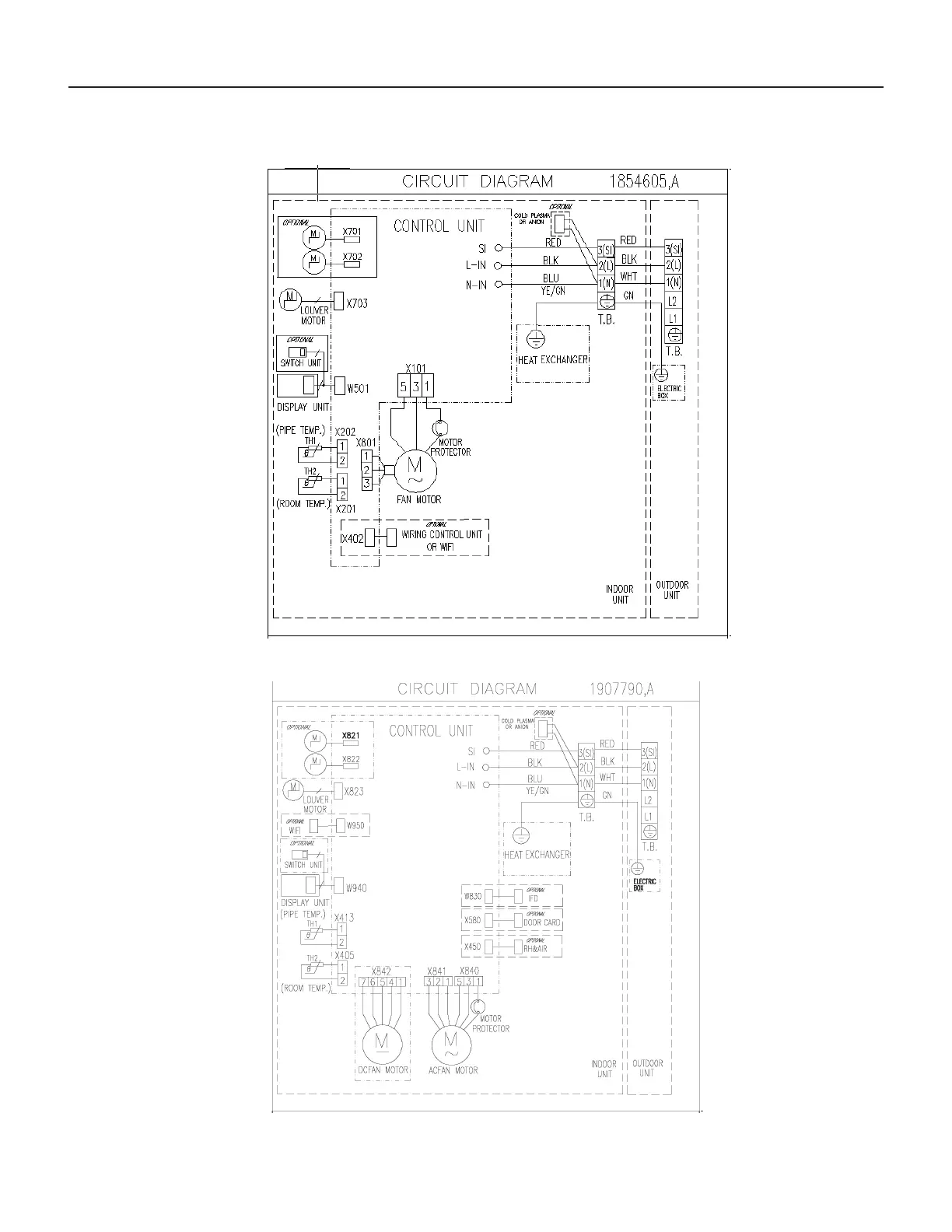

WIRING DIAGRAMS
Indoor Units
Figure 802
FPHFW09A3A, FPHFW09A3B
Figur
e 801
FPHSW09A1A, FPHSW09A1B, FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B,
FRHSW12A3A, FRHSW12A3B, FPHFW18A3A, FPHFW18A3B
84
86
