R-410A SEALED SYSTEM REPAIR
Replace 36k Outdoor unit Compressor and Motor
Step
disconnected and verified as voltage free.
Important: Before disassembly and assembly, make sure that the power to the system has been
Illustration Handling Instruction
casing

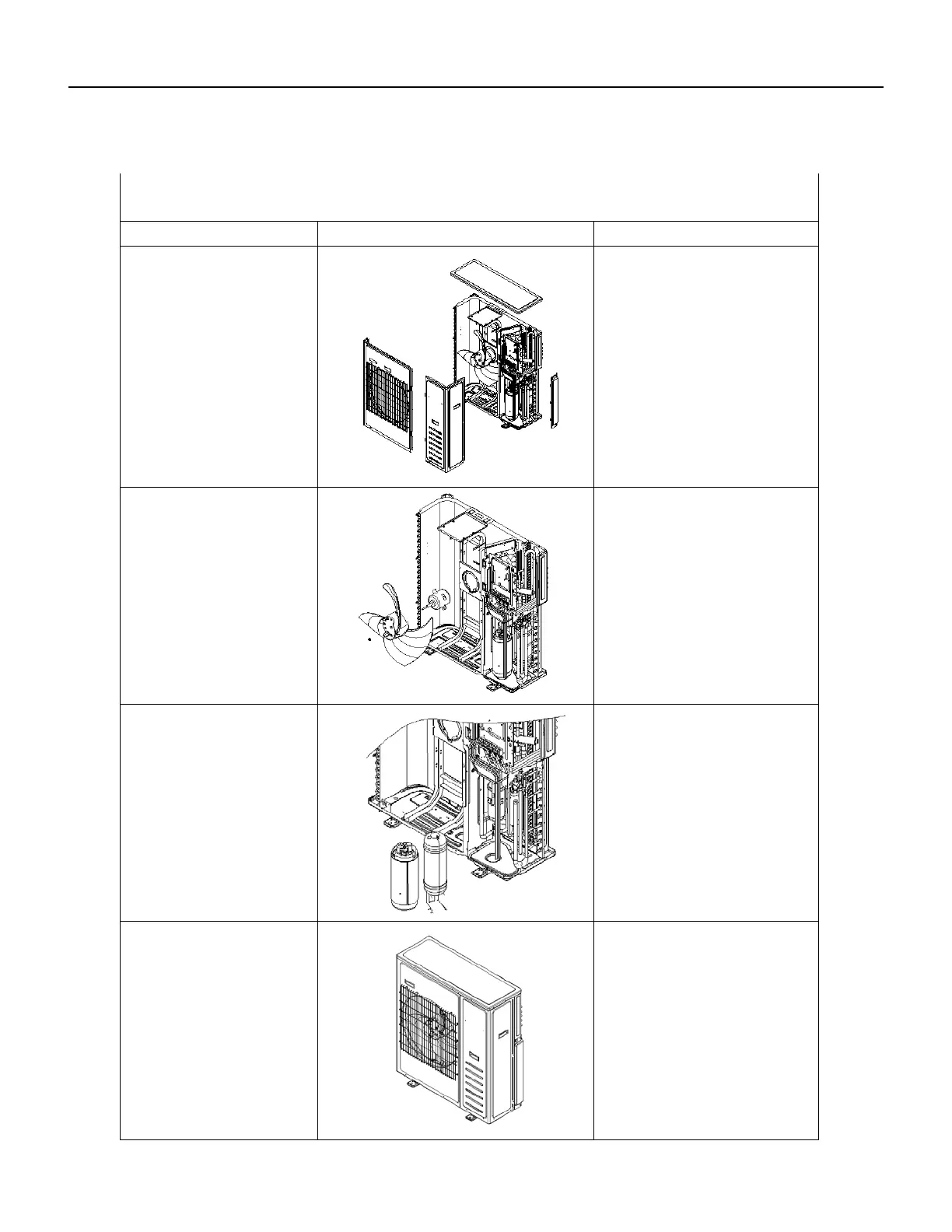

1. Remove external
2. Remove motor
1. Remove the top cover,
handle and valve cover;
2. Remove the outer case
and right side plate.
3. Remove compressor
1. Remove the blade nut and
then remove the blade;
2. Remove the motor from
motor supporter
4. Assemble unit
Assemble the unit in the
reverse order of
disassembly.
1. Reclaim the ref rigerant
From the entire system.
2. Unsolder the 4-way valve
piping assy from
compressor.
3. Remove the compressor
mounting bolts.
4. Carefully remove the
compressor from chassis.
