INSTALLATION
Installation of Indoor Unit
Hang the Indoor Unit
1. Put the bound pipes in the wall pipe and then make them pass through the wall hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.

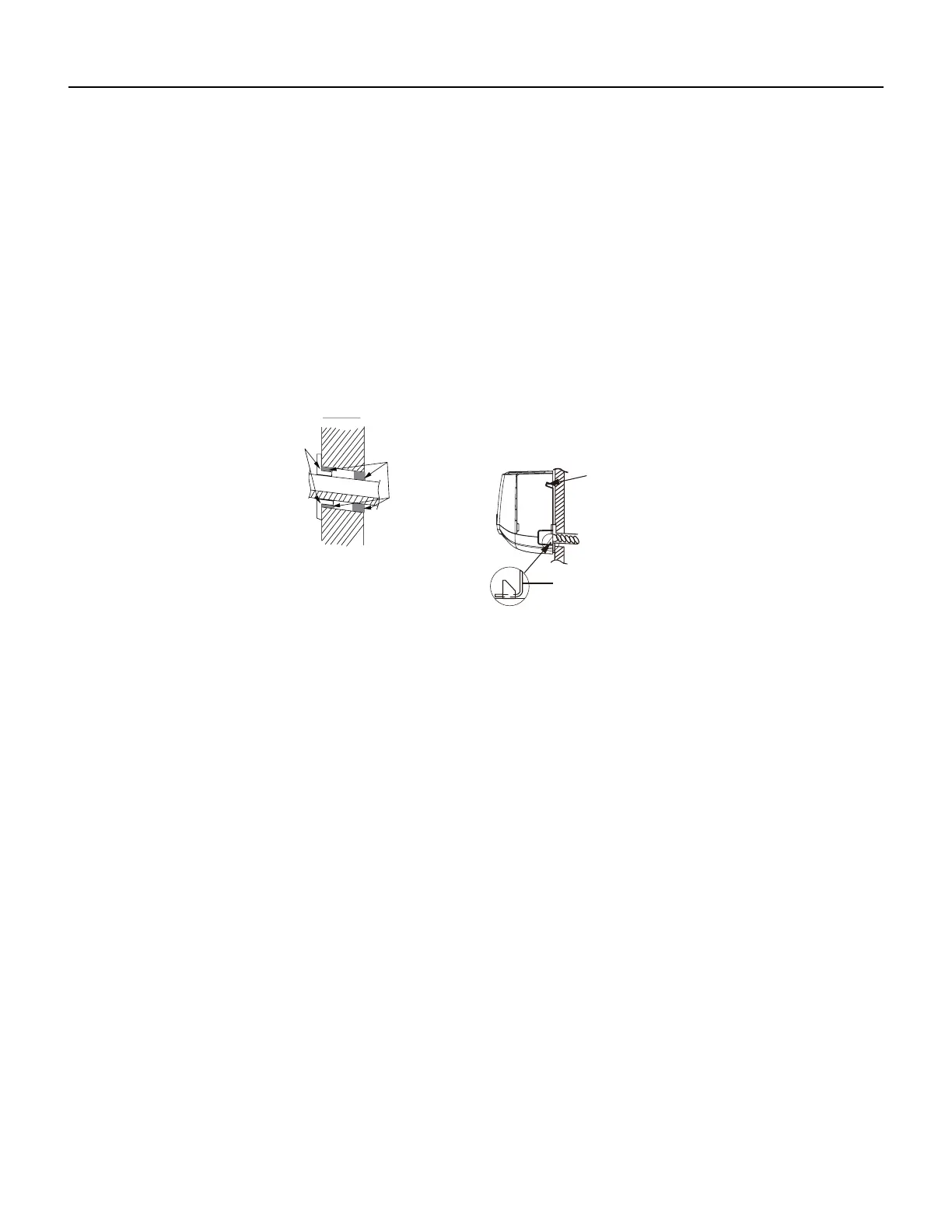

4. Fix the wall pipe. (As show in Fig.16)
5. Check if the indoor unit is installed rmly and closed to the wall.(As show in Fig.17)
NOTE
Do not bend the drain hose too excessively in order to prevent blocking.
Indoor
Outdoor
Wall pipe
Sealing gum
Upper hook
Lower hook of
wall-mounting frame
Fig.16
Fig.17
To Next Page
