Friedrich MRM09Y1J Service & Parts Manual

78 PB
COMPONENTS TESTING

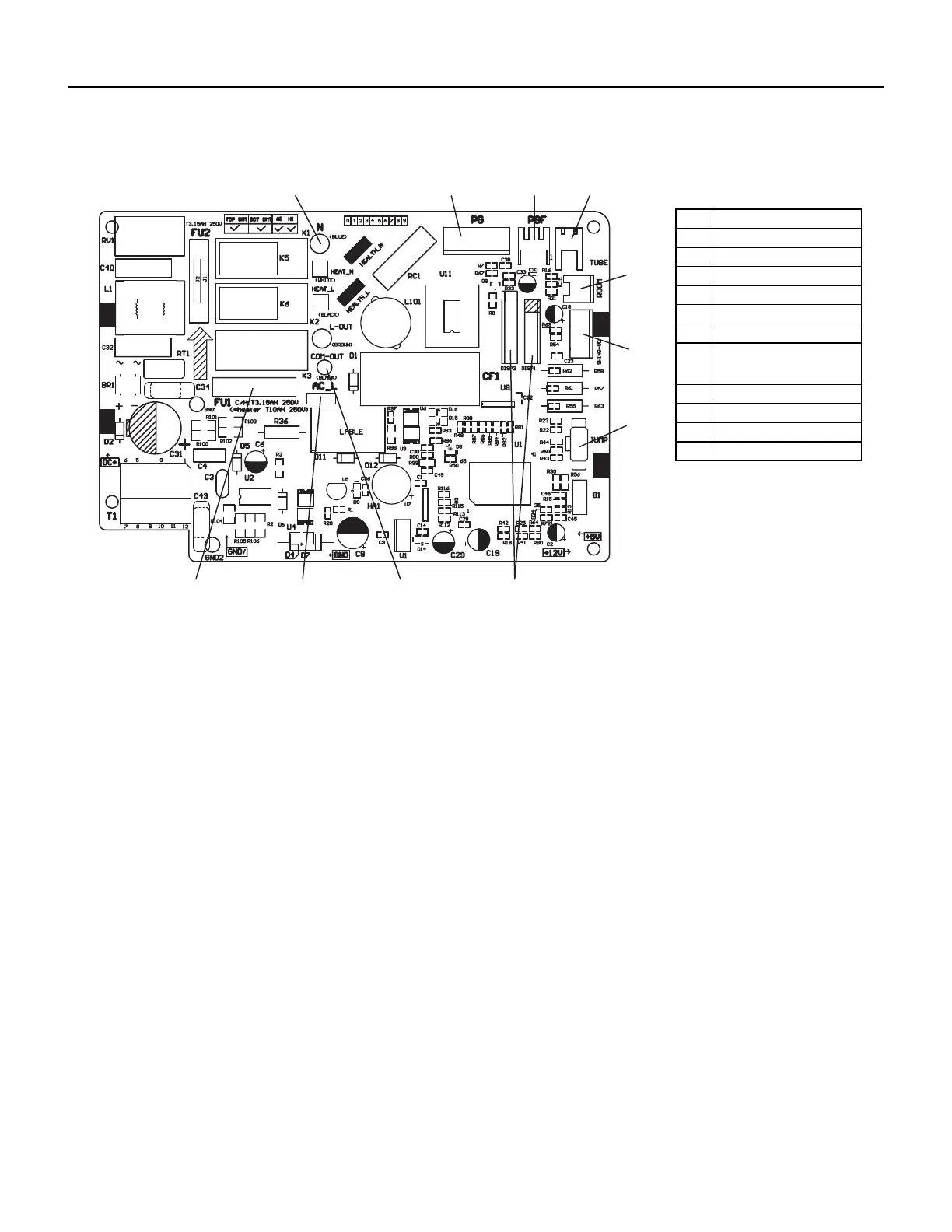

Figure 701
9-12k Indoor Unit Printed Circuit Board Identication
1
2
3
4
5
6
7
8
9
10
11
NO. Name
1 Fuse
2 Live wire
3 Communication wire
4 Display interface
5 Jumper cap
6 Up and down swing
7
8
Ambient temperature
sensor
Temperature sensor
9 PG feedback
10 PG motor
11 Neutral wire
GRJ836-A4 V1.3
2013/3/18/13
U13
