69 PB
Removal
Outdoor Unit

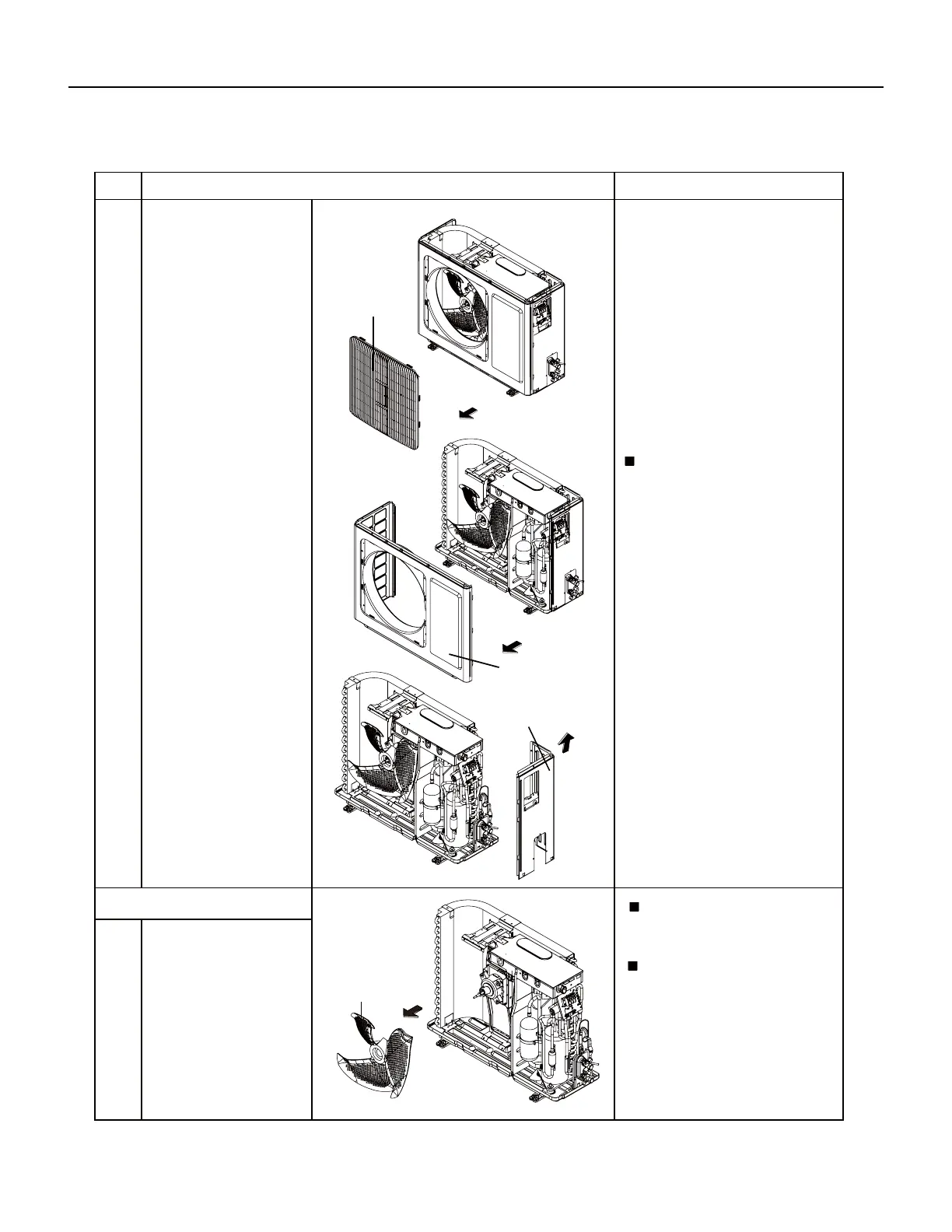

3.Remove the fan motor
Twist off the screws
connecting the grille and the
panel with screwdriver and
then remove the grille.
Twist off the screws
connecting the panel and the
motor support, chassis and
grille with screwdriver and
then remove the outer case.
Twist off the screws
connecting right side plate
and end plate of condenser,
grille, valve support and
electric box, and then
remove the right side plate.
The screw has reverse
winding.
Remove the propeller
fan.
axial flow blade
Lift the front panel and
remove it while pushing the
right side panel inwards.
Step Procedure Points
PointsProcedure
Steps
grille
b
c
d
a
cabinet
Twist off the nut on blade with
wrench and then remove the
axial flow blade.
right side plate
To Next Page
