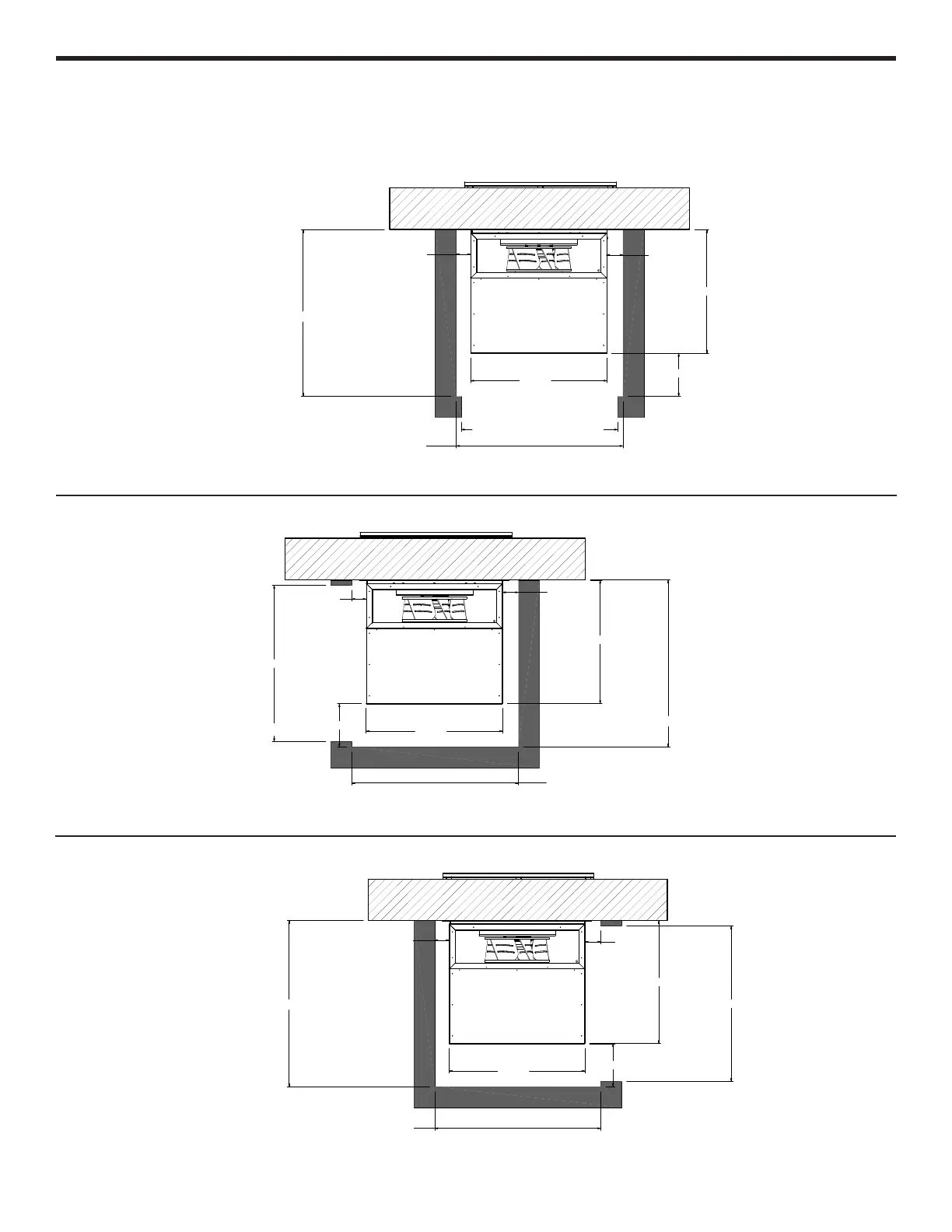

Installation Orientations
OUTSIDE GRILL
OUTSIDE WALL
Front Installation-Top View
30Access Door Cut Out =
32” ( Min. Required Inside Closet Dimension )
6Min. Required
3Min.
3Min.
31 1/8” ( Min. Required Inside Closet Dimension )
26 1/8
25 1/8”
OUTSIDE GRILL
OUTSIDE WALL
Left Installation-Top View
26 1/8
25 1/8
33 1/2” ( Min. Required Inside Closet Dimension )
30Access Door Cut Out =
3Min.
33 1/8( Min. Required Inside Closet Dimension )
Min. 4 1/2”
Min. 8
(Required)
OUTSIDE GRILL
OUTSIDE WALL
Right Installation-Top View
26 1/8”
25 1/8
33 1/8( Min. Required Inside Closet Dimension )
33 1/2” ( Min. Required Inside Closet Dimension )
Min. 4 1/2”
3Min.
Min. 8”(Required)
30Access Door Cut Out =
