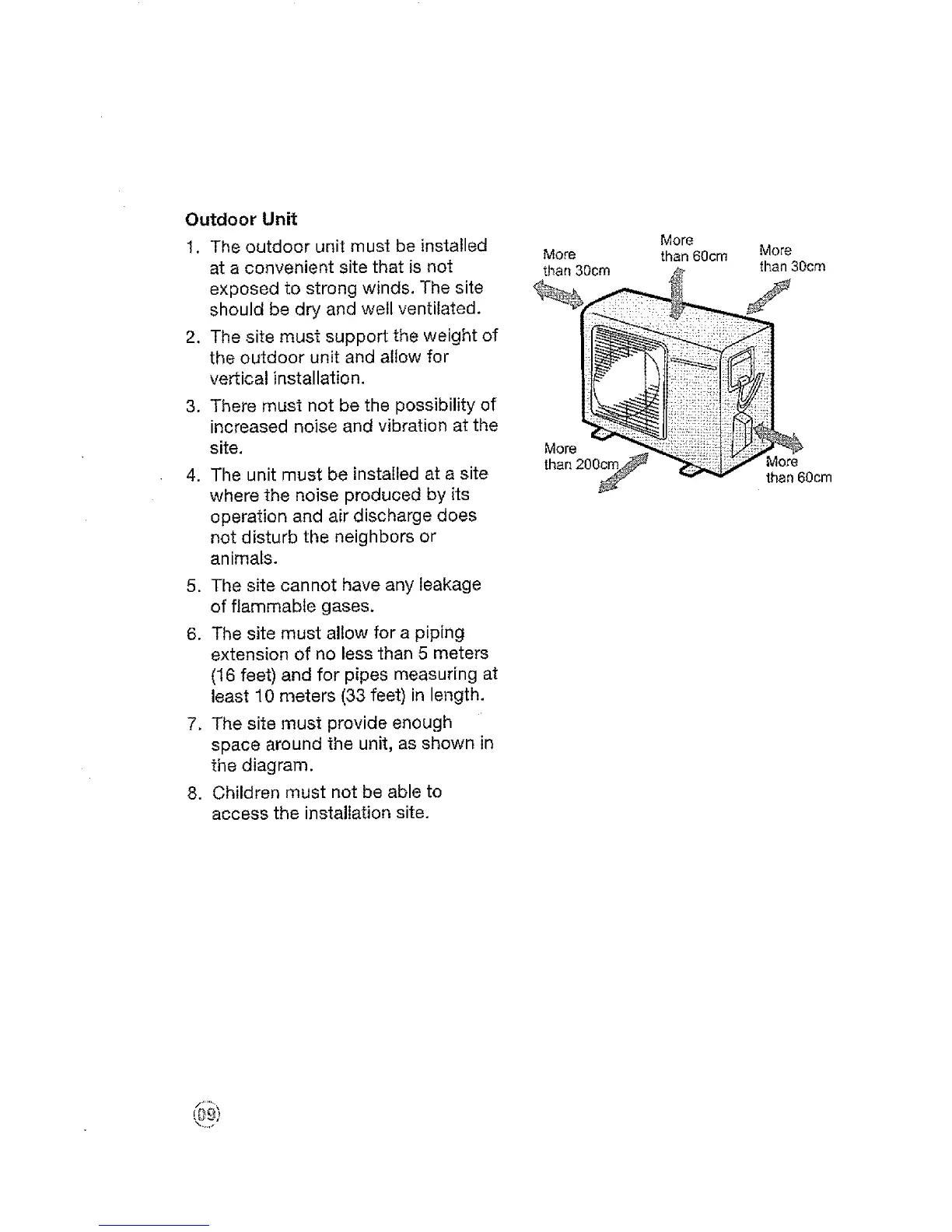

Outdoor Unit
1, The outdoor unit must be installed
at a convenient site that is not
exposed to strong winds. The site
should be dry and well ventilated.
2. The site must support the weight of
the outdoor unit and allow for
vertical installation.
3. There must not be the possibility of
increased noise and vibration at the
site.
4. The unit must be installed at a site
where the noise produced by its
operation and air discharge does
not disturb the neighbors or
animals.
5. The site cannot have any leakage
of flammable gases.
6. The site must allow for a piping
extension of no less than 5 meters
(16 feet) and for pipes measuring at
least 10 meters (33 feet) in length.
7, The site must provide enough
space around the unit, as shown in
the diagram.
8. Children must not be able to
access the installation site.
More
than 30cm
Mor_
than 200 S
More
than60cm More
than30cm
f
t??il !i
More
then 60cm
