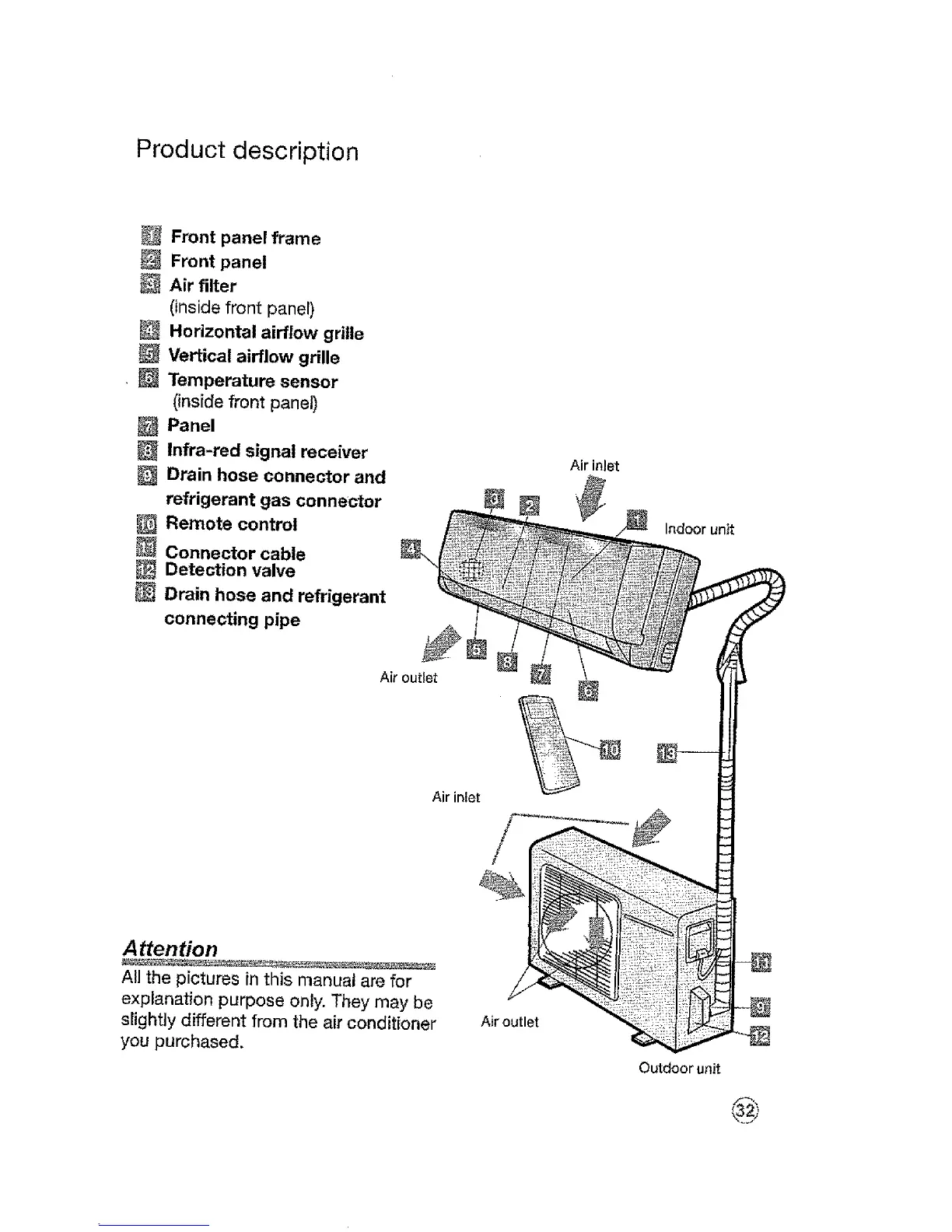

Product description
Front panel frame
Front panel
Air filter
(inside front panel)
Horizontal airflow grille
Vertical airflow grille
• _ Temperature sensor
(inside front panel)
Panel
Infra-red signal receiver
Drain hose connector and
refrigerant gas connector
Remote control
Connector cable
Detection valve
Drain hose and refrigerant
connecting pipe
Air iniet
#
Indoor
Air outlet
Air inlet
Attention
All the pictures in this manual are for
explanation purpose only. They may be
slightly different from the air conditioner
you purchased.
Air outlet
Outdoor unit
