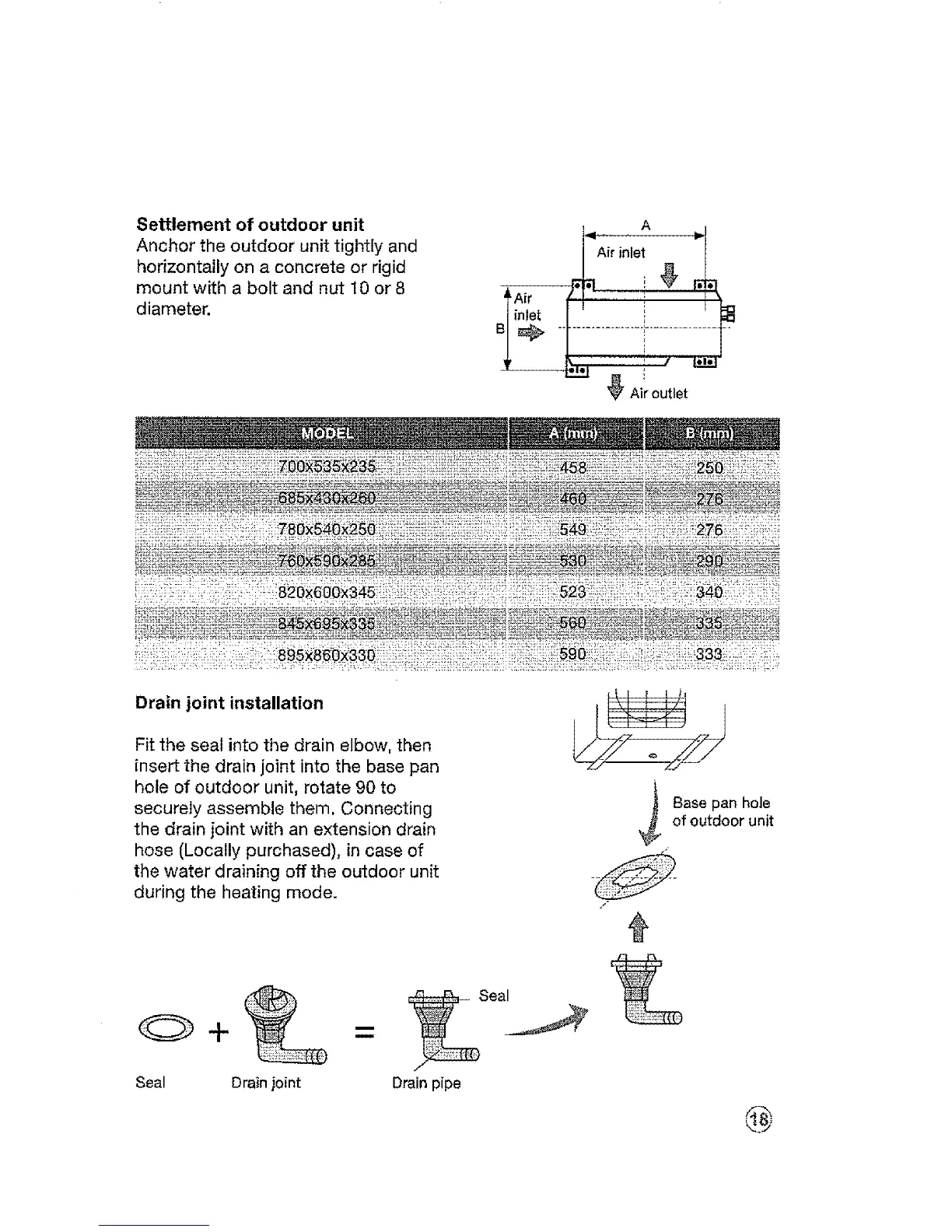

Settlement of outdoor unit
Anchor the outdoor unit tightly and
horizontally on a concrete or rigid
mount with a bolt and nut I0 or 8
d iameter,
A,r,n,et0
Air 'i'
i%
Drain joint installation
Fit the seal into the drain elbow, then
insert the drain joint into the base pan
hole of outdoor unit, rotate 90 to
securely assemble them, Connecting
the drain joint with an extension drain
hose (Locally purchased), in case of
the water draining off the outdoor unit
during the heating mode.
/*
Seal Drain joint Drain pipe
Base pan hole
of outdoor unit
@
