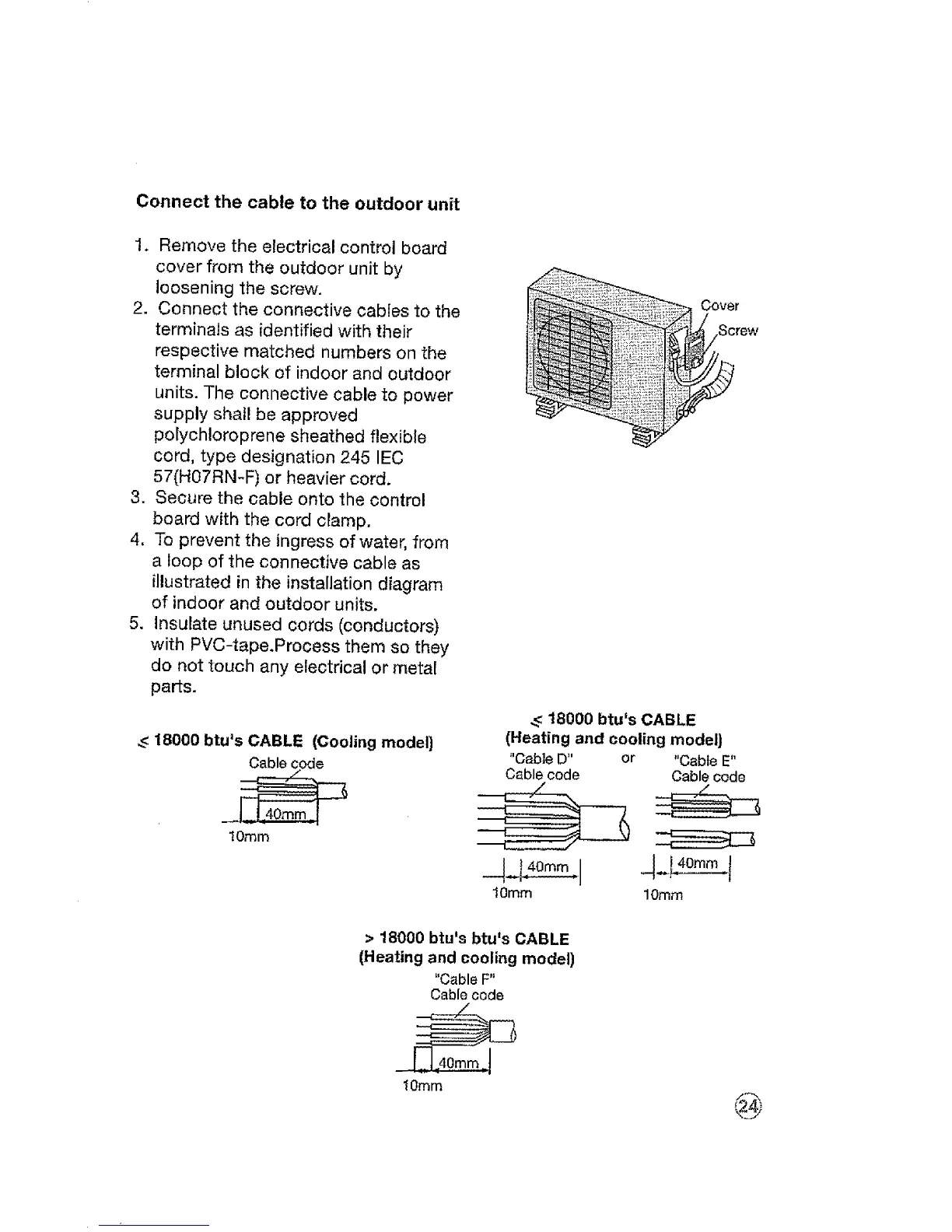

Connect the cable to the outdoor unit
1. Remove the electrical control board
cover from the outdoor unit by
loosening the screw.
2. Connect the connective cables to the
terminals as identified with their
respective matched numbers on the
terminal block of indoor and outdoor
units. The connective cable to power
supply shall be approved
polychloroprene sheathed flexible
cord, type designation 245 IEC
57(H07RN-F) or heavier cord.
3. Secure the cable onto the control
board with the cord clamp,
4. To prevent the ingress of water, from
a loop of the connective cable as
illustrated in the installation diagram
of indoor and outdoor units.
5. Insulate unused cords (conductors)
with PVC-tape.Process them so they
do not touch any electrical or metal
parts.
_<18000 btu's CABLE (Cooling model)
Cablecode
!0turn
Cover
;crew
_<18000 btu's CABLE
(Heating and cooling model)
+'CableD" or "Cable E"
Cable code Cable code
10ram 10ram
> 18000 btu's btu's CABLE
(Heating and cooling model)
"Cable F"
Cable code
10turn
@
