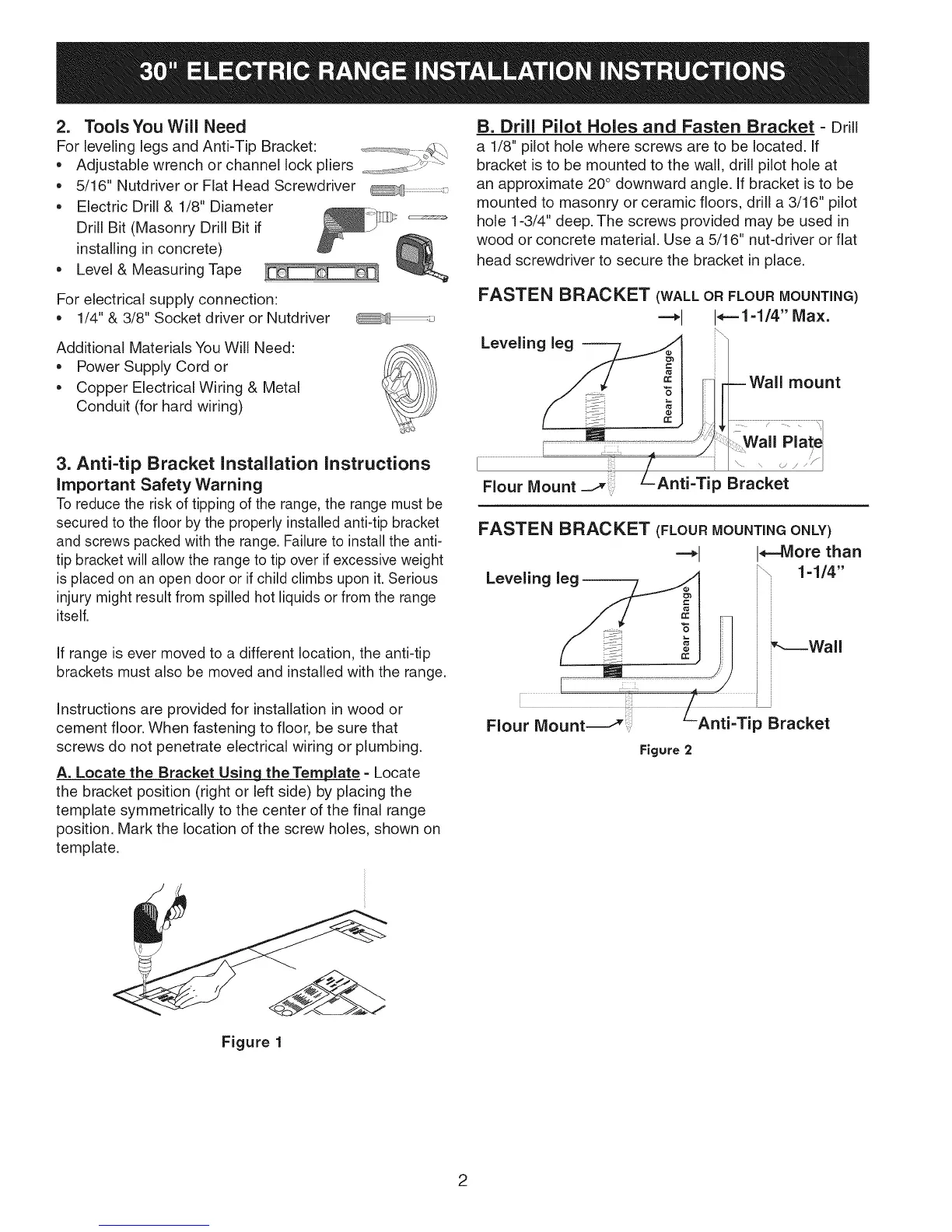

2. Tools You Will Need
For leveling legs and Anti-Tip Bracket: _-_-_., _:_,
* Adjustable wrench or channel lock pliers ::_ _
. 5/16" Nutdriver or Flat Head Screwdriver _:
. Electric Drill & 1/8" Diameter
Drill Bit (Masonry Drill Bit if
installing in concrete)
. Level & Measuring Tape
For electrical supply connection:
• 1/4" & 3/8" Socket driver or Nutdriver
Additional Materials You Will Need:
• Power Supply Cord or
• Copper Electrical Wiring & Metal
Conduit (for hard wiring)
3. Anti-tip Bracket Installation Instructions
Important Safety Warning
To reduce the risk of tipping of the range, the range must be
secured to the floor by the properly installed anti-tip bracket
and screws packed with the range. Failure to install the anti-
tip bracket will allow the range to tip over if excessive weight
is placed on an open door or if child climbs upon it. Serious
injury might result from spilled hot liquids or from the range
itself.
If range is ever moved to a different location, the anti-tip
brackets must also be moved and installed with the range.
Instructions are provided for installation in wood or
cement floor. When fastening to floor, be sure that
screws do not penetrate electrical wiring or plumbing.
A. Locate the Bracket Using the Template- Locate
the bracket position (right or left side) by placing the
template symmetrically to the center of the final range
position. Mark the location of the screw holes, shown on
template.
B. Drill Pilot Holes and Fasten Bracket - Drill
a 1/8" pilot hole where screws are to be located. If
bracket is to be mounted to the wall, drill pilot hole at
an approximate 20 ° downward angle. If bracket is to be
mounted to masonry or ceramic floors, drill a 3/16" pilot
hole 1-3/4" deep. The screws provided may be used in
wood or concrete material. Use a 5/16" nut-driver or flat
head screwdriver to secure the bracket in place.
FASTEN BRACKET (WALL OR FLOURMOUNTING)
="_1 1_-1-1/4 '' Max.
Leveling leg --
_" mount
"6
I
\ \ (J / /_f°
Flour Mount p Bracket
FASTEN BRACKET (FLOUR MOUNTING ONLY)
--'*1 I_--tVlore than
"-, 1-1/4"
i
Leveling i
i
C Wall
Flour Mount -_ p Bracket
Figure 2
Figure 1
2
