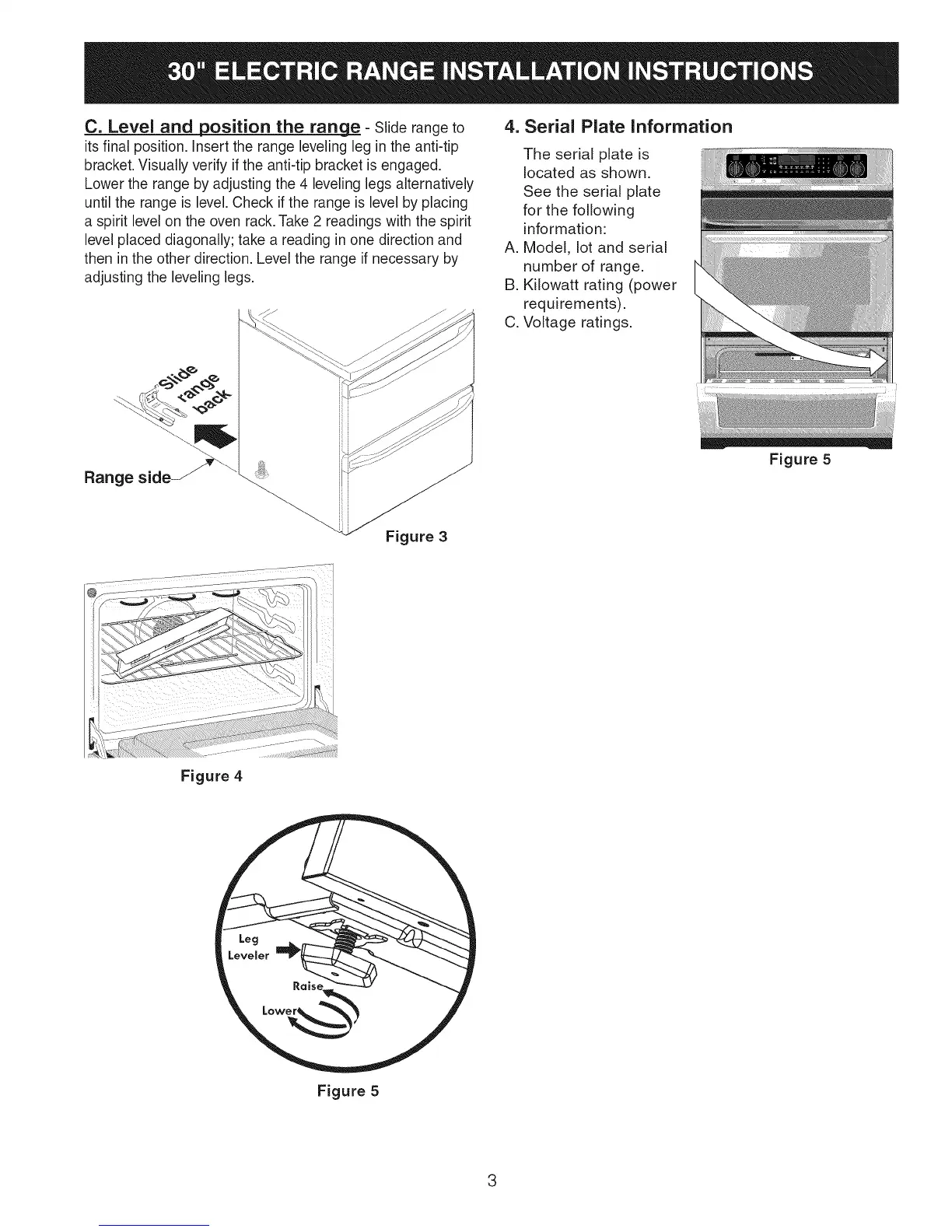

C. Level and position the range- Slide range to
its final position. Insert the range leveling leg in the anti-tip
bracket. Visually verify if the anti-tip bracket is engaged.
Lower the range by adjusting the 4 leveling legs alternatively
until the range is level. Check if the range is level by placing
a spirit level on the oven rack. Take 2 readings with the spirit
level placed diagonally; take a reading in one direction and
then in the other direction. Level the range if necessary by
adjusting the leveling legs.
4. Serial Plate Information
A.
B.
C.
The serial plate is
located as shown.
See the serial plate
for the following
information:
Model, lot and serial
number of range.
Kilowatt rating (power
requirements).
Voltage ratings.
Range
Figure 3
Figure 4
Leg_
Leveler
Figure 5
Figure 5
