Frigidaire FGMV205KB Installation Instructions

E
INSTALLATION INSTRUCTIONS
NOTE: THIS OVEN SHOULD BE ATTACHED TO AT LEAST ONE WALL STUD.
MOUNTING PLATE

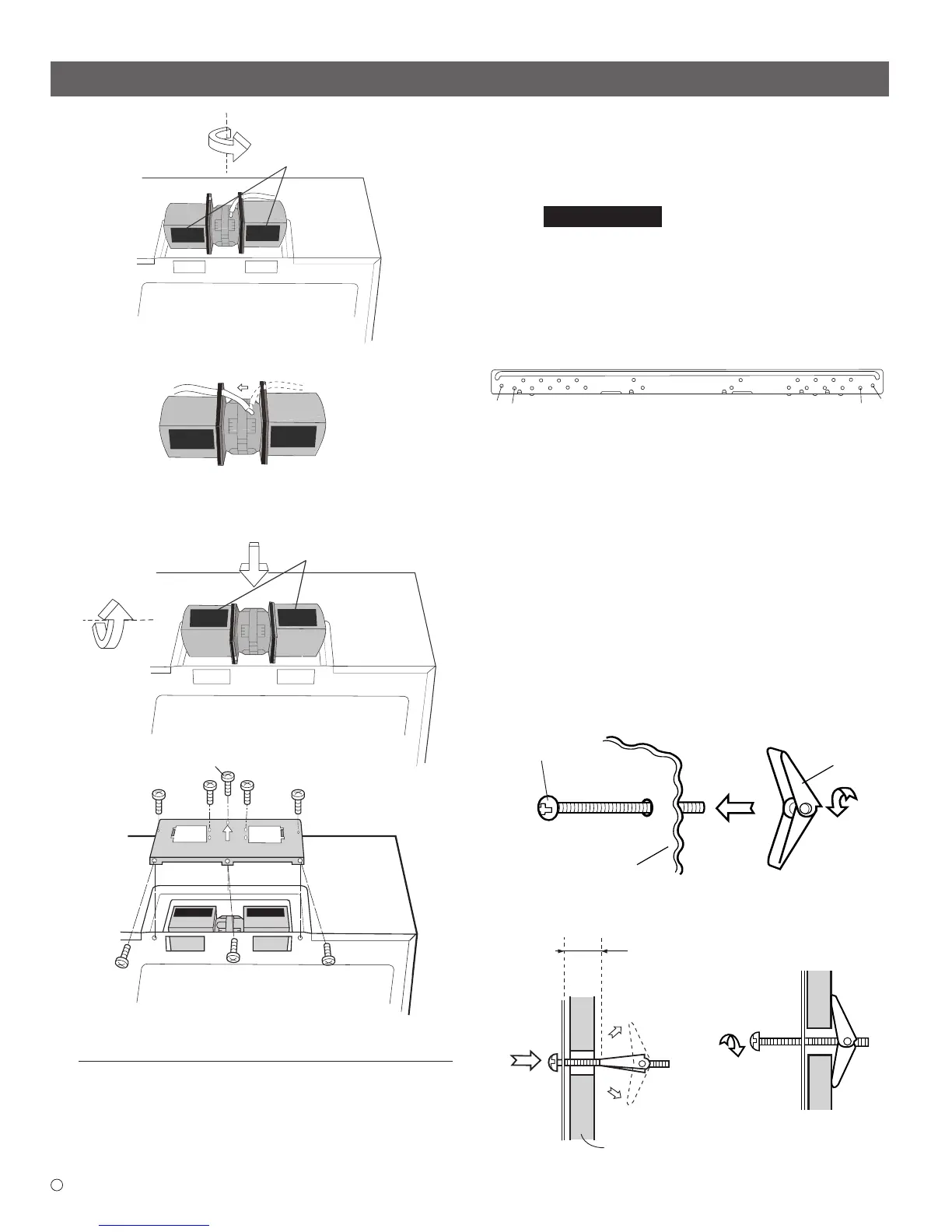

1. Separate Toggle Nuts, packed in the INSTALLATION
HARDWARE, from 4 Toggle Bolts.
2.
IMPORTANT
Use the mounting template provided
to Use wood screws to attach mounting plate to the
stud or studs. Use Toggle Bolts to attach mounting
plate through the holes at A, B, C and D UNLESS
THOSE HOLES ARE LOCATED ON THE STUD. Insert
one Toggle Bolt into A, B, C and D where appropriate
(these correspond to holes of the Wall Template) and
put the Toggle Nuts onto the Toggle Bolts. See Figure
15. Refer to instructions in Wall Template.
3. Position the Mounting Plate with the Toggle Bolts attached
at the wall location and insert Toggle Nuts and Bolts through
the holes in the wall with the Toggle Nuts closed. See Figure
16. Use Wood Screws to attach the Mounting Plate to
studs.
NOTE: Before insertion, be sure you leave a space more than
the thickness of the wall between the Mounting Plate and
the end of each of the Toggle Nuts (in the closed position).
If you do not leave enough space, the Toggle Nut will not
be able to open on the other side of the wall. Also, once
a Toggle Nut opens, it cannot be withdrawn from the hole;
therefore make sure all of the Toggles are in the correct
position before insertion.
4. Align the Mounting Plate carefully and hold in position
while tightening Toggle Bolts. Pull Toggle Bolt toward
you and turn clockwise to tighten. See Figure 17.
Space more
than wall
thickness
Figure 16
Figure 17
Wall
9 OVEN INSTALLATION
THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING
TO THE MOUNTING INSTRUCTIONS FOUND ON BOTH TEMPLATES.
THE NEXT STEP IS TO READ AND FOLLOW MOUNTING INFORMATION
ON BOTH TOP CABINET AND WALL TEMPLATES.
Figure 13
(A) Rotate 90°
(B)
Fan Blade Openings
Figure 14
SUITABLE FOR USE ABOVE GAS OR ELECTRICAL
COOKING EQUIPMENT 36 INCHES OR LESS WIDE
WARNING TO REDUCE THE RISK OF FIRE AND
ELECTRICAL SHOCK,INSTALL AT LEAST 13-3/16 INCHES
ABOVE A RANGE (OR COOK TOP)
A
C
D
B
Rotate 180°
Fan Blade Openings
Figure 12B
Figure 12C
Change the position of wire to left side hole
(B) (A)
Figure 15
Toggle Nut
Toggle Bolt
Mounting Plate
6
(A)
ORM A196 INST [USA&Canada] [01ENE6 E6ORM A196 INST [USA&Canada] [01ENE6 E6 9/1/10 8:48:36 AM9/1/10 8:48:36 AM

Frigidaire FGMV205KB Specifications

General

Style	Over-the-Range
Color	Black
Total Capacity	1.7 Cu. Ft.
Temperature Settings	-
Cooking Programms	Grill
Power Levels	9
Fan Speeds	2 Speed
Venting Type	Convertible
Special Features	Child Safety Lock
Accessories	Metal Rack
Max Power Consumption	1650 W
Microwave Power	1000 W
Grill Power	-
Convection Power	-
Voltage	120 V
Frequency	60 Hz
Current	15 A

Weight and Dimensions

Depth	16 3/4 in
Height	17 1/16 in
Width	29-15/16 in
Net Weight	69 Lbs
