E
INSTALLATION INSTRUCTIONS
7

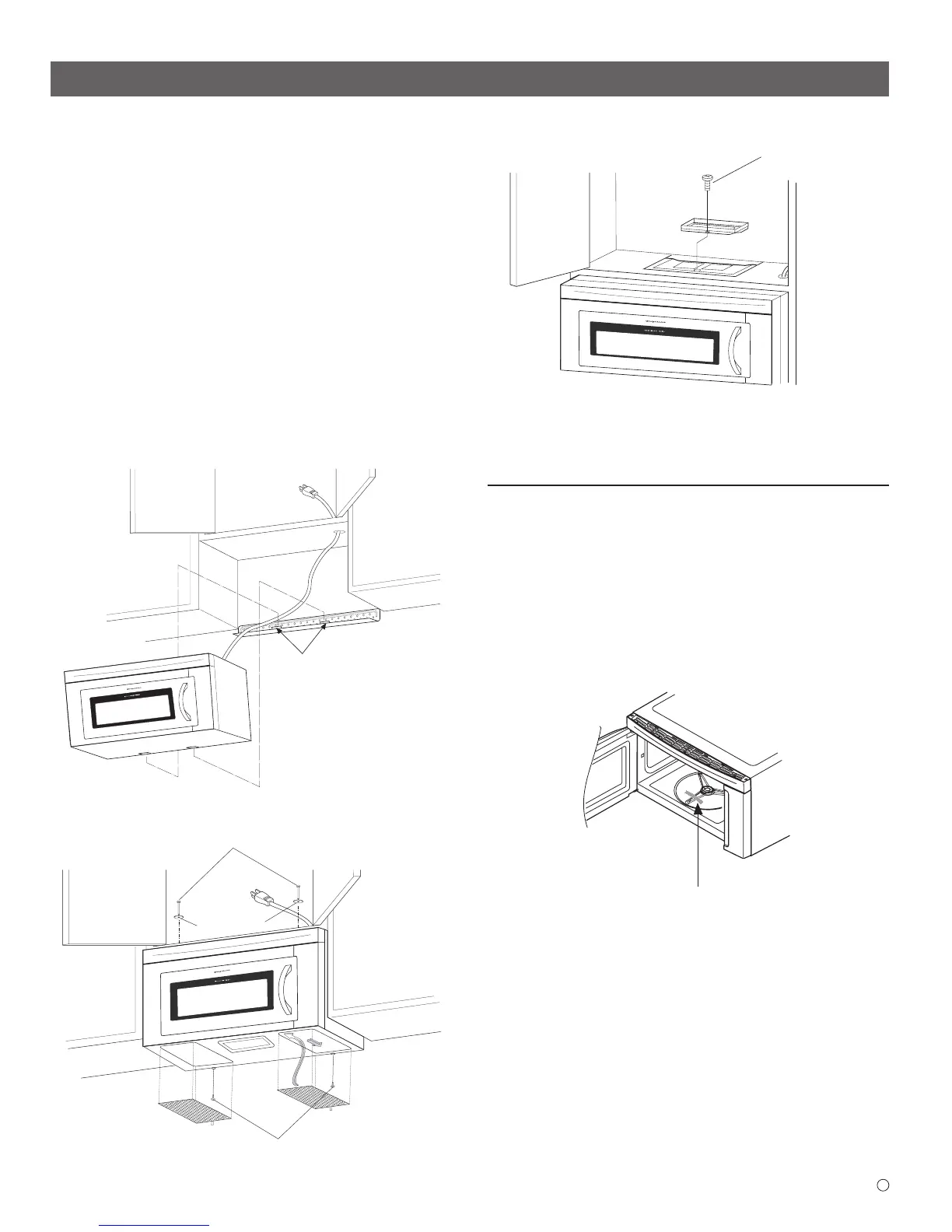

MOUNTING OVEN TO THE WALL
Two people are recommended to attach the Microwave Oven/
Hood to the Mounting Plate.
1. Thread the power supply cord through the hole made in the
bottom of the top cabinet.
2. Install the oven by tilting it forward and sliding it onto two
tabs of the Mounting Plate. Rotate the oven up so it rests
against the wall. See Figure 18 on page 7.
3. Use the two Top Cabinet Screws and two Flat Washers,
supplied in the INSTALLATION HARDWARE, to attach the
unit to the top cabinet. See Figure 19 on page 7.
4. Secure the bottom of the oven to the Mounting Plate by using
two Tapping Screws 4 x 8 mm from the INSTALLATION
HARDWARE. See Figure 19 on page 7.
5. (For Vertical Exhaust Only)
Attach the Exhaust Damper Assembly to the fan Cover
Bracket on the top of the outercase cabinet by sliding it into
the slits in the same direction as the allow using screw (A)
which removed at (C) VERTICAL EXHAUST STEP 1 on
page 5. See Figure 20 on page 7.
Tapping Screws
Top Cabinet Screws
Flat Washers
CHECKLIST FOR INSTALLATION
1. Make sure the unit has been installed according to all of the
Installation Instructions and the Wall and Top Cabinet Templates.
2. Plug in the power cord.
3. Keep these Installation Instructions.
NOTE:
Make sure to remove the tape at the turntable support before
operation. See fi gure 21.
Remove this tape before operation.
Figure 21
Tapping Screw (A)
Figure 18
Tabs
Figure 19
Figure 20
