FRIGOMAT GX4Kompact, GX6, GX8 M04.42026 R.2019.05.30 xxiii
EN
IT
FR

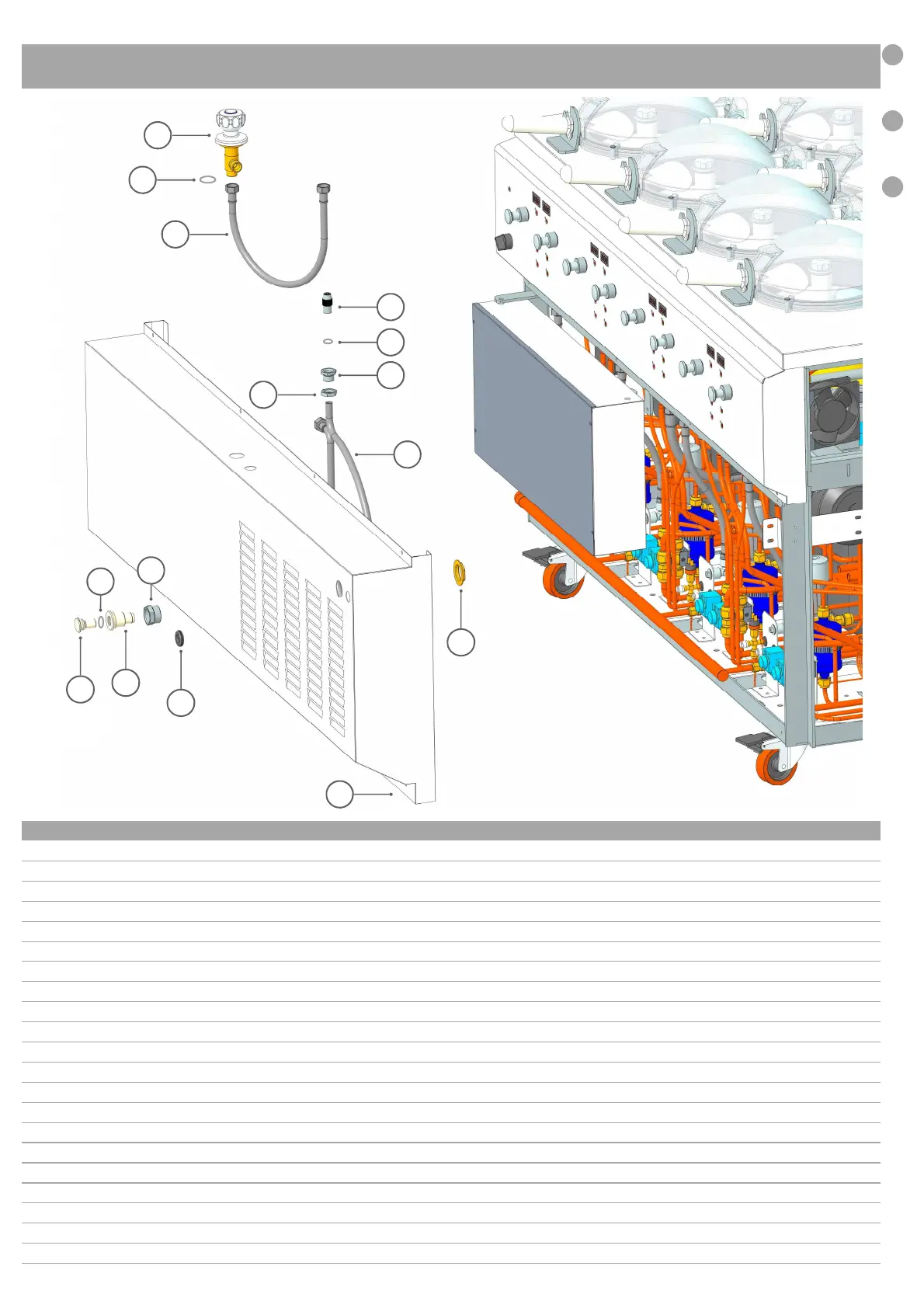

TAV 19 : (GX8) Componenti impianto lavaggio ● Electrical system components, water discharge ● Composants du système de lavage ● Wa-
schen von Systemkomponenten ● Componentes del sistema de lavado
N. COD. DESCRIZIONE DESCRIPTION DESCRIPTION BESCHREIBUNBG DESCRIPTION
1 A10.007 Rubinetto acqua Water tap Robinet d'eau Wasserhahn Grifo de agua
2 P06.085 Guarnizione Gasket Joint d'étanchéité Dichtung Junta de sellado
3 H05.43295 Tubo flessibile Flexible hose Tuyau flexible Flexibler Schlauch Manguera flexible
4 A10.003 Terminale Shower Terminal Terminal Duschendteil Terminal
5 P06.011 Guarnizione Gasket Joint Schlauchdichtung Junta
6 A10.005 Manicotto Sleeve Manchon Muffe Manguito
7 V13.037 Dado Nut Écrou Sechskantmutter Dado
8 A10.008 Tubo doccia Shower hose Tuyau douche Duschschlauch Tubo ducha
9 P19.42372 Tappo scarico Drain Plug Bouchon vidange Ablassschraube Tapón de drenaje
10 P10.020 OR 3043 OR 3043 OR 3043 OR 3043 OR 3043
11 P19.42371 Raccordo scarico Drain Connection Raccord vidange Drainageansch. Conexión
12 L19.42373 Passaggio scarico Drain Bushing Manchon vidange Abgashüls Buje de drenaje
13 V13.42349 Dado Nut Écrou Sechskantmutter Dado
14 P02.42380 Anello in gomma Rubber Ring Anneau caoutch. Gummiring Anillo de goma
15 A02.43176 Pannello ant. inf. Front Lower Panel Panneau avant inf Untere Frontplatte Panel front. Inf.
1
3
2
7
4
6
8
5
9
11
10
12
14
13
15
