Ports, Interfaces, Buttons and LEDs
FRITZ!Box 7490 13
2 Ports, Interfaces, Buttons and LEDs
This chapter describes the ports, interfaces, buttons and LEDs of the
FRITZ!Box.
2.1 Ports and Interfaces

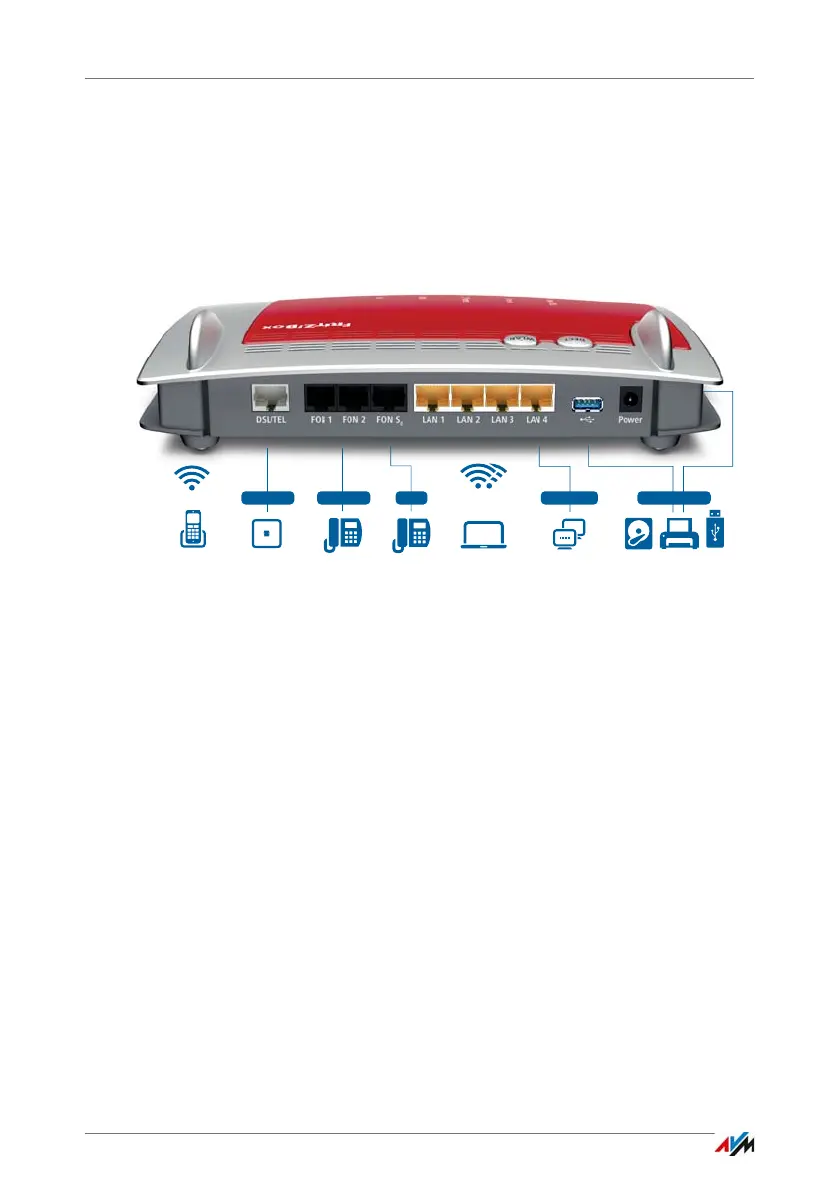

Possibilities for connecting the FRITZ!Box
• DSL/TEL
Socket for connecting to ADSL2+ and VDSL as well as to
the telephone network (analog landline network or
ISDN)
• FON1 and FON2
2 RJ11 sockets for connecting analog telephones and
other analog terminal devices
• FON S
0
RJ45 socket for connecting ISDN telephones or tele-
phone systems (PBXs)
• LAN 1—LAN 4
4 gigabit Ethernet ports (10/100/1000 Base-T) for con-
necting computers and other network devices like game
consoles and network hubs
Printer, storage media,
UMTS/HSPA modem and USB devices
DSL and telephone line
(analog/ISDN)
Notebook, PC, smartphone
video/TV streaming
FRITZ!Fon or other
DECT telephones
DSL/VDSL 4 x Gigabit
WLAN AC+N
2,4 GHz and 5 GHz
DECT
LAN, 1 Gbit/s, PC,
game console, network
Telephone,
telephone system
ISDN
Analog telephones,
answering machine, fax
2 x analog
2 x USB 3.0/2.0
