FUNCTIONS CONTROL
BRAKE SYSTEM

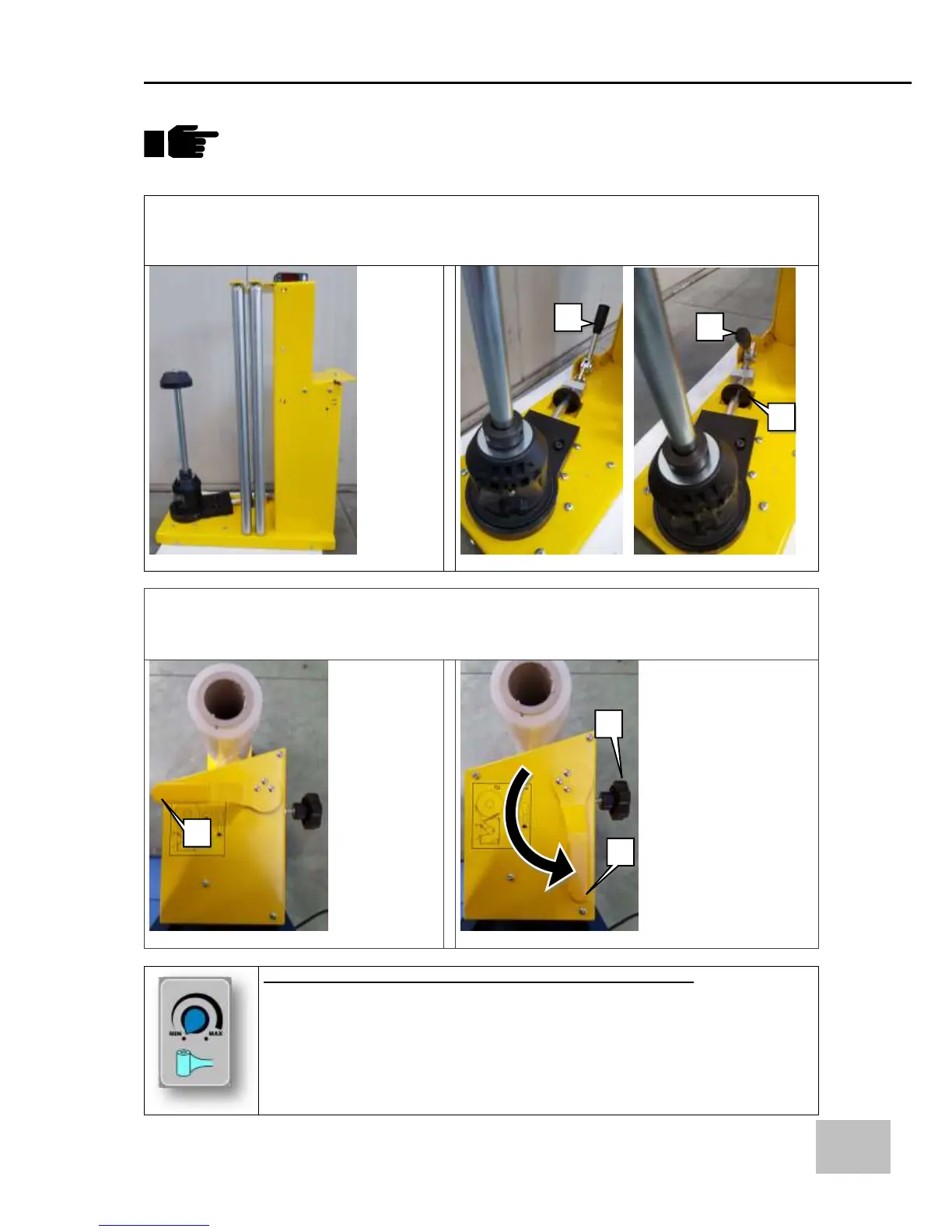

BRAKE SYSTEM in “Carriage with roll core brake” (Fig. 1 / 2)
- Position 1 - Brake open, spool holder runs free
- Position 2 - Brake closed, spool holder is blocked
- Rotate black wheel (3) to increase / decrease the friction
Fig. 1 Fig.2
BRAKE SYSTEM in “Carriage with one roll brake” (Fig. 1 / 2)
- Position 1 – Brake open, black roll inside runs free
- Position 2 – Brake closed, black roll inside is blocked
- Rotate black wheel (3) to increase / decrease the friction
Fig. 1
Fig. 2
Stretch film carriage (available only with carriage pre-stretch).
Potentiometer for adjusting tension film carriage.
1
1
2
2
3
3
