CONTROL PANEL
Emergency button, to push it ONLY in case of emergency, NOT use like STOP!
INDICATIONS
CYCLE ACTIVE, START ASCENT
An acoustic signal device has been installed in the electrical panel.
This signal acoustic actives when switch on the machine (it make an long acoustic signal and at the
same time the buzzer lights up) and before cycle start (lasts a few seconds as a warning each time
the automatic program is run). The operator will therefore be able to exit the danger zone before
the machine starts operation.
The machine will start operating only after the end of acoustic signal of the start.
MACHINE ALARMS / RESET
If the emergency stop or any other safety device is triggered, the wrapping machine’s automatic
program will stop; this can be ascertained also listening and looking the flashing buzzer on the control
panel. Wrapping can resume only after having removed the cause of the error and pressed the
Reactivation button on the electrical cabinet. By doing this, the “fault” is reset and power is restored,
obviously assuming that the emergency button has been released or that the cause of the “fault” that
triggered the Error has been solved.

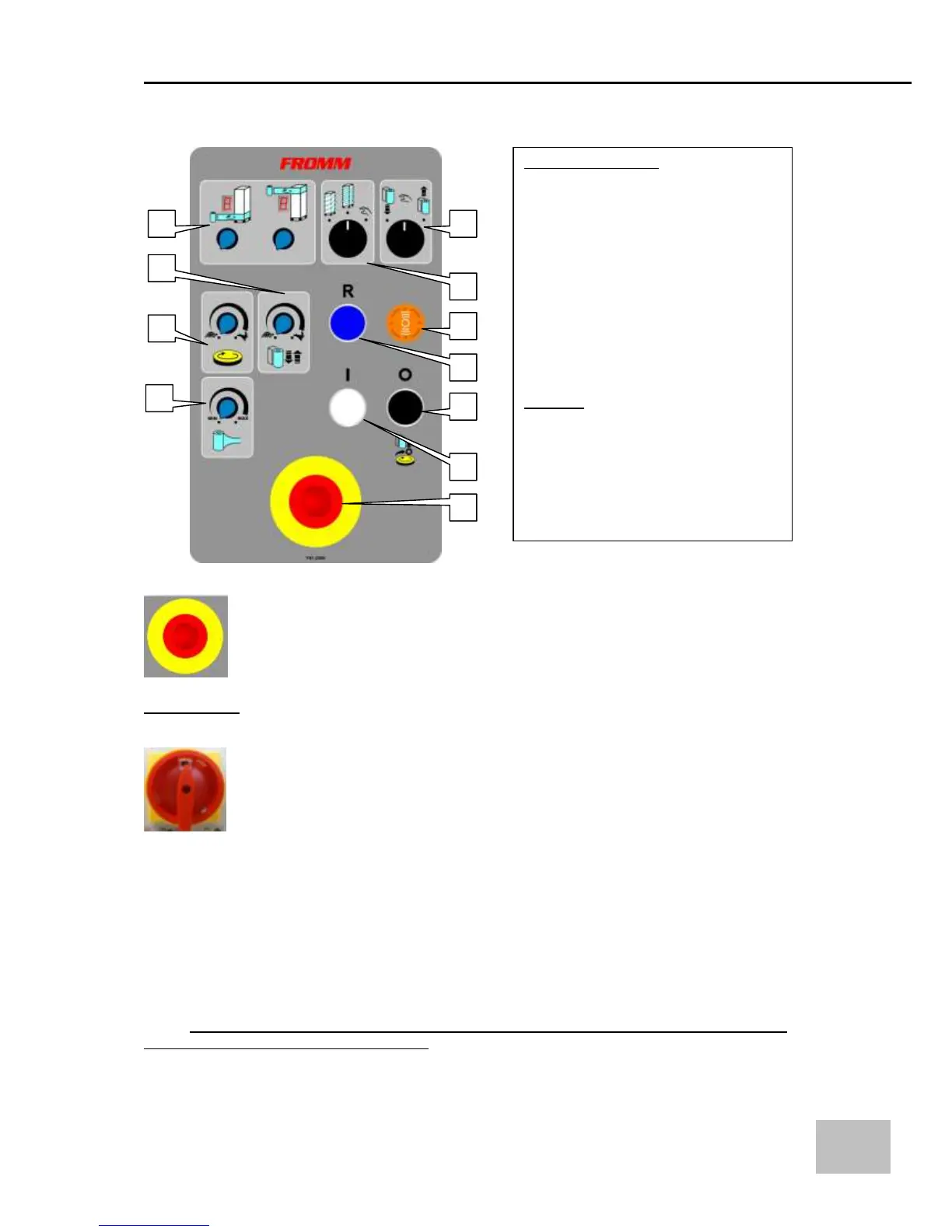

FS360 Control panel
A= Bottom-Top wrapping;
B= Double-Single-Manual wrapping.;
C= Manual movement carriage down-up;
D= Speed turntable;
E= Speed carriage;
F= Stretch
(available only with Carriage pre-stretch);
G= Buzzer/Warning light
H= Reactivation;
I= Stop;
L= Start;
M= Emergency button.
ERRORS
E1: Fault inverter
E2: Film brake
E3: Safety contact
E4: No pallet detect
E5: Safety horseshoe
E6: Turntable time out
E7: Belt tension
