8.2 Exchange of cutter, welding stop gripper and welding gripper
Disassembling
• Unscrew cover P32.1211 and remove it;
• Unscrew end cover P32.1238 and remove it;
• Remove security ring N2.1118 and pull handle shaft P32.1415 out of the tool.
This is loosening the lever P32.1414;
• Tilt down the handle lever P32.1212 and remove it from the tool;
• Don’t loosen screw N1.1553 at the coupler P32.1250.
• Disassemble the security ring N2.1121 from the coupler P32.1250, remove the coupler;
• Pull out the centering sleeve P32.1208 from the guide case to left, disassemble the guide case;
• Pull out the pressure spring N2.5237 with a screw driver from the cutter P32.1204;
• Remove the cutter from the driving pin P32.1032;
• Disassemble the screws N1.1305, lift slightly the welding stop gripper P32.1203 and the steel insert and
remove them from the tool;
• Push the steel insert without welding stop gripper under the welding gripper P32.1053 until it touches the
parallel pin N2.2110;
• Press down lever P32.1406;
• Disassemble the safety ring N2.1121 from the bolt P32.1028, remove the bolt from the welding gripper;
• Press in coupler P32.1410 in order to release the lever P32.1406 again;
• Pull out the steel insert with care to right under the welding gripper;
• Disassemble the security rings N2.1121 from the driving pin P32.1032, remove the driver P32.1035 from
the driving pin;
• Lift the rocker P32.1024 behind the welding gripper with a screw driver, remove the welding gripper
together with the ball cage P32.1027 and the balls N3.1702 from the tool;
• Lower the rocker, remove the thrust piece P32.1029 from the tool.

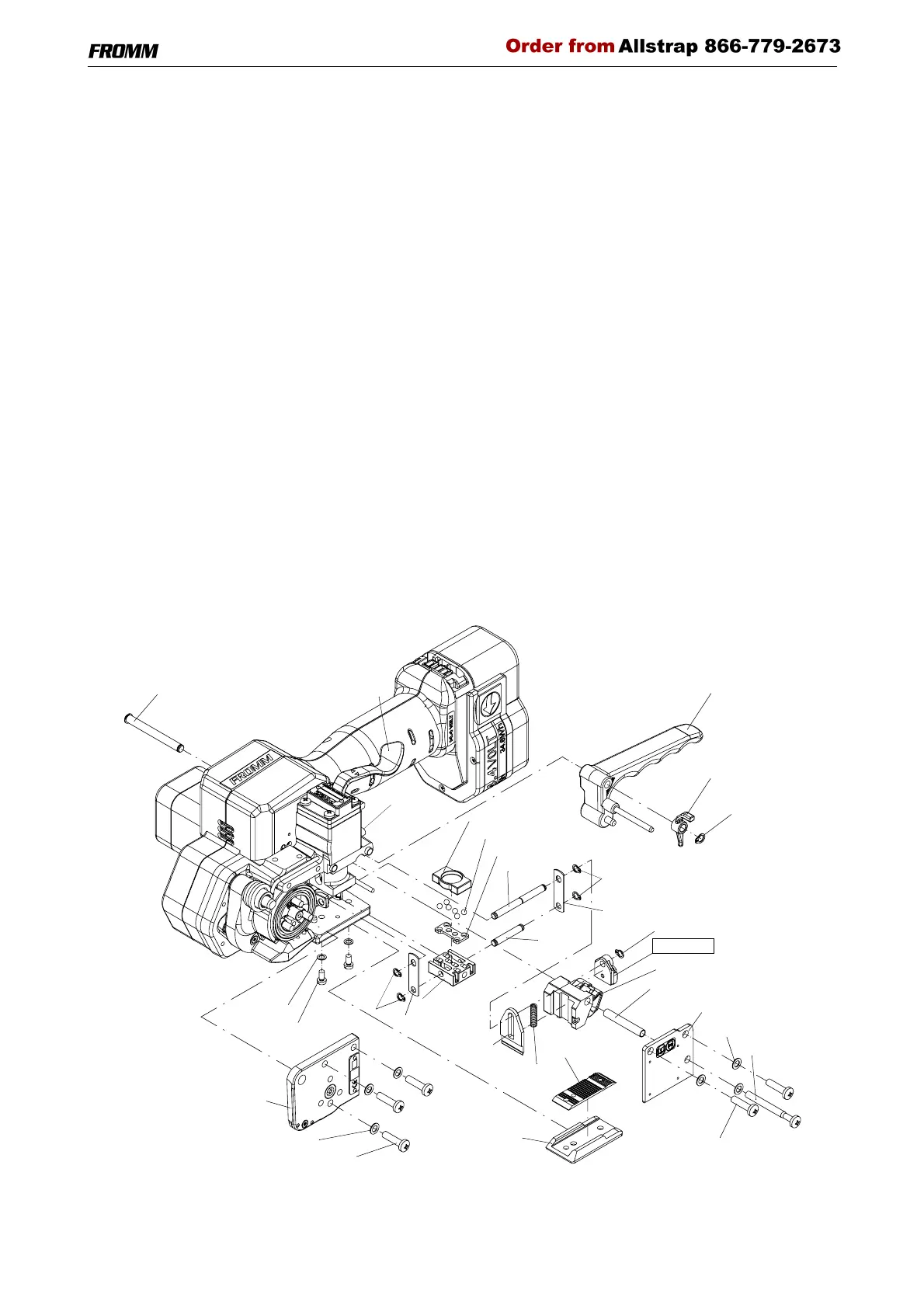

P32.1212
P32.1415
N2.1121
P32.1035 ➂
N2.1121
P32.1035 ➂
N1.1904
N1.1929
N1.6503
P32.1211
P32.1208
Guide case
P32.1250
N2.1121
➂ P32.1204
N2.5237
P32.1028 ➅
P32.1027 ➄
6 x N3.1702 ➄
Steel insert
P32.1203
➁ N1.1305
N1.6504
P32.1053 ➄
P32.1238
N1.1904
N1.6503
N2.1118
P32.1414 ➂
P32.1032
P32.1410
P32.1406
➁ Loctite 222
➂ ESSO Beacon 2
➄ Klüber Isoflex Alltime SL2
➅ Klüber Isoflex NBU 15
P32.1029 ➄
