Fromm P328 - 1.4.7 Assembly information

1-13

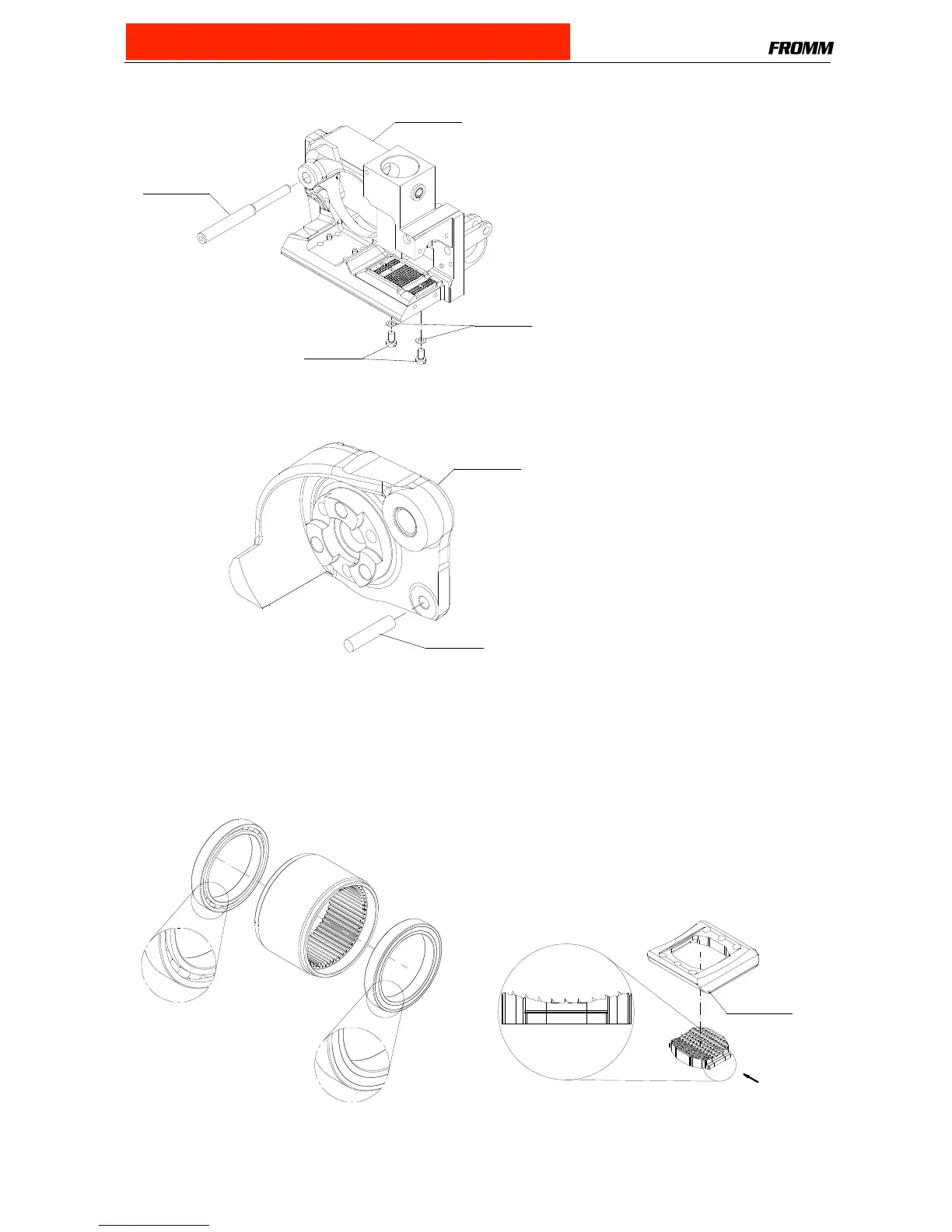

1.4.7 Assembly information
P32.8137
N1.1305
N1.6504
P32.8101
The bolt P32.8137 has to be glued into the
body P32.8101 using Loctite 603.
The screws N1.1305 have to be glued
with Loctite 222.
P32.8159
N2.2119
The parallel pin N2.2119 has to be
glued into the end cover P32.8159
with Loctite 603.
P32.8108
Grippers
One sided sealed bearings N3.1172 in the tensioning wheel.
The sealed side has to face to the outside. (see drawing)
When installing the grippers into the holder P32.8108
pay attention to the direction of the teeth (see drawing).
