9 EXCHANGE OF WEARING PARTS
Remove always the battery from the tool before starting maintenance works.
9.1 Exchange of tensioning wheel and grippers
Disassembling
• Unscrew end cover P33.0107 and remove it;
• Remove the torsion spring N2.5842;
• Remove the tensioning body P33.0106;
• Remove the tensioning wheel together with the bearing N31.1121 from the tool
;
• Unscrew the holders P33.1249 and P33.1250 and remove them from the tensioning body;
• Remove the grippers from the tensioning body.
Assembling
Assembling in opposite order. Observe the following:
• Lubricate the internal toothing of the tensioning wheel with Molykote BR 2 plus.
Observe the position of the tensioning wheel. The direction of rotation of the

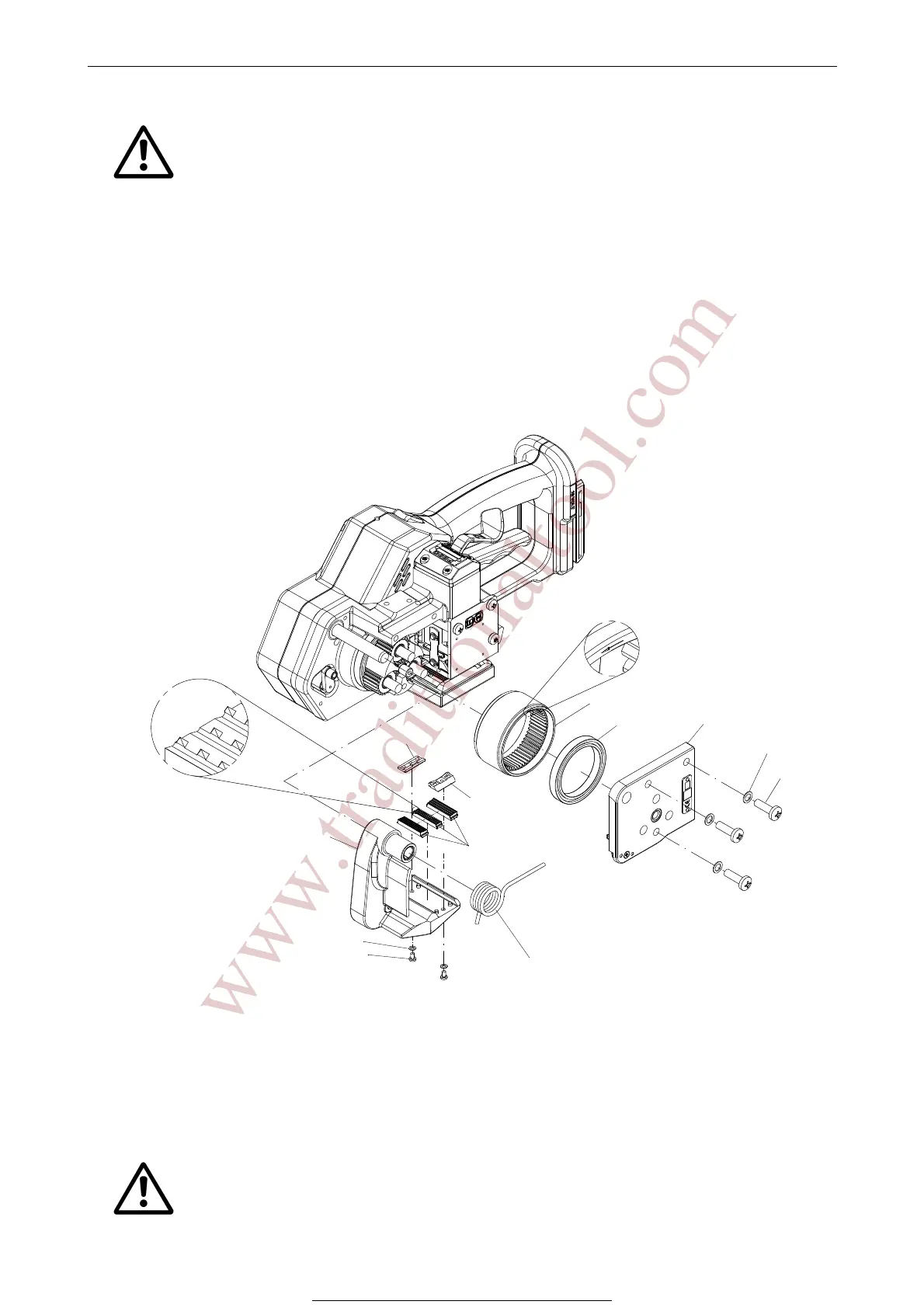

tensioning wheel is marked at the front of the tensioning wheel (see drawing).
Observe the position of the grippers (see drawing).
N31.1121
N2.5842
N1.1909
N1.6505
P33.0107
N1.1955
N1.6506
P33.0106
P33.1250
P33.1249
d Molykote BR2 plus
Tensioning wheel
d
Grippers
