4-14
P331 M_HA mane.fm

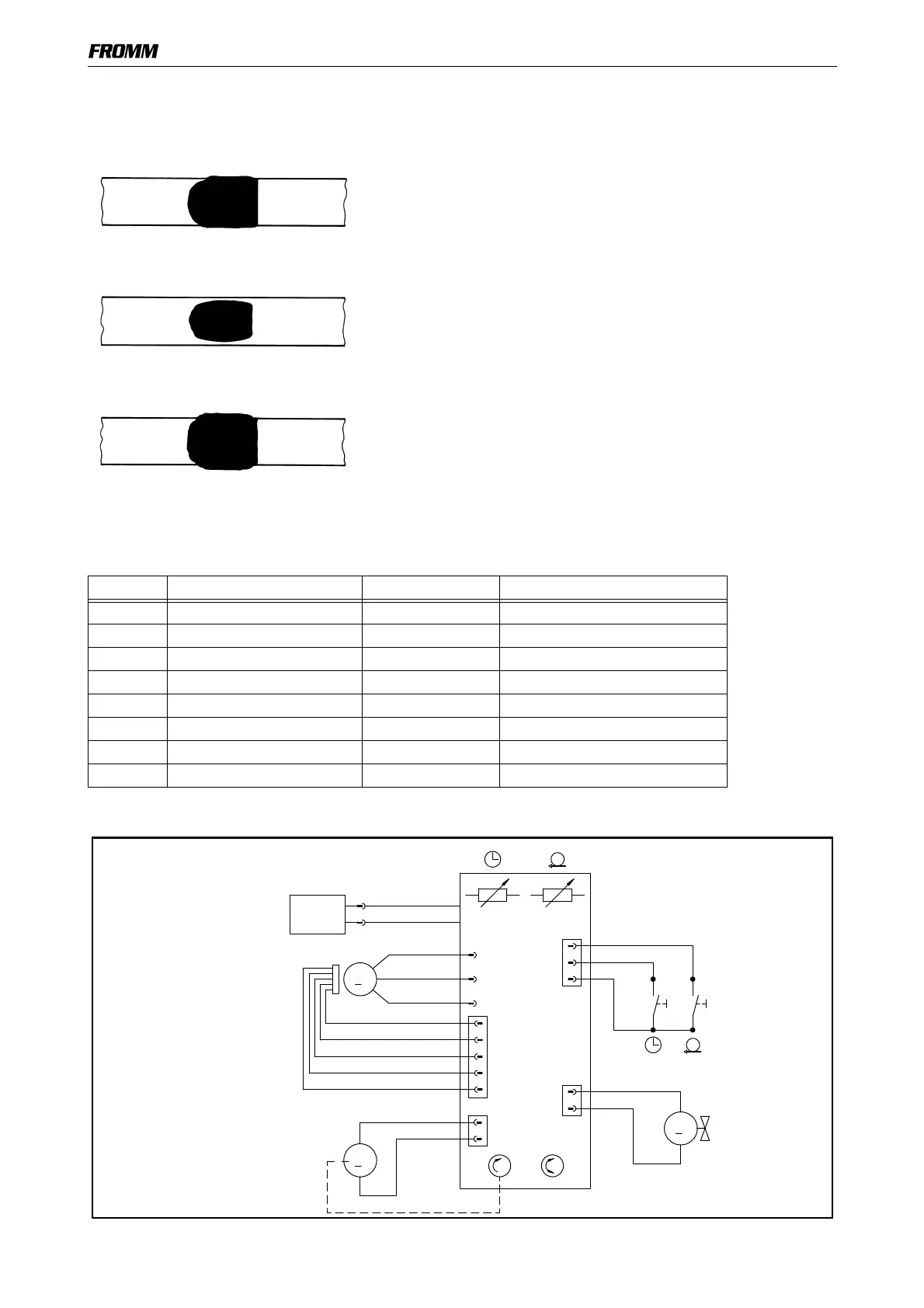

6.9 Seal - Control
A regular control of the seal is necessary. The seal can be examined visually.
Make a seal, peel it apart and examine it as follows:
Correct seal
The seal must be completely welded over the whole width of the strap
on a length of ca. 25 mm. Minor quantities of fused plastic may
overflow on sides.
Welding time too short
The plastic strap is not welded over the whole width of the strap. The
seal efficiency is insufficient.
Warning! Straps with insufficient seal strength must be removed from
the package! Adjust the welding time (see 6.2.2).
Welding time too long
If the welding time is too long the straps are overheated. The fused
plastic overflows on both sides of the straps. The seal efficiency is
affected.
Warning! Straps with insufficient seal strength must be removed from
the package! Adjust the welding time (see 6.2.2).
7 CHART OF TYPES P331 M/HA
8 ELECTRIC SCHEMATIC ELS.1084
Item No. Model Strap width Strap thickness
43.0274 P331/19/0.80-1.19/7.0 19.0 mm / 3/4" 0.80 - 1.19 mm / .031" - .046"
43.0276 P331/19/1.20-1.53/7.0 19.0 mm / 3/4" 1.20 - 1.53 mm / .047" - .060"
43.0282 P331/25/0.60-0.79/7.0 25.0 mm / 1" 0.60 - 0.79 mm / .023" - .030"
43.0284 P331/25/0.80-1.19/7.0 25.0 mm / 1" 0.80 - 1.19 mm / .031" - .046"
43.0286 P331/25/1.20-1.35/7.0 25.0 mm / 1" 1.20 - 1.35 mm / .047" - .053"
43.0292 P331/32/0.60-0.79/7.0 32.0 mm / 1 1/4" 0.60 - 0.79 mm / .023" - .030"
43.0294 P331/32/0.80-1.19/7.0 32.0 mm / 1 1/4" 0.80 - 1.19 mm / .031" - .046"
43.0296 P331/32/1.20-1.35/7.0 32.0 mm / 1 1/4" 1.20 - 1.35 mm / .047" - .053"
36VDC
-
blackblack
-
+
red
2
1
UB
2 1
M3
2
3
1
red
blue
1
2
(-)
(+)
M2
U
V
W
yellow
violett
brown
Hall3
Hall2
Hall1
GND
+5V
5
4
3
2
1
M1
2
1black
red
(+)
(-)
HA
M
Manual / 1/2 Auto
