4-15
P331 M_HA mane.fm
9 EXCHANGE OF WEARING PARTS
Remove always the battery from the tool before starting maintenance works.

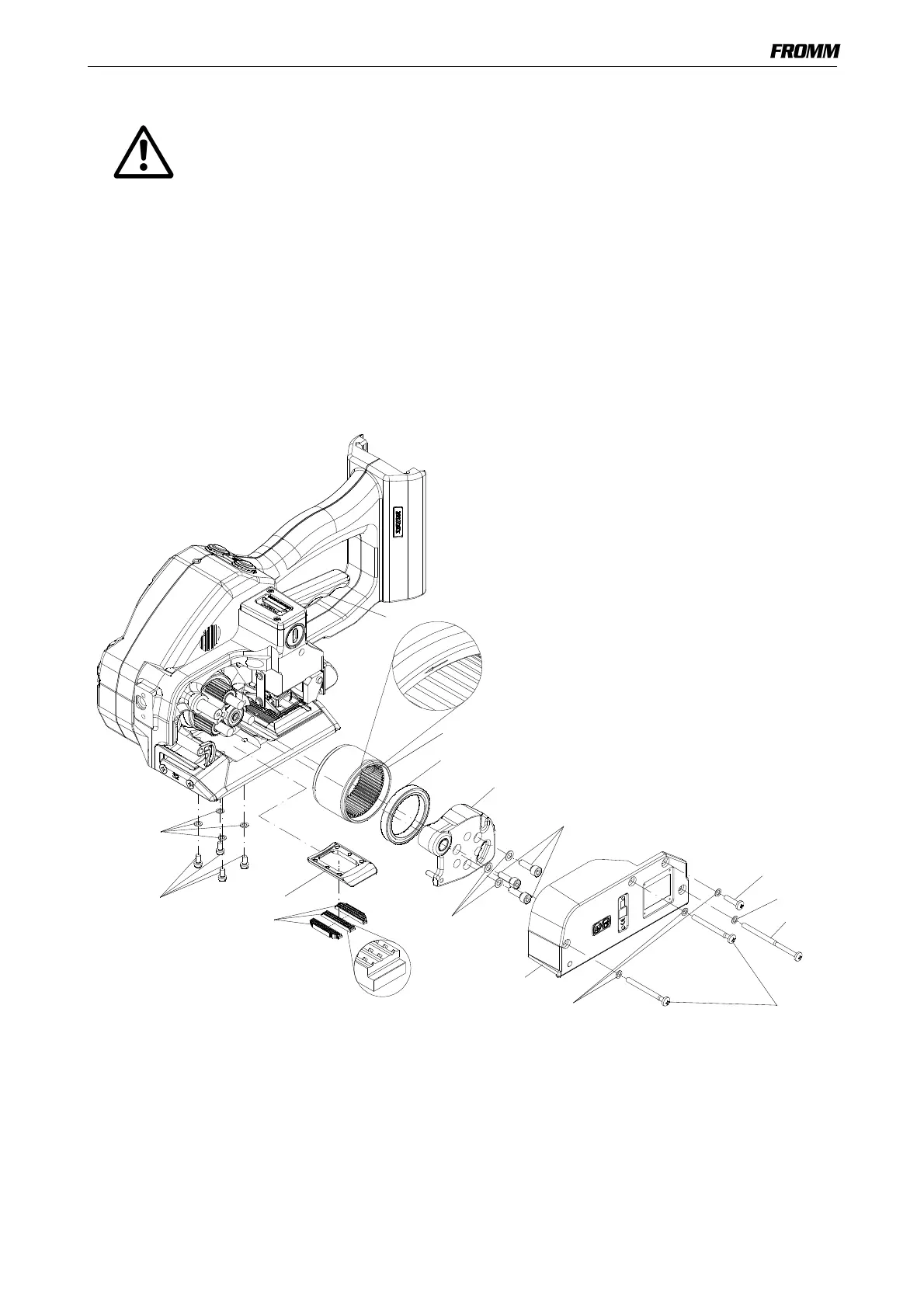

9.1 Exchange of tensioning wheel and grippers
Disassembling
• Unscrew cover P33.2143 and remove it;
• Unscrew end cover P35.0226 and remove it;
• Raise tension wheel by lifting the handle lever P33.2117;
• Remove the tensioning wheel together with the bearing N31.1148 from the tool;
• Unscrew the holder P35.4184 and remove it from the body;
• Remove the grippers from the body.
Assembling in opposite order.
Assembly advise
• Lubricate the internal toothing of the tensioning wheel with Molykote BR2 plus.
• Observe the position of the tensioning wheel. The direction of rotation of the tensioning wheel is marked at
the front of the tensioning wheel (see drawing).
• Observe the position of the grippers (see drawing).
• Safe the screws N1.1305 with Loctite 222.
N31.1148
Tensioning wheel
Grippers
N1.1305
N1.6504
P35.0226
N1.1924
N1.6503
N1.1919
N1.1168
P35.4184
Molykote BR2 plus
Loctite 222
P33.2143
P33.2117
N1.1965
N1.6504
N1.6504
